0 TRUMPF sheet metal punching nibbling and forming machines used machines

Punching capacity: 220 kN laser capacity in Watt: 4000 travel -x axis: 3050 mm travel -y axis: 1550 mm Cutting capacity structural steel: 8 mm Cutting capacity stainless steel: 8 mm Cutting capacity aluminum: 6 mm workpiece weight: 280 kg weight of the machine ca.: 24.000 kg dimensions: 10130 x 8898 x 2328 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

throat: 1100 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

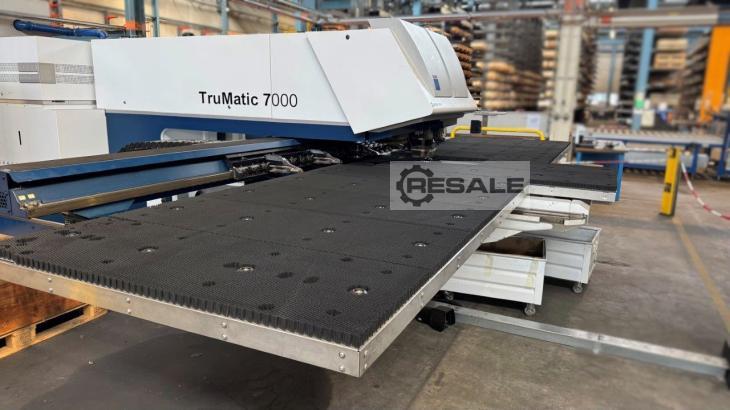

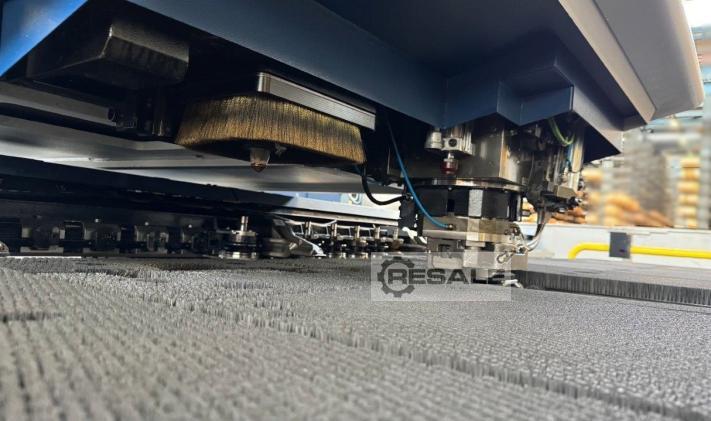

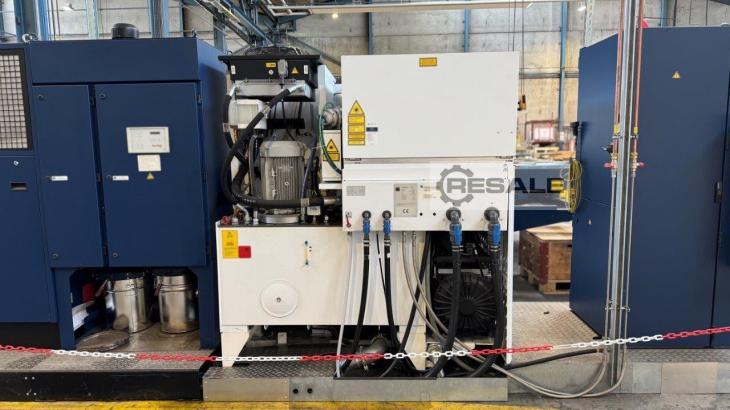

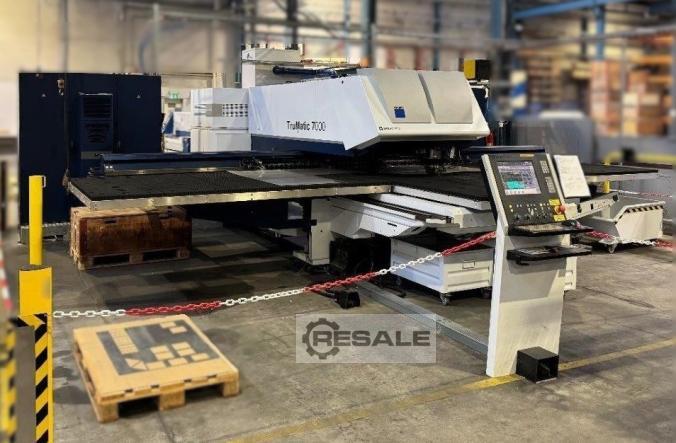

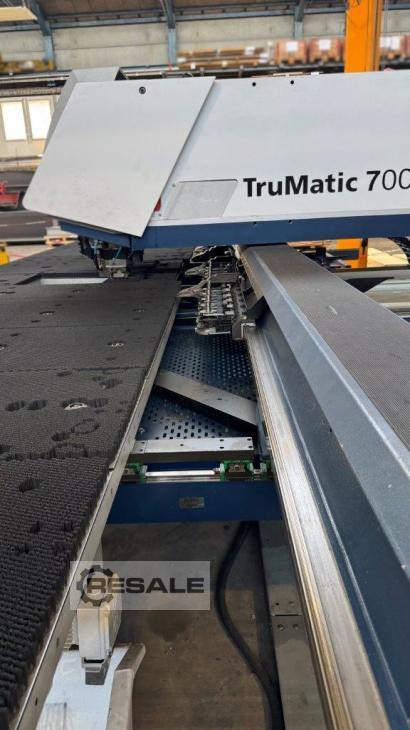

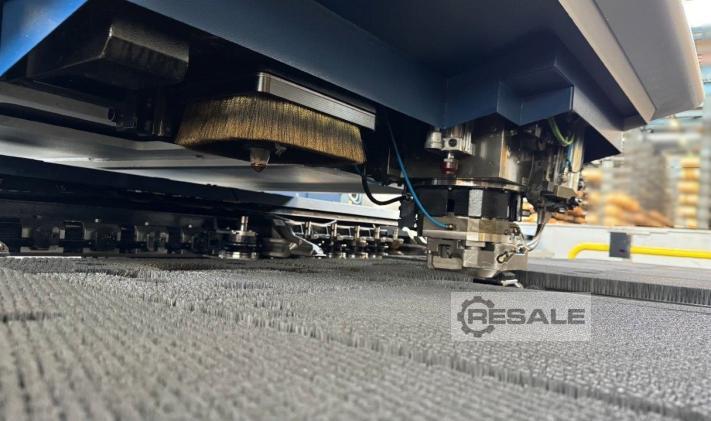

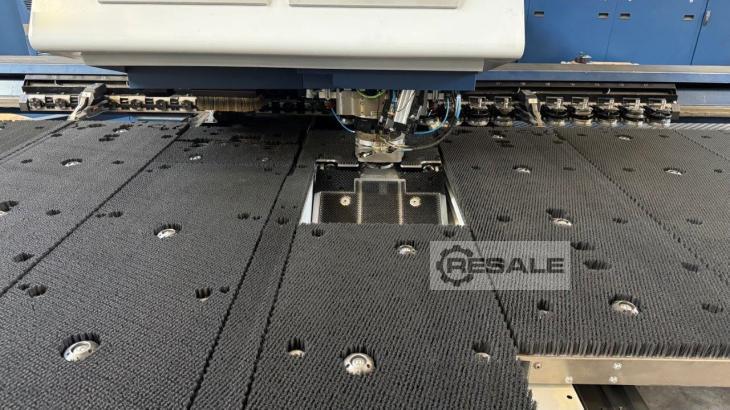

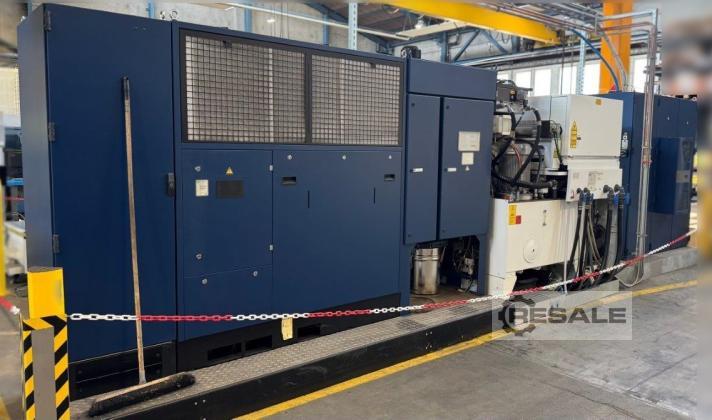

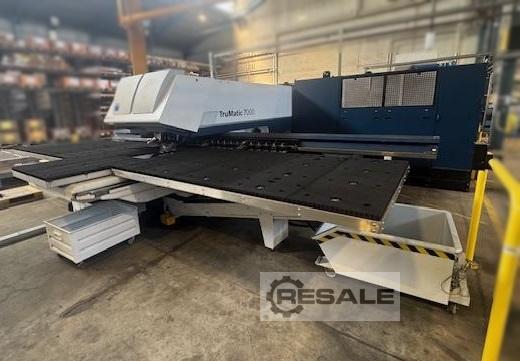

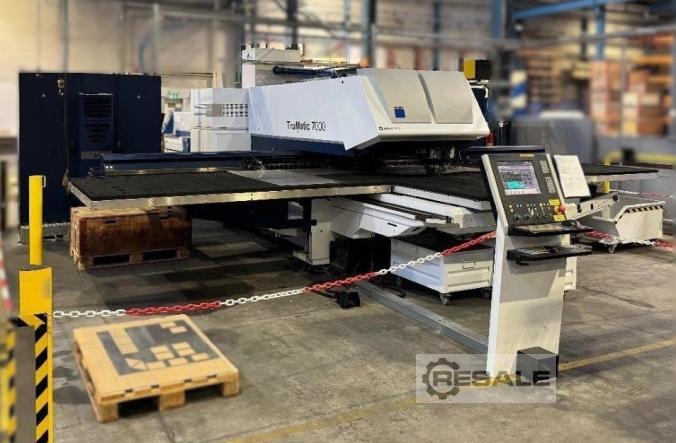

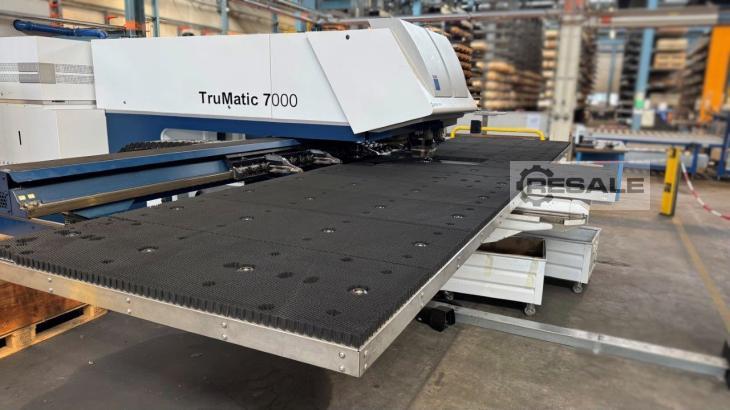

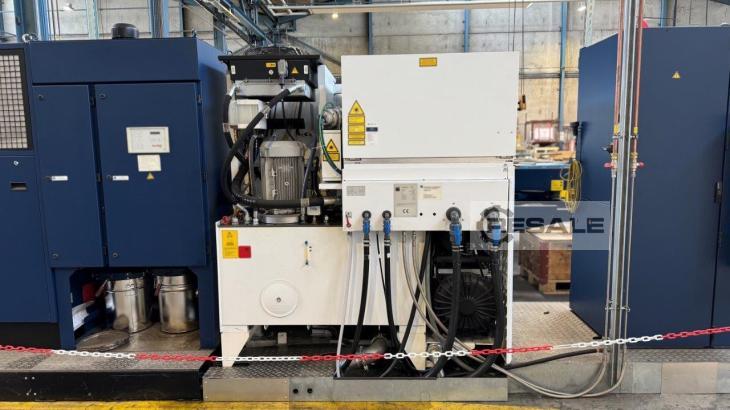

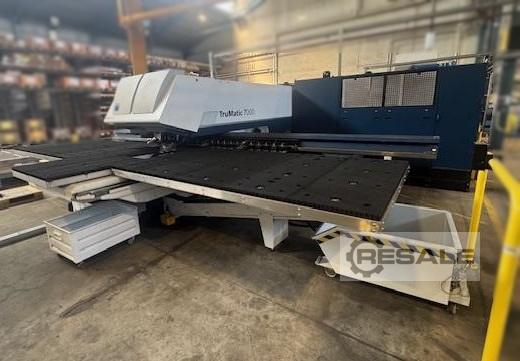

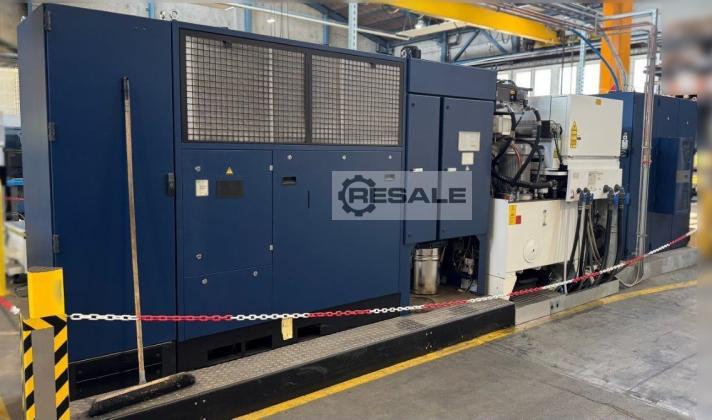

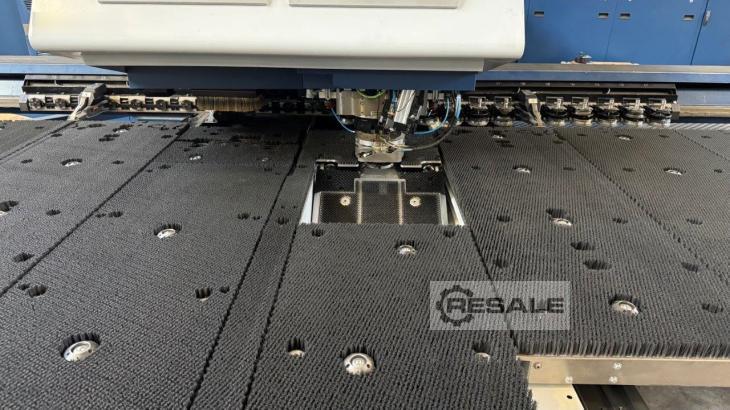

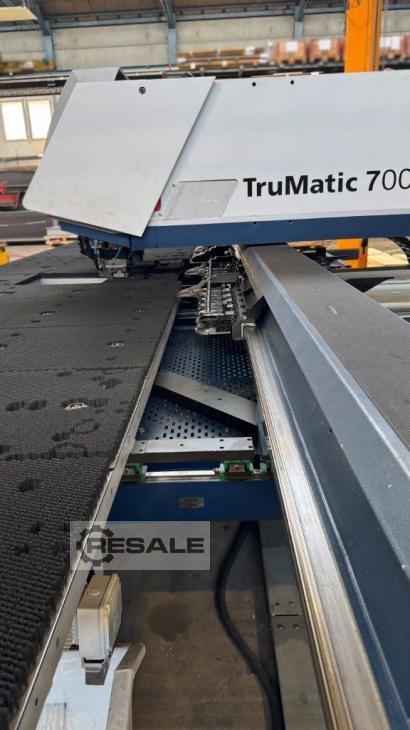

Punching Laser Machine Trumpf TruMatic 7000 Year of construction 2010 Rexroth IndraMotion MTX Controller Laser type: TruFlow 4000 Laser power: 4000 W Working Area:: Punching operation without repositioning: X 3,050 mm Punching operation: Y 1,550 mm Laser operation: X 3,050 mm Laser operation: Y 1,550 mm Combined operation: X 2,500 mm Combined operation: Y 1,550 mm Sheet thickness: max. 8 mm Workpiece weight: max. 280 kg Punching force: 220 kN X-axis speed: max. 100 m/min. Y-axis speed: max. 60 m/min. Simultaneous speed: max. 116 m/min. Maximum stroke rate:: Punching (E = 1 mm): max. 1,200 1/min. High Light: max. 3,000 1/min. Tools:: MultiTool tool change time: 0.3 sec. Number of tools/clamps: 21 /4 pieces Parts removal:: Workpiece size at the part removal flap (punching operation): 500 x 500 mm Workpiece size at the part removal ...

1250 x 2500mm TLF 2000w Laser STOPA Sheet storage, SheetMaster, ToolMaster, SortMaster Year: 2005

WE OFFER AN VERY NICE CONDITION TRUMATIC 5000R PUNCHING MACHINE WITH COMPLETE AUTOMATION 24000 WORKING HOURS ONLY MACHINE WILL BE AWAILIBLE IMEDIATELY

Key data: 220 kN, 8 mm, 3050 mm

Punching Laser Machine Trumpf TruMatic 7000 Year of construction 2010 Rexroth IndraMotion MTX Controller Laser type: TruFlow 4000 Laser power: 4000 W Working Area:: Punching operation without repositioning: X 3,050 mm Punching operation: Y 1,550 mm Laser operation: X 3,050 mm Laser operation: Y 1,550 mm Combined operation: X 2,500 mm Combined operation: Y 1,550 mm Sheet thickness: max. 8 mm Workpiece weight: max. 280 kg Punching force: 220 kN X-axis speed: max. 100 m/min. Y-axis speed: max. 60 m/min. Simultaneous speed: max. 116 m/min. Maximum stroke rate:: Punching (E = 1 mm): max. 1,200 1/min. High Light: max. 3,000 1/min. Tools:: MultiTool tool change time: 0.3 sec. Number of tools/clamps: 21 /4 pieces Parts removal:: Workpiece size at the part removal flap (punching operation): 500 x 500 mm Workpiece size at the part removal ...

Punching capacity: 165 kN working area: 2070 x 1280 mm plate thickness: 6,4 mm control: CC 220 workpiece weight: 150 kg punch diameter: 76,2 mm : 80 m/min : 55 m/min weight of the machine ca.: 8000 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Punching capacity: 220 kN plate thickness: 8 mm working area: 2535x1280 mm sheet thickness for stainless steel: 4-6 mm Accessories: -Setup cassettes -Table with ball rollers Youtube video link: https://www.youtube.com/watch?v=1RlPrkZPN0Y&ab_channel=BaestleinGmbH The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: 220 kN sheet thickness - max.: 8 mm travel -x axis: 2500 mm travel -y axis: 1250 mm : 90 m/min : 60 m/min : 108 m/min : 360 °/sec punch diameter: 76,2 mm workpiece weight: 150 kg : 0,01 mm bzw. 0,01° : 15 Stück tool changing time: 1,5 - 6,5 sec weight of the machine ca.: 11.050 kg dimensions: 6400 x 5800 x 2100 mm Working hours: 30.430 h The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet width: 2500 mm plate length: 1250 mm plate thickness: 8 mm Punching capacity: 220 kN Number of working hours: 51.658 h total power requirement: kW weight of the machine ca.: 11.050 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Punching force: 220 kN plate thickness: 8 mm sheet width: 3000 mm plate length: 1500 mm workpiece weight: 200 kg total power requirement: 9,5 kW dimensions of the machine ca.: 7395 x 6540 x 2072 mm Features: Punching head: - Hydraulic single-tool holder with 360° rotation - Manually adjustable holding force - Programmable holding mechanism (active/passive/re-tightening) - Spray lubrication for punch - Punch stroke counter - Level monitoring for thread forming and tool lubrication Control System: - Open control system based on Sinumerik 840 D - 12 TFT color display - Teleservice via the Internet - Automatic shutdown Data Transfer: - USB interface - RJ-45 network connection Safety: - CE marking - Dual-beam photoelectric sensors - Hydraulic emergency shutdown - Warpage detection Programming: - TruTrops Punch via network access 1 x MultiTool function 1 x MultiShear function 1 x Thread formi ...

Nibbling machine, nibbler, nibbler, tin snips, circular scissors -Power: 900 watts -Max. cutting capacity: 3.25 mm -Dimensions: 500/220/H230 mm -Weight: 5.5 kg

Servo Electric punching head Large format 3000 x 1500mm With Sheet Master & Duplex carts Year: 2015 Just under 19,000 hours! With tooling

Punching machine Trumpf TruMatic TC3000-1300 FMC Year of construction 2004 87500 hours (03.2021) In this case, the configuration : TruMatic TC3000-1300 FMC Year of construction 2004 Working range : 2550 x 1280 mm Standard: • Sturdy C-frame • Coordinate guidance with integrated linear magazine, 21 seats for tools and clamps • 2 clamps • Drives: Maintenance-free digital three-phase servo motors • Punching head: hydraulic system with closed control loop, hydraulic mono tool holder, 360° rotation for all Tools, automatic tool length compensation, programmable scraper movement • Programmable hold-down • Tool spray lubrication • Punch butt suction • Partial slide 500 x 500 mm • Control Bosch PNC-P, activity-oriented user interface, Online Help, Diagnostics, 3.5" Floppy Drive, RJ45 Network Connection • Graphics programming ToPs 2000 • ToP ...

Standard configuration Machine ? Stable C-frame for easy access ? Coordinate guide for high-precision machining ? Linear magazine, 3 clamps ? Maintenance free drives ? Repositioning device with programmable presser foot ? Parts chute 500 x 500 mm ? Good parts container ? Swarf bucket Cutting head ? Hydraulic punching head ? Single tool adapter ? 360? rotation of all tools ? Programmable presser foot ? Tool length compensation ? Spray lubrication for punches ? Vacuum slug removal ? Forming Control ? Open control system based on BOSCH ? Control panel with TFT colour screen 12.0? ? Program management ? Online-help ? Integrated technology data ? Diagnostic functions ? Teleservice Programming ? Machine-oriented shopfloor programming Data transmission ? Disc drive and network connection Safety ? CE marking ? Light barriers ? Rapid hydraulic shutdown Additional equipment ? Function Mul ...

Standard configuration Machine ? Stable C-frame for easy access ? Coordinate guide for high-precision machining ? Linear magazine with 17 tool stations, 2 clamps ? Drives with maintenance free 3-phase servo motors ? Repositioning unit with programmable stripper ? Ball tables ? Parts chute 180 x 150 mm ? Swarf bucket ? Punching head ? Hydraulic punching head ? Rotatable single tool adapter ? 360? rotation of all tools ? Programmable presser foot ? Tool length compensation ? Spray lubrication for punches ? Vacuum slug removal ? Forming Control ? Controller based on Bosch PNC-P ? Control panel with 15 TFT color touch screen ? Easy to use ? Online-help ? Integrated USB interface ? RJ 45 network connection ? Diagnostic functions Safety ? CE marking ? Light barriers ? Rapid hydraulic shutdown Additional equipment ? Function Multitool ? Function MultiShear ? Function Roller Technology ?  ...

Standard configuration ? Stable C-frame ? Coordinate guide with integrated linear magazine, 18 tool stations, automatic tool changer, 3 clamps ? Automatic parts chute 500 x 500 mm ? Parts container ? Drives: Maintenance-free, three-phase servo motors ? Programmable presser foot for repositioning ? Punching head: Hydraulic single tool adapter, 360? rotation of all tools, automatic tool length compensation, spray tool lubrication, 2nd lubricant container, programmable stripper movement, vacuum slug removal, swarf bucket ? Control: 32 bit microprocessor control TRUMAGRAPH CC 220 S, 10.4 color screen, programmable logic controller, easy to use, diagnostic functions, graphic programming TRUMAGRAPH, integrated 3.5 disk drive, RJ45 network connection ? Safety: CE marking, multi-beam light barriers, rapid hydraulic shutdown Additional equipment ? Function MultiTool ? Pneumatic repositioning  ...

Standard configuration ? Stable C-frame ? Coordinate guide with integrated linear magazine, 11 tool stations for tools and clamps ? Drives: Maintenance-free, digital three-phase servo motors ? Punching head: Hydraulic system with closed control loop, single tool adapter, 360? rotation of all tools ? Automatic repositioning device with programmable presser foot ? Vacuum slug removal ? Swarf bucket ? Brush tables ? Parts chute 200 x 200 mm and sorting of parts into 2 containers ? 2 parts containers ? Controller BOSCH Type 3, activity-oriented user interface, Online help, diagnostic functions, 3.5 disk drive, BNC/RJ45 connection, TFT color screen 10.4 ? Graphic programming ToPs 2000 ? Safety: CE marking, multi-beam light barriers, rapid hydraulic shutdown Additional equipment ? MultitShear ? MultiBend ? SoftPunch ? Table extension ? Start post

1250 x 2500mm with SheetMaster loading/unloading - Lots of tooling

TRUMPF TruPunch 3000-1300 (S11) punching machine was built in Germany in 2013. The reliable machine with extensive equipment and modern components offers its user unparalleled precision and accuracy in machining both thick and thin sheet metal. In addition to standard punching and marking, the punching machine also allows fast grooving, surface embossing, forming and chipless threading in stainless steel, structural steel and aluminium. On the machine’s sturdy and welded “C” shaped structure, sits a specially designed brush table with integrated balls, designed to facilitate the loading and unloading of workpieces. The use of this type of table prevents scratches and nicks from appearing on the surface of the sheet, which results in a significant increase in the quality of the machining. During the entire production process, the sheet is held rigidly by hydraulic clamps fixed to ...

WE ARE SELLING AN NICE CONDITION TRUMPF ROTATION. MACHINE IS READY FOR USE. MACHINE INCLUDES ALSO TOOL GRINDER AND EXISTING TOOLS FOR CUSTOMER WE ORGANIZE TRANSPORT AND DISMANTLING AS WELL

Table surface ... 3070x1660mm Nominal pressing force ... 18t Axis X ... 3070mm Axis Y ... 1660mm Max. sheet thickness ... 6.4mm Number of positions in the tool changer ... 22 Control Machine weight ... 14850kg L x W x H ... 7600x6700x2230mm The machine is in good condition, possible to test under power.

Inv. Num. : 7935 Type: Trumatic 2000 R Producer: Trumpf Created: 2003 Parameters: Compressive force: 18 t Maximum length of sheet metal plate: 2070 mm Maximum blade width: 1270 mm Maximum sheet metal plate weight: 75 kg Max. sheet thickness: 6.4 mm Maximum punching speed: 900 1/min Machine height: 2070 mm Machine length: 6000 mm Machine width: 5600 mm Machine weight: 8000 kg

Inv. Num. : 5955 Type: Trumatic 500 R Producer: Trumpf Created: 2003 Parameters: Control system: TRUMAGRAPH CC 220 S Switch-on hours: 29433 h Compressive force: 22 t Machine height: 2200 mm Machine length: 6900 mm Machine width: 5800 mm Machine weight: 11000 kg 2020: Replacement of hydraulic hoses

Make: TRUMPF Type: TRUMATIC 2000R Year of Make: 2001 Working area: 1270 x 1270 mm Punching force: 18 tons Max. sheet thickness: 6.4 mm Max. workpiece weight: 75 kg Max. punching diameter: 76 mm Max. speeds: 90/60/108 m/min Accuracy: +/- 0.1 mm Length: 5100 mm Width: 5800 mm Height: 2070 mm Weight: 9200 kg Accessories: TOPS 2000 CAM software, tool holder, Very good condition, only thin sheets
