Engine Lathes (Sliding, Surfacing And Screw Cutting Lathes) used for sale (300)

Turning length/ centre width 4m, Spindle inner diameter, Face Plate D 1000 m, Center height over support 360 mm, 2 Risings with roller jaw guide 1980 Retrofitted, Main spindle speed 215 - 355 rpm. Operations manual with circuit diagram, chip protection, Reversible steel holders, Supports have currently been overhauled, electric lock box, Weight approx. 15 tons, Guided tour possible, including attempted filming.

Technical data Manufacturer: Colchester Model: Mascot 1600 Machine Type: Lead and Pull Spindle Lathe Lead screw pitch: 6 mm Multi-stage speed selection, labeling visible up to 1,600 rpm Configuration 3-jaw chuck Fixed bezel Tailstock Tool Holder / Multiple Steel Holder Thread and feed tables on the machine Remarks The machine comes from a well-maintained company liquidation and was actively used in ongoing production until the end. Auction-ID: A7-49302-186

Guiding and pulling spindle lathe OPTIMUM "Optiturn 4210 V" With 3 axis digital display Year of Make: 2015 Spindle bore: 54 mm Center width: 1000 mm Center height: 200 mm Speed range: 30 – 3000 rpm Stepless speed with display With the following accessories: Multifix Tool Holder Coolant Setup Three-jaw chuck 0 200 mm Four-jaw chuck 0 250 mm Collet chuck complete with collets up to 0 32 mm Feed protection Chip protection with lighting Fixed Lynette 0 approx. 150 mm Moving Lynette 0 approx. 100 mm 4 Height Adjustable Machine Shoes 1 pc. Rotating centering tip Operating instructions

General Description Horizontal CNC turning center designed for precision turning, facing, drilling, boring and threading of cylindrical components. The machine is equipped with a hydraulic chuck, 12-station hydraulic turret and chip conveyor for efficient production machining. Technical Details Machine type: CNC turning center Horizontal CNC lathe 12-station hydraulic turret Hydraulic chuck Older monochrome CNC control Chip conveyor Coolant system Condition Used industrial condition. The machine appears complete with hydraulic chuck, 12-station turret, chip conveyor and coolant system. Operational status, spindle condition and CNC functionality have not been tested. Auction-ID: A7-49124-34

Tip height: 150 mm Center width: 760 mm Swivel Ø over bed/support slide: 300/165 mm Spindle bore: 32 mm Spindle holder, short taper according to DIN 55027: Gr. 5 Tailstock quill taper: MK 3 12 spindle speeds: 85 - 2000 rpm 48 feeds: 0.006 - 1.77 mm 48 metric thread pitches: 0.1 - 28 mm 58 Inch Thread: 75 - 2.5 Gg/" 19 module threads: 0.1 - 1.75 module 19 Diametrical Pitch Thread: 70 - 4 DP electr. Drive: 220/380 V, 1400 rpm, 2.2 kW Weight: 800 kg Space requirement: 1800 x 770 x 1300 mm

- Maximum distance between points approx. 1300 mm. - Turning on bed approx. 500 mm. - Flip on carriage approx. 240 mm. - Bed width 420 mm. - Bar pitch diameter approx. 50 mm. - 18 rotation speeds. - 3-jaw chainring, diameter 315 mm. - HEIDENHAIN 2-axis digital display. - Operating conditions of this machine: unchecked. Auction-ID: A7-48839-40

Tip height: 125 mm Center width: 800 mm Gr. turning Ø over bed/over carriage guide: 280/245 mm Spindle holder, thread according to DIN 800 Spindle bore: 24 mm Spindle speeds infinitely adjustable: 26 - 2000 rpm 36 longitudinal feeds: 0.019 - 0.528 mm Metric thread pitches: 0.25 - 6 mm 44 Inch Thread: 4 - 112 Gg/" electr. Connection: 380 V, 0.7/1.4 kW Space requirements: Weight approx.: 500 kg

VEB Heavy-Duty Industrial Lathe Type: Heavy-duty industrial lathe Manufacturer: VEB Großdrehmaschinenbau \"8. Mai\" (Germany) Year of manufacture: 1993 Distance between centers: 4000 mm Swing over bed: approx. 800 mm Swing over carriage: approx. 500 mm Spindle bore: approx. 80 mm Power supply: 3-phase, 380 V, 60 Hz Control voltage: 220 V Installed power: 13.5 kW Rated current: 28 A Functionality not tested This item is delivered loaded on truck. Dismantling and loading costs are specified as additional costs. Auction-ID: A1-49190-23

Year of manufacture 1980s/90s Technical data: Tip height: 185 mm Center width: 750 mm Turning diameter over bed: 370 mm Spindle bore: 36 mm Bed width: 250 mm Speed range: 38 - 1600 rpm Tailstock mount: MK 3 Quill stroke: 110 mm Dimensions (WxDxH), approx.: 1950 x 900 x 1200 mm Weight, approx.: 800 kg Equipment: - 3-jaw lathe chuck, brand: Röhm, ø 200 mm - Quick-change holder with 4 inserts - Bed stop - Chip tray

General Description Universal horizontal centre lathe manufactured by TOS, model E3N. Designed for precision turning, facing, boring, drilling and threading of cylindrical metal workpieces in toolrooms, maintenance workshops and general machining applications. Technical Details Manufacturer: TOS Model: E3N Machine type: Universal horizontal centre lathe 3-jaw self-centering chuck installed Tailstock Four-way toolpost Leadscrew Quick-change threading gearbox Flexible coolant nozzle Condition Used industrial condition. The machine appears complete with chuck, tailstock, four-way toolpost, leadscrew, quick-change gearbox and coolant system. Operational status, spindle condition and machining accuracy have not been tested. Auction-ID: A7-49124-33

Key data: 230 mm, 460 mm, 25 U/min

Optimum D460x1500 lathe – fully functional Description: For sale is a used Optimum lathe D460x1500, built in 2006/01. The machine is fully functional and ready for immediate use in the workshop and production. It is ideal for turning medium-sized metal and steel parts. Technical data: Manufacturer: Optimum Model No.: D460x1500 Year of construction: 2006/01 Circumferential diameter over bed: 460–465 mm Circumferential diameter over upper slide: 270 mm Circumferential diameter without bed bridge: 690 mm Center width: 1500 mm Tip height: 230 mm Bed width: 300 mm Spindle bore: 58 mm Spindle cone: MK 6 Spindle mount: Camlock ASA D1–6 Speed range: 25 – 2,000 rpm⁻¹ Longitudinal feed: 0.031 – 1.7 mm/rev Transverse feed: 0.014 – 0.784 mm/rev Thread metric: 0.1 – 14 mm Thread imperial: 1/2 – 2 gears/inch Motor power ...

Professional Industrial Machine Digital display 3-jaw chuck 200 mm. 4-jaw chuck Face Plate Fixed bezel Steady bezel Multifix steel holder. Machine Light Foot brake Chip tray, Chip protection wall Hardened and ground bed sheets Complete coolant system Feed protection Machine feet Machine Tool Turning diameter over bed 400 mm Turning diameter over support 260 mm Turning length 1500 mm Turning diameter in the offset 570 mm Speed 45 - 1800 rpm Tip height 210 mm Spindle bore 52 mm Tailstock quill holder MK 4 Connection voltage 400 V Total power requirement 3.5 kW Machine weight approx. 1.5 t Dimensions approx. 2.6 x 1.1 x 1.7 m Auction-ID: A7-49782-424

Offer 24204 Technical data: - Largest turning diameter over bed 420 mm - Center width 1000 mm - Spindle bore mm - Mounting cone of the tailstock quill MK 4 - Travel of the tailstock quill 200 mm - Spindle speeds 40 - 2000 rpm - Feeds longitudinal + flat - Metric thread pitches - Inch thread - Module thread - Drive 400 V - with: - 3 jaw chucks - SWS steel holder with 3 inserts - Space requirement approx. W 2800 x H 1250 x D 950 mm - Weight approx. 2200 kg

Heidenreich & Harbeck VDF Hamburg conventional centre lathe with chuck, toolpost, tailstock, long bed, lead screw/feed shaft and work light. Heavy-duty machine for shafts and general turning work. Auction-ID: A1-49190-61

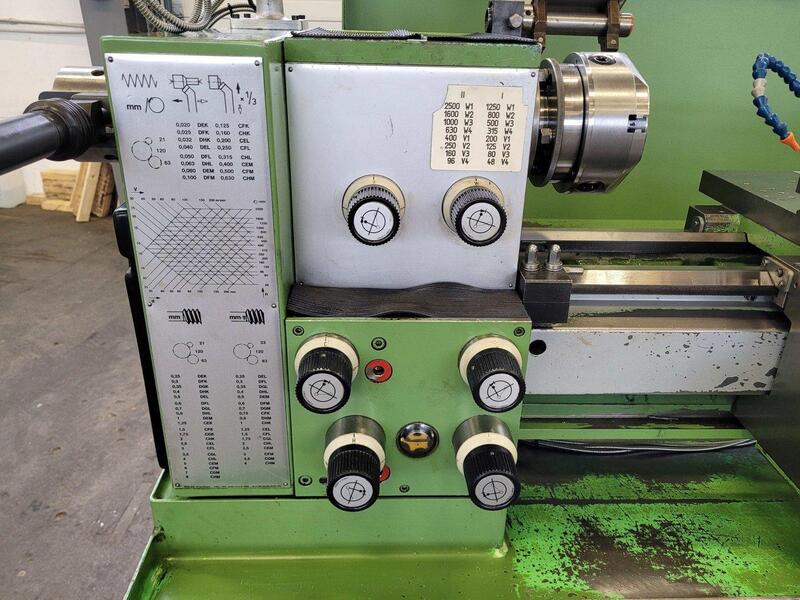

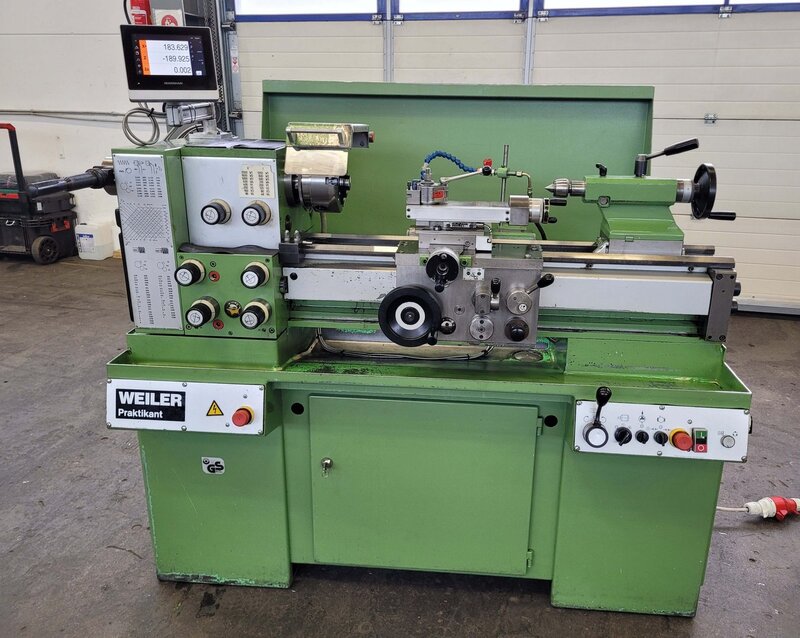

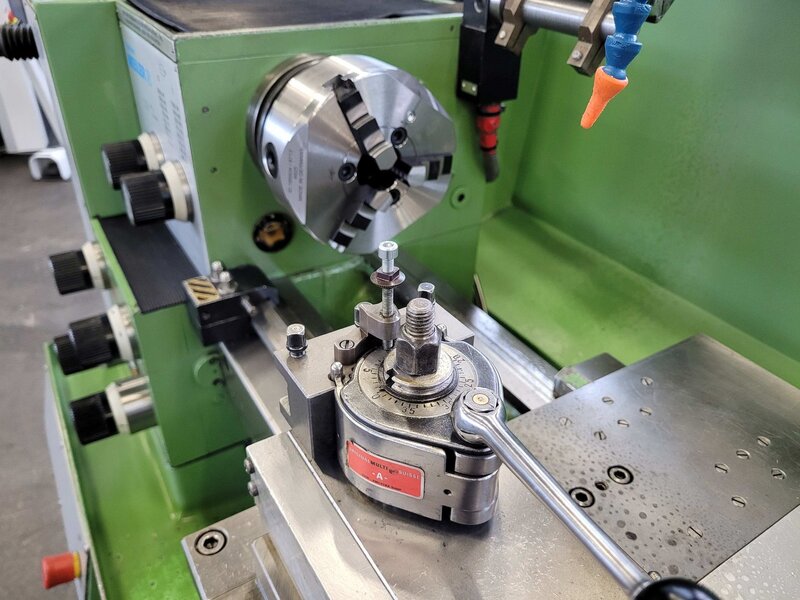

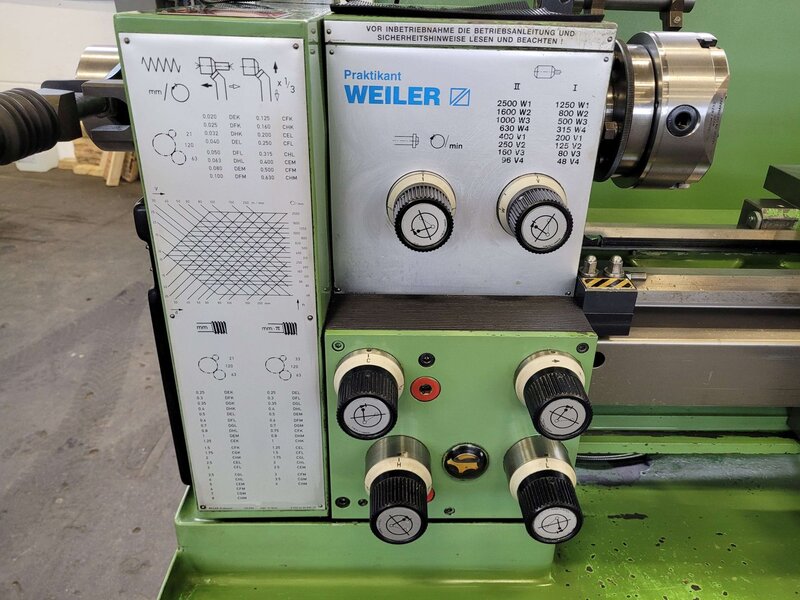

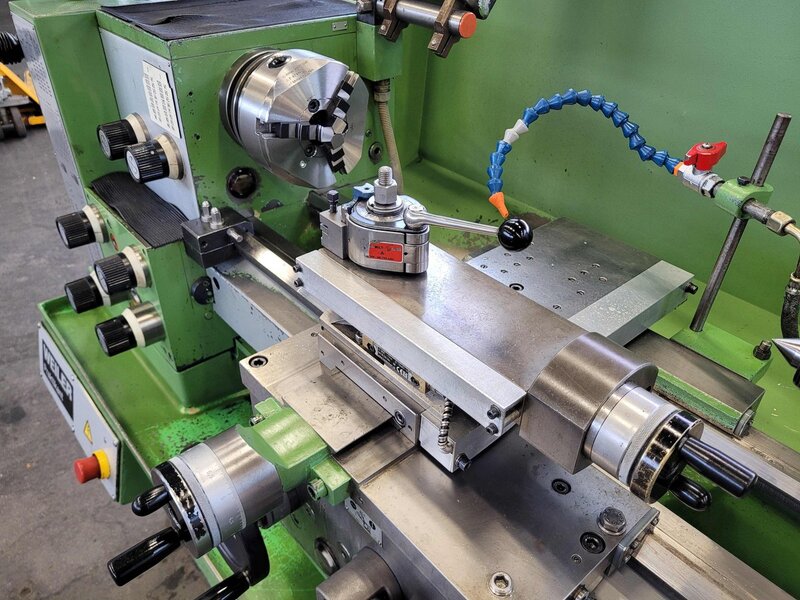

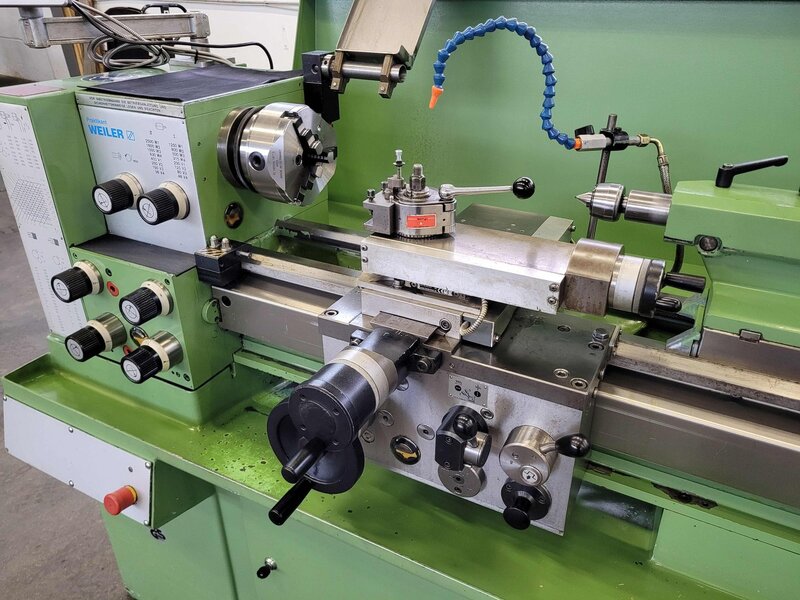

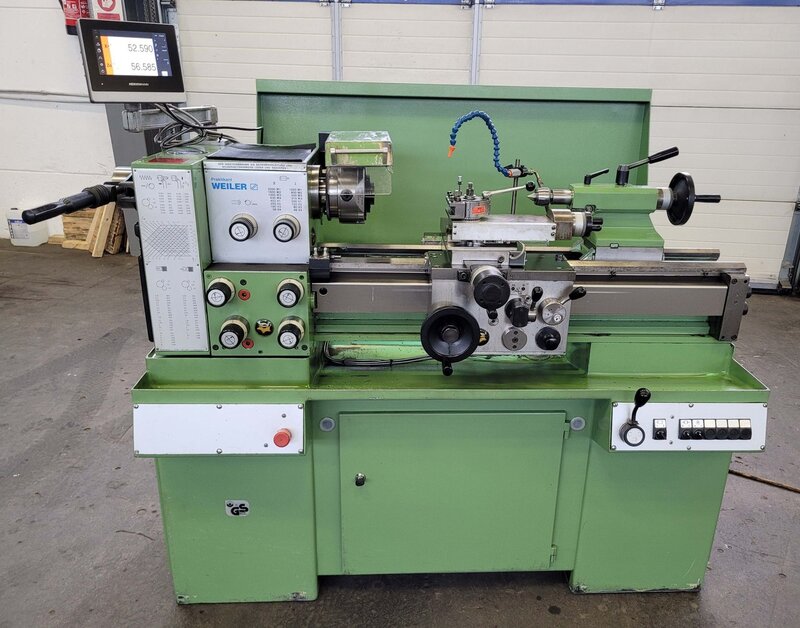

L+Z Lathe WEILER Praktikant 160 – Partially Overhauled Machine in very good used condition – delivery on order, delivery time by arrangement! ✅ Technical data Year of construction: approx. 1990 Digital Display: 3-Axis (NEW) Max. turning diameter over bed: approx. Ø 320 mm Max. turning diameter via support: approx. Ø 198 mm Max. turning length: approx. 650 mm Bar passage: approx. Ø 40 mm Spindle speed: 96 – 2500 rpm Spindle nose: A 2 - 5 Drive power: approx. 2.2 kW Threading: Metric, Inch, DP, Module Tailstock: MK 3 Dimensions (LxWxH): approx. 1700 x 1000 x 1700 mm Weight: approx. 650 kg ✅ Accessories 3-jaw chuck 160 mm (NEW) Quick-change steel holder + 1 insert Electric Lining Guard (NEW) Work light (NEW) Complete machine documentation Emergency stop Various tension wrenches Coolant Setup L+Z Spindle  ...

Auction-ID: A1-49382-21

Digital Center height 150 mm Circulation over bed 300 mm Center width 1000 mm 3-jaw chuck, Arbor Chip protection Chip tray

Serial number: 109640Power: 8 kWVoltage: 400 VFrequency: 50 Hzincl. digital display ACU-RITEincl. tailstock, Multifix grain holder and three-jaw chuck, diameter: approx. 310 mmCenter height: 330 mmCenter width: 3000 mmCenter height in offset: 435 mm Bridgelength: 240 mmSpindle bore: 82 mmMax. torque: 1500 NmSpinde speed: 9 - 1600 rpmTop slide travel: 145 mmCross slide travel: 310 mmTool Dimensions: 25 x 25 mmTailstock Cone: MK 5Quill Diameter: 75 mmQuill Travel: 150 mmReference: Wowi - Lot 67 Auction-ID: A7-49056-192

Weiler Commodor – lead and pull spindle lathe (partially overhauled, built approx. 1990) Condition: Partially overhauled, very good general condition Year of construction: approx. 1990 Manufacturer: Weiler Model No.: Commodor Machine Type: Lead and Pull Spindle Lathe Technical data (approx. information): Max. turning diameter over bed: 380 mm Max. turning diameter over support: 190 mm Max. turning length: 1000 mm Bar Passage: 56 mm Speed range: 25 – 2000 rpm Spindle Nose: A2-6 Drive power: 4.0 kW Tailstock: MK4 Automatic longitudinal and flat feeds: 0.011 – 0.80 mm/rev Thread ranges: Metric: 0.3 – 10 mm Inch: 80 – 2 3/4 G/" Diametrically Pitch: 80 – 5.5 Dp Module: 0.2 – 5 Dimensions (L x W x H): 2200 × 1200 × 1800 mm Weight: approx. 1500 kg ⚙️ Equipment & Accessories: 3-Axis Digital Display SINO (New)  ...

Cazeneuve HBX 360 precision conventional centre lathe with chuck, toolpost and tailstock. Well-known toolroom lathe; used condition with visible wear. Full specifications to be confirmed. Auction-ID: A1-49190-43

Offer 25432 Specifications: - Turning diameter 320 mm - Center width 750 mm - Largest turn – Ø over bed 550 mm - via flat slide 175 mm - Spindle bore 32 mm - Spindle holder - Pick-up cone of the tailstock quill MK 3 - Quill stroke 180 mm - 18 spindle speeds 85 - 2000 rpm - Feeds longitudinal + flat - Metric thread pitches -Thread - Module thread - Diametrical Pitsch thread -Arbor - Cheek chuck -Lunette - Drive 400 V / 2.2 kW - Space requirement approx. W 2100 x D 750 x H 1300 mm - Weight approx. 750 kg

Lead and pull spindle lathe Three-jaw chuck 200mm Multifix Steel Bracket Size B 3 Multifix cassettes Emergency Stop Facility Turning diameter over bed 370 mm Turning diameter over support 200 mm Turning length 1000 mm Center height 185 mm Spindle bore 56 mm Tailstock quill holder MK 4 Speed 50 - 2000 rpm Drive power 4.0 kW Machine weight approx. 1.4 t Dimensions approx. 2.3 x 1.1 x 1.3 m Auction-ID: A7-49782-403

Tip height: 355 mm Center width: 3000 mm large circulation Ø over bed/recess/bed slide: 715/790/520 mm Spindle bore: 86 mm Spindle holder according to DIN 55027: Gr. 11 Tailstock quill taper: MK 5 21 spindle speeds: 5.6 - 560 rpm 42 feeds longitudinal/flat: 0.09 - 5.6/0.045 - 2.8 mm 22 Whitwort Thread: 2 - 28 Gg 28 metric thread pitches: 1 - 14 mm 27 module thread pitches: 0.25 - 3.5 module 32 module threads: 4 - 56 module 32 Diametrical Pitch Threads: 8 - 112 DP Drive motor, pole-switchable: 380 V, 7/11 kW Weight approx.: 7 t Approx. space requirement: 6000 x 2300 mm

3-axis digital display 3-jaw chuck 200 mm. 4-jaw chuck 200 mm. Face Plate 320mm Fixed bezel Steady bezel 4-fold steel holder. Halogen Machine Light Machine Light Foot brake removable chip tray, Chip protection wall Hardened and ground bed sheets Complete coolant system Feed protection Machine Tools Turning diameter over bed 400 mm Turning diameter over support 264 mm Turning length 1000 mm Turning diameter in the offset 550 mm Speed 44 - 2000 rpm Center height 200 mm Spindle bore 52 mm Tailstock quill holder MK 4 MK Connection voltage 400 V Total power requirement 1.5 / 2.4 kW Machine weight approx. 0.9 t Dimensions approx. 1.9 x 0.8 x 1.56 m Condition: never used / new (5) Auction-ID: A7-49782-514

Specifications: Tip height: 140 mm Turning length: 500 mm Accessories (included): Lunette Multifix "A" Collets 0.5 – 24 mm Milling device (Y-axis) 3-jaw chuck 125 mm Cs Urh Axexlr Hkszorh Face Plate 260 mm Running tip Chuck Die stock 4-jaw chuck Coolant pump Instruction manual (German)

Professional lathe 3-jaw chuck 4-jaw chuck Face Plate Fixed bezel Steady bezel Quick-change steel holder with 4 cassettes Halogen Machine Light Chip tray, Chip protection wall Hardened and ground bed sheets Complete coolant system Feed protection Machine Tools Turning diameter over bed 320 mm Turning diameter over support 200 mm Turning length 900 mm Speed 75 - 2000 rpm Tip height 160 mm Spindle bore 50 mm Tailstock quill mount MK 3 Connection voltage 230 V Total power requirement 1.5 kW Machine weight approx. 0.29 t Space requirement approx. 2.0 x 0.8 x 1.56 m Condition: never used / new (5) Auction-ID: A7-49782-498

Tip height: 195 mm Center width: 1250 mm large recirculating Ø over bed/support slide: 400/265 mm Spindle Holder/Bore: Camlock D1-6"/54 mm Tailstock quill taper: MK 5 Spindle speeds infinitely variable in 3 groups: 0 - 2500 rpm Feeds longitudinal: 0.018 - 1.2 mm Feed plan: 1/2 of the longitudinal feeds 51 metric thread pitches: 0.2 - 14 mm 56 Inch Thread: 2 - 56 Gg/" 20 module threads: 0.2 - 3.5 module 20 Diametrical Pitch Threads: 8 - 56 DP electr. Connection: 400 V, 7.5 kW Weight: 1500 kg Space requirement: 2500 x 1300 x 1300 mm

Serial number: 0577Voltage: 400 VFrequency: 50 HzTip height: 280 mmDistance between tips: 2000 mmCirculation diameter over bed: 560 mmCirculation diameter over cross slide: 390 mmRotation diameter in offset: 810 mmSpindle bore: 80 mmSpindle holder: MK 7Centering tip holder: MK 5Spindle speed: 20 - 1600 rpmMotor power: 7.5 kWBed width: 345 mmBed length: 2650 mmTravel cross slide: 265 mmtravel upper slide: 135 mmTravel tailstock: 180 mmDiameter tailstock quill: 75 mmDiameter lead screw: 35 mmPitch lead screw: 6 mmincl. two-axis digital display, manufacturer EASSON, type: ES-8, as well as three-jaw chuck, diameter: approx. 400 mmwith Multifix base holder and tailstock and an additional steady rest and a side cabinet with stock of turning steels, turning steel holders, reducing sleeves and other clamping jawsReference: Wowi - Lot 40 Auction-ID: A7-49056-188

Key data: 165 mm, 330 mm, 2800 U/min

WEILER Condor lead and pull spindle lathe (overhauled) Circumferential diameter over bed 300 mm Center width 800 mm Turning diameter over carriage 170 mm Gr. workpiece weight between the tips 100 kg Bed width 240 mm Spindle bore 38 mm Spindle speeds 24 - 2800 rpm Spindle motor 3 KW Z-travel 800 mm X-travel 170 mm Z1-travel 100 mm Lead screw diameter 24 mm Thread pitches: 35 Metric 0.35 - 12 mm 40 Witworth 2 - 45 Gg / " 25 Module 0.2 - 4 Module 32 Diametrical Pitch 5 - 90 D.P. Tailstock quill stroke 110 mm Tailstock quill diameter 50 mm Tailstock quill cone 3 MK 2-axis digital display 3-jaw chuck Multifix holder B with 8 cassettes Rotating grain tip Tailstock Thread Device: Metric, Witworth, Module, Diametral Pitch Geometrically outdated!

Lead and pull spindle lathe - 4-jaw chuck 200mm - Multifix steel bracket size B - Foot brake - Chip tray Turning diameter over bed 420 mm Turning diameter over support 290 mm Turning length 900 mm Speed 40 - 2000 rpm Tip height 210 mm Spindle bore 38 mm Total power requirement 4.0 KW Machine weight approx. 0.9 t Space requirement approx. 2.4 x 1.1 x 1.3 m Condition: unchecked (6) Auction-ID: A7-49782-499

Tip height: 175 mm Center width: 800 mm Circumferential diameter over bed: 350 mm Circumferential diameter over support: 310 mm Spindle bore: 46 mm Speed range: 25 - 2000 rpm With digital display

3-jaw chuck 200mm 4-fold steel holder Turning diameter 350mm Turning diameter via support 210 in offset 500mm Turning length 1000mm Speed 20 - 1400rpm Spindle bore 36mm Motor 2.0 KW Weight 600Kg Dimensions 2.2 x 1.0 x 1.5m Auction-ID: A7-49782-493

Make: Colchester Type / Model: Student Center width: 500 mm Passage: 42 mm Tip height: 175 mm Turning diameter over bed: 350 mm over slides: 200 mm Speed range: 34 to 1,500 mm Feed lengthwise: flat: 0.04 to 0.25 mm/rev Connection: 1.1 / 2.2 kW Accessories: Steel holder, 3-jaw chuck, 4 jaw chucks, steel bracket Weight: approx. 800 kg Dimensions: 1,550 x 900 x 1,200 mm

Professional lathe Digital display 3-jaw chuck 4-jaw chuck Face Plate Fixed bezel Steady bezel Quick-change steel holder with 4 cassettes Halogen Machine Light Chip tray, Chip protection wall Hardened and ground bed sheets Complete coolant system Feed protection Machine Tools Rotating center punch Turning diameter over bed 320 mm Turning diameter over support 200 mm Turning length 900 mm Speed 75 - 2000 rpm Tip height 160 mm Spindle bore 50 mm Tailstock quill holder MK 3 MK Connection voltage 230 V Total power requirement 1.5 kW Machine weight approx. 0.29 t Space requirement approx. 2.0 x 0.8 x 1.56 m Condition: never used / new (5) Auction-ID: A7-49782-442

Lead and pull spindle lathe WEIPERT Year of Make: 1956 Spindle bore: 90 mm Center width: 3000 mm Circulation Ø over bed : 800 mm Circulation 0 over slide: 610 mm Circulation 0 in offset: 1120 mm Speed range: 7.5 – 475 rpm With the following accessories: Multifix tool holder with 11 inserts Coolant Setup Three-jaw chuck 0315 mm Three-jaw chuck 0 400 mm Three-jaw chuck 0 500 mm Face Plate 0 400 mm Face Plate 0 800 mm Face Plate 0 1000 mm Running Lynette Various turning tools (30 pcs. indexable insert tools) 2 moving centering tips 1 drill chuck Operating instructions

SINO Digital Display 3-jaw chuck 200 mm. 4-jaw chuck 200 mm. Face Plate 250mm Fixed bezel Quick-change steel holder with 4 pcs steel holder Machine Light Chip tray, Chip protection wall Hardened and ground bed sheets Feed protection Machine Tools Turning diameter over bed 320 mm Turning diameter over support 200 mm Turning length 900 mm Turning diameter in the offset 320 mm Speed 75 - 2000 rpm Tip height 160 mm Spindle bore 38 mm Tailstock quill mount MK 3 Connection voltage 400 V Total power requirement 1.5 kW Machine weight approx. 0.4 t Space requirement approx. 1.6 x 0.75 x 1.7 m Condition: never used / new (5) Auction-ID: A7-49782-500

This offer is aimed exclusively at entrepreneurs within the meaning of § 14 BGB. The price is net plus 19% VAT. Manufacturer: EST Ticino Type: ET-BM 400 Turning length: 1500 mm Turning diameter bed Ø: 800 mm Turning diameter slide: 470 mm Turning diameter pit Ø: 400 mm Pit length: 750 mm Spindle bore: 130 mm Power spindle: 15 kW Bed width: 600 mm Quill: 130 Ø Stroke quill: 300 mm Spindle mount: 6 Mk Speed: 600 rpm Dimensions (estimated) Length: 4500 mm Width: 1800 mm Height: 1800 mm Weight: 5200 kg with accessories: -Safety equipment - Face plate, four-jaw chuck, clamping jaws, tool holders, tips, drill chucks, tools All information is made to the best of our knowledge, errors excepted. The sale is subject to exclusion of any warranty. The exclusion does not apply to claims for damages arising from grossly negligent or intentional breach of the S ...

Guide and tension spindle lathe machine - Forkardt-3 jaw chuck F 315 - Single steel holder - Bezel - Moving center punch - Feed protection, Limit switch monitored - Chip tray Turning diameter over bed 600 mm Turning diameter over support 400 mm Turning length 1000 mm Turning diameter in the offset 850 mm Speed 15 - 810 rpm Center height 300 mm Spindle bore 56 mm Total power requirement 9.0 KW Machine weight approx. 2.9 t Dimensions approx. 2.8 x 1.45 x 1.65 m Auction-ID: A7-49782-417

Key data: 180 mm, 2000 U/min

Built in 1990 Center height 180 mm Turning diameter over carriage 190 mm Center width 1,000 mm Spindle passage 55 mm Max. spindle speed 13-2,000 rpm Spindle drive 7.5 kW Quill stroke 150 mm (MK4) Machine weight 1,650 kg Accessories: Digital display, 3-jaw chuck, quick-change steel holder with 4 inserts, 2 steady rests, coolant device.

Cegonheira conventional centre lathe with chuck, toolpost, tailstock and screwcutting gearbox. Used industrial lathe; centre distance, spindle bore and operation to be confirmed. Auction-ID: A1-49190-17

Tip width: 430mm Tip Height: 120mm Spindle bore: 23mm Spindle speeds: 60-3000 RPM Short taper spindle head DIN 4 Tailstock MK2 Feeds from 0.03 to 2.5 mm Weight approx. 360 kg New Aikron 3-axis digital display, brake of spindle motor renewed, technically checked. Accessories: Collet device, lathe chuck Quick-change steel holder

including pallet with accessories Auction-ID: A1-49000-22

Center distance 5,000mm Height of the tips 600mm 105mm bar passage carriage equipped with grinding Machine in very good condition

Technical details Manufacturer: ZMM Sliven Model: C500 (Type 500) Type: Centre lathe Configuration: - Geared headstock - Large 4-jaw independent chuck - Manual quick-change gearbox - Leadscrew and feed rod - Carriage with cross slide and compound rest - 4-position toolpost - Tailstock - Electrical control cabinet - Manual controls Application: - Turning - Facing - Boring - Thread cutting - General metalworking Construction: - Heavy-duty cast-iron machine frame - Conventional manual operation Estimated swing over bed: Approx. 500 mm Estimated distance between centres: Approx. 1500–2000 mm Dimensions: - Length: Approx. 3000 mm - Width: Approx. 1100 mm - Height: Approx. 1450 mm Weight: Approx. 2500 kg Condition: Used Observed condition: - Machine appears substantially complete - 4-jaw chuck installed - Tailstock, carriage and gearbox present - Electrical cabinet installed (door detached/o ...

Center distance 11,000 mm Turning diameter 730 mm Drill height 500 mm turnable on the bench 1050 mm Motor power 22 kW

Auction-ID: A1-48649-19

Offer 24177 Specifications: - Tip height 180 mm - Center width 1000 mm - larger circulation – Ø over bed 355 mm - via flat sleds approx. 200 mm - Spindle bore 36 mm - Pick-up cone of the tailstock quill MK 5 - Travel of the tailstock quill 260 mm - Spindle speeds 18 - 1800 rpm -Feeds - Travel of the cross slide approx. 200 mm - Travel of the upper slide approx. 115 mm - Drive 400 V / 5.8 kW - with: - Tailstock, 3-jaw lining, bezel - Steel holder, moving center punch, - Chip tray - Space requirement approx. W 2500 x H 1500 x D 1200 mm - Weight approx. 2100 kg

Auction-ID: A1-48648-47

Tip height: 205 mm Center width: 1500 mm Circumferential Ø: over bed 410 mm Spindle bore: 47 mm Spindle holder: size 6 Pick-up cone tailstock: 4 MK Spindle speeds: 28 - 1250 rpm Feeds: longitudinal/flat 0.03-1.3/0.008-0.33 mm/rev Thread pitches: 0.25 - 76 mm Electrical connection: 380 V, 3 kW Space requirement: 2800 x 1100 x 1600 mm Weight: 1330 kg

Lead and pull spindle lathe VEB DLZ 280 Center width: 900 mm Tip height over support: 90 mm Tip height above bed: 140 mm incl. accessories as shown ! Dimensions: 2,200 x 1,200 x 1800 mm Video: youtu.be/CeVz3o2XVus Auction-ID: A7-49701-12
