Tilting spindle moulders MARTIN T26

Robust swivel milling machine T 26 swivel from -45 to +45 degrees

Swivel milling machine in very good equipment
A treat for every Martin fan

Pole-switchable drive motor 5 / 6kW with automatic motor brake
R/L Barrel
Swivel angle from - 45 to + 45 degrees electrically adjustable
Height adjustment max. 150mm, electrically adjustable
When adjusting the height, the correction factor for the swivel angle is displayed in the upper display, which is then adjusted at the stop, so that adjustments can be made according to drawings
Four speeds 3000, 4500, 6000 and 9,000 rpm
Spindle diameter 30mm, mandrel fix quick-change spindle with torque wrench

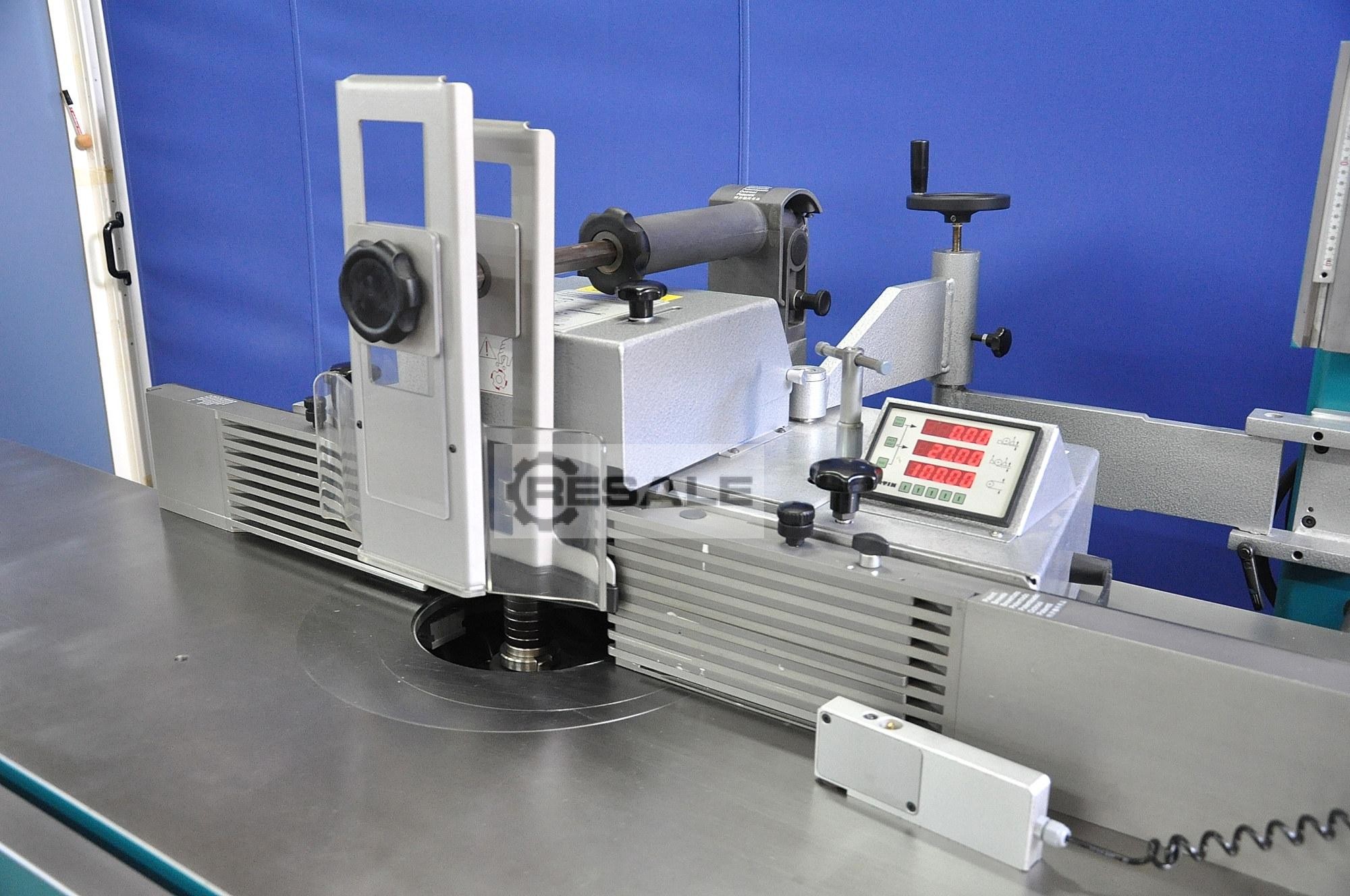

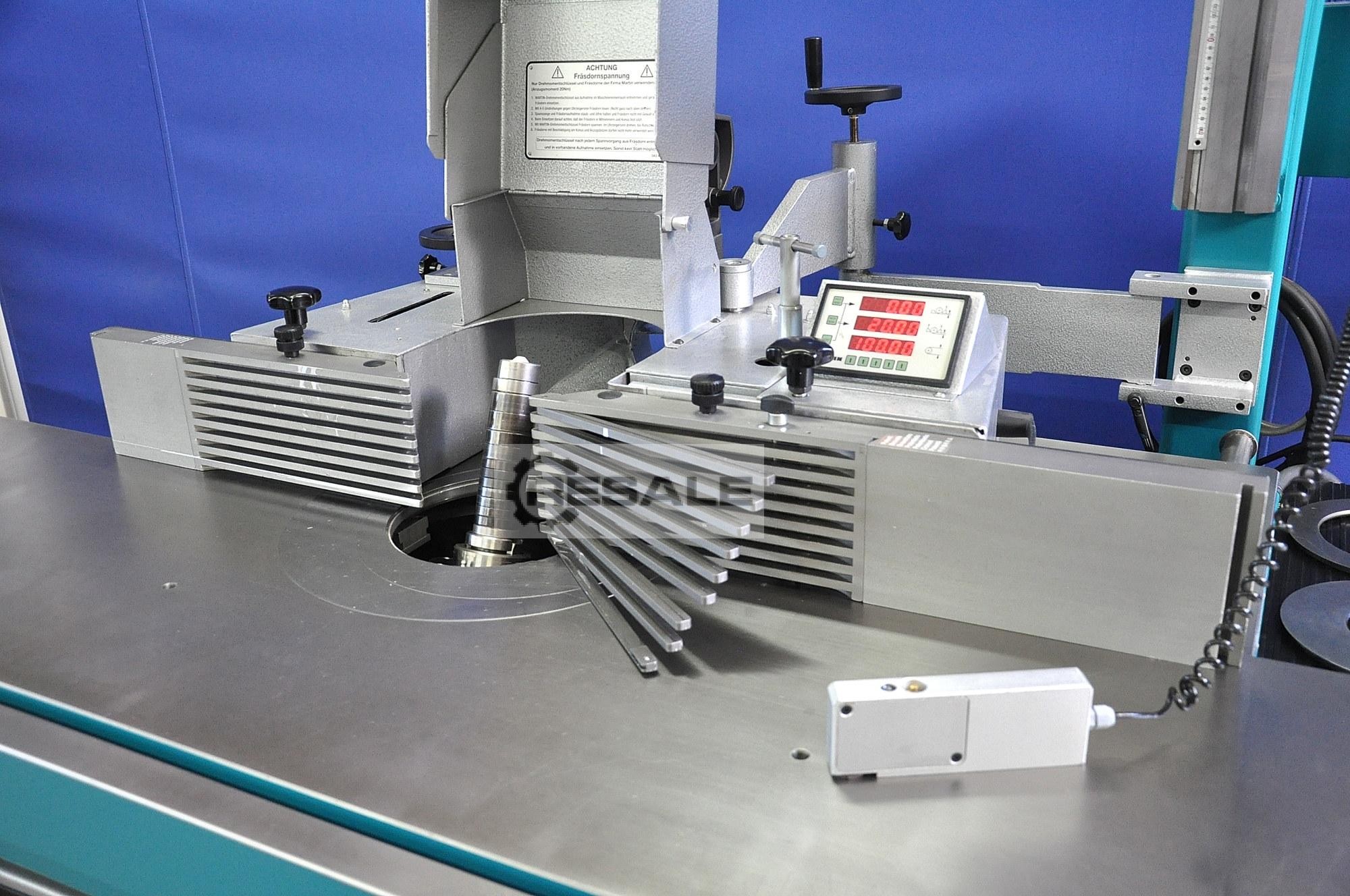

T226 comfort stop with digital displays for overall adjustment and infeed jaw individually, as well as input of the cutter diameter, whereby the cutting depth is automatically calculated
Stop with lifting device can be swivelled away (for sheet milling work)
Table opening via eccentric table rings, electrically adjustable, three additional insertion rings
Table extension right and left with pull-out workpiece support
Support can be extended by 700mm
Table length approx. 2400mm
Fold-down stop for insertion milling
Workpiece pressure device Aigner Centrex
Aigner integral stop left 500mm, right 600mm

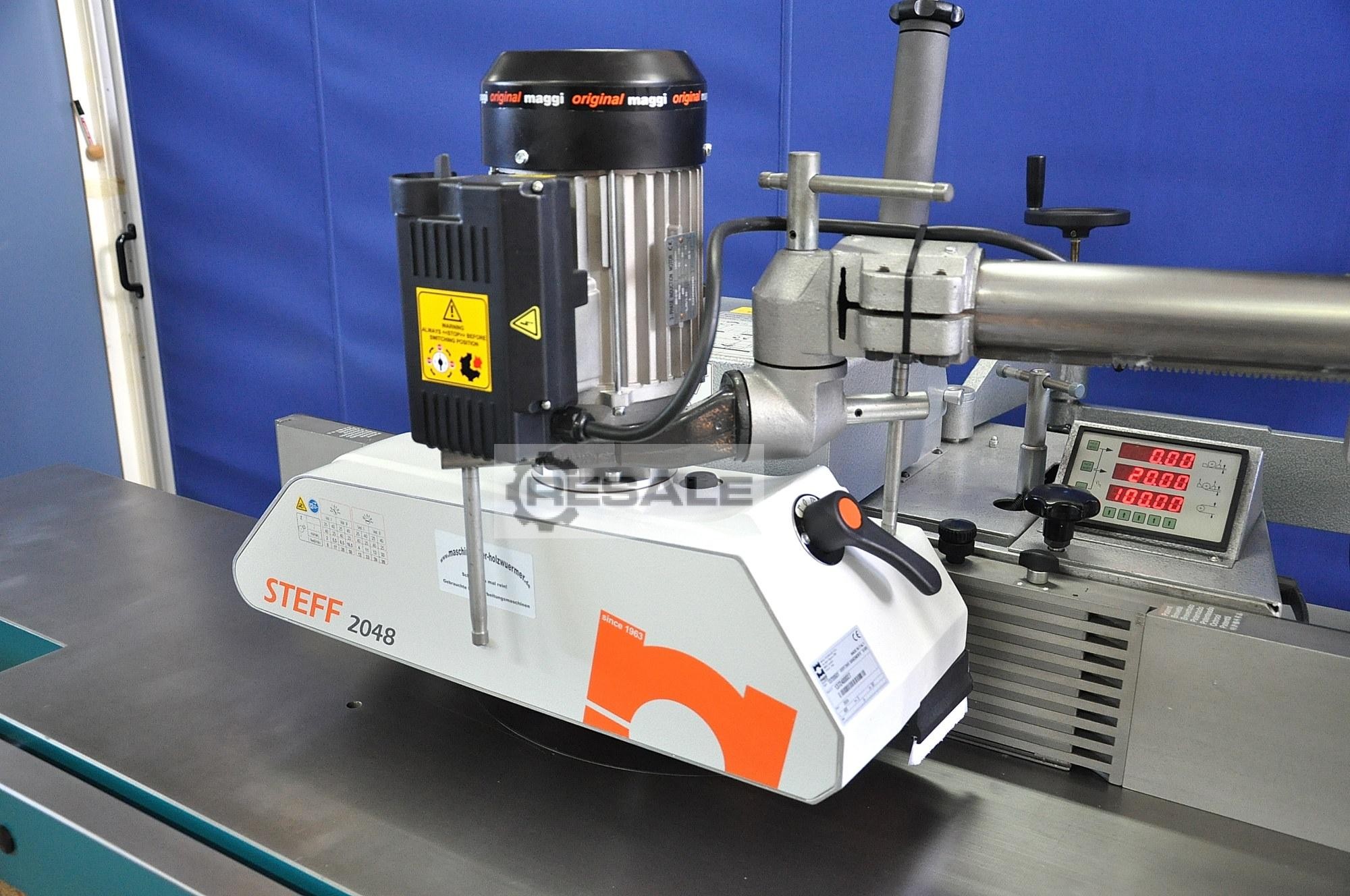

New 4-roller feed Steff 2048, with 8 speeds, R/L run
Feed socket, switchable from the controller
Comfort tripod with electrically height-adjustable feed support, this can be swivelled away to set up the machine and can then simply be snapped into place.
Zeromaster for easy adjustment of the milling height
Suction nozzle 2 x 120mm
Compressed air connection 6bar
Emergency stop switch
Some parts of the machine have been repainted
Feed renewed
V-belt renewed
Instruction manual
CE mark

Dimensions approx. 3000 x 1500 x 1830mm (LxWxH). Weight approx. 1800kg.

The machine can be demonstrated on site by appointment. We only offer machines that are ready for demonstration in our warehouse, see "other offers of this supplier".
seller offer No. resale 169422279
