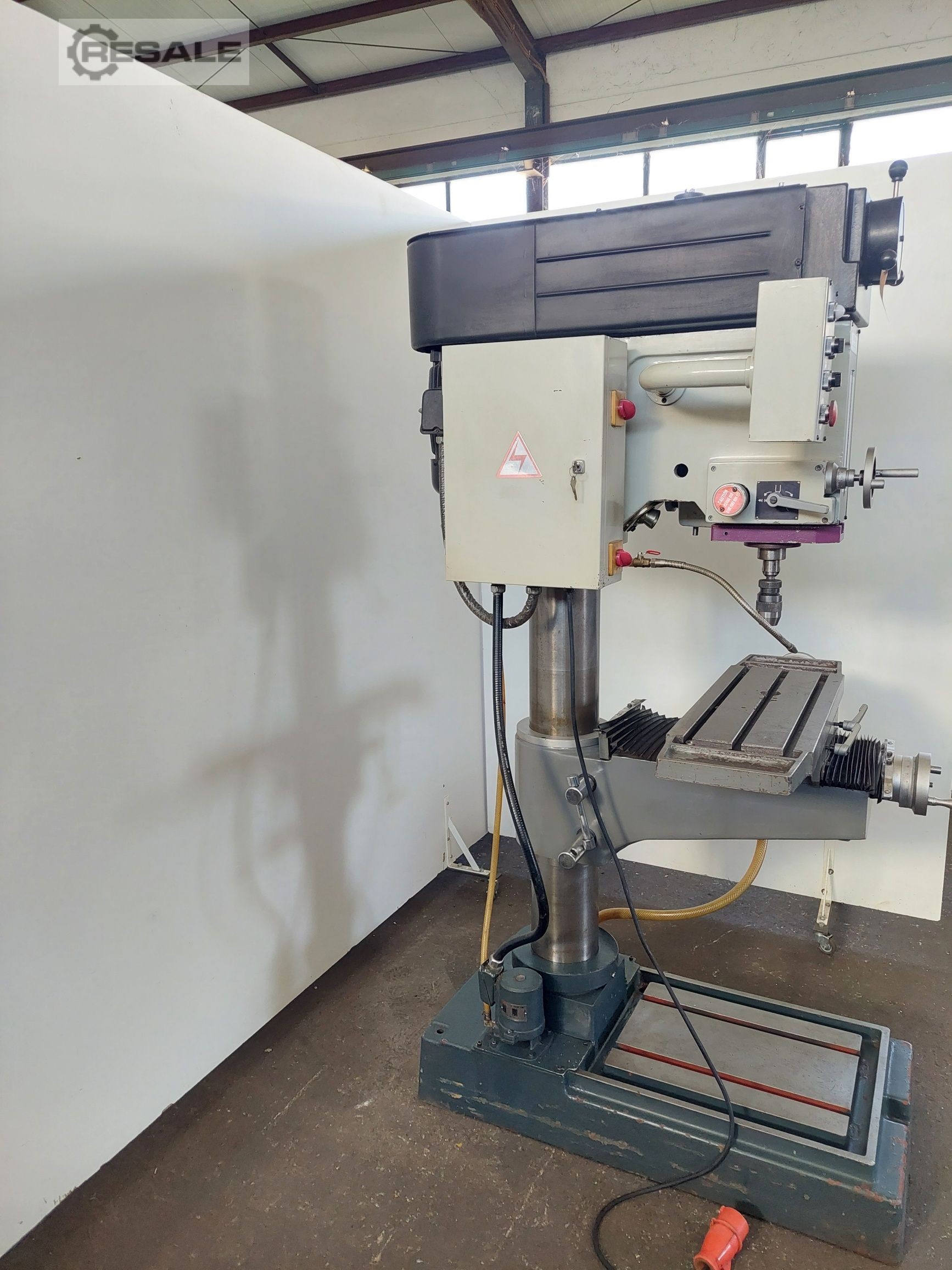

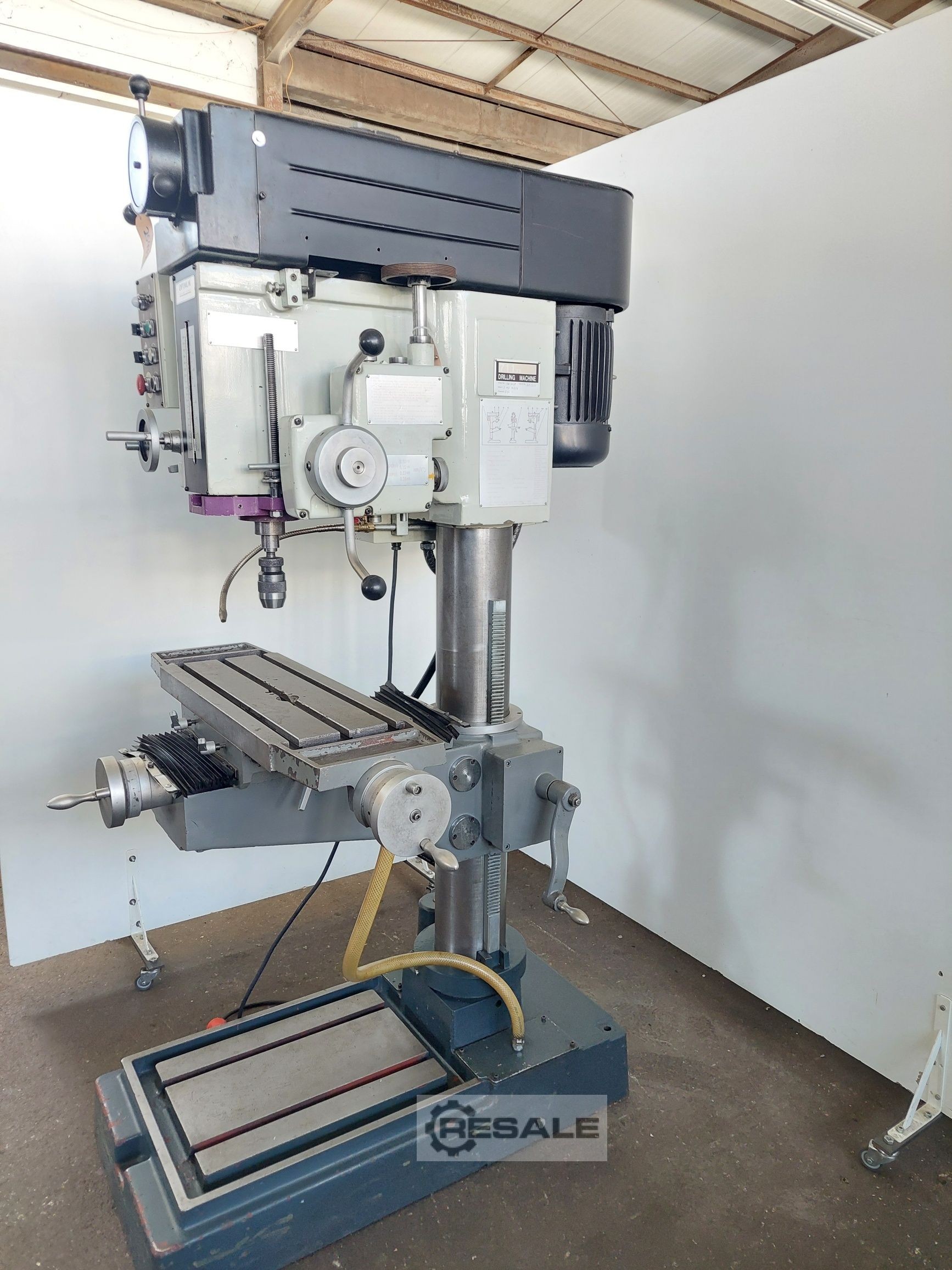

Drilling And Milling Machines OPTIMUM 28 VS-ST

Offer 25462

Technical data:

- Drilling capacity in ST 37 to 32 mm
- Drill spindle holder with tightening thread M 12 / MK 3

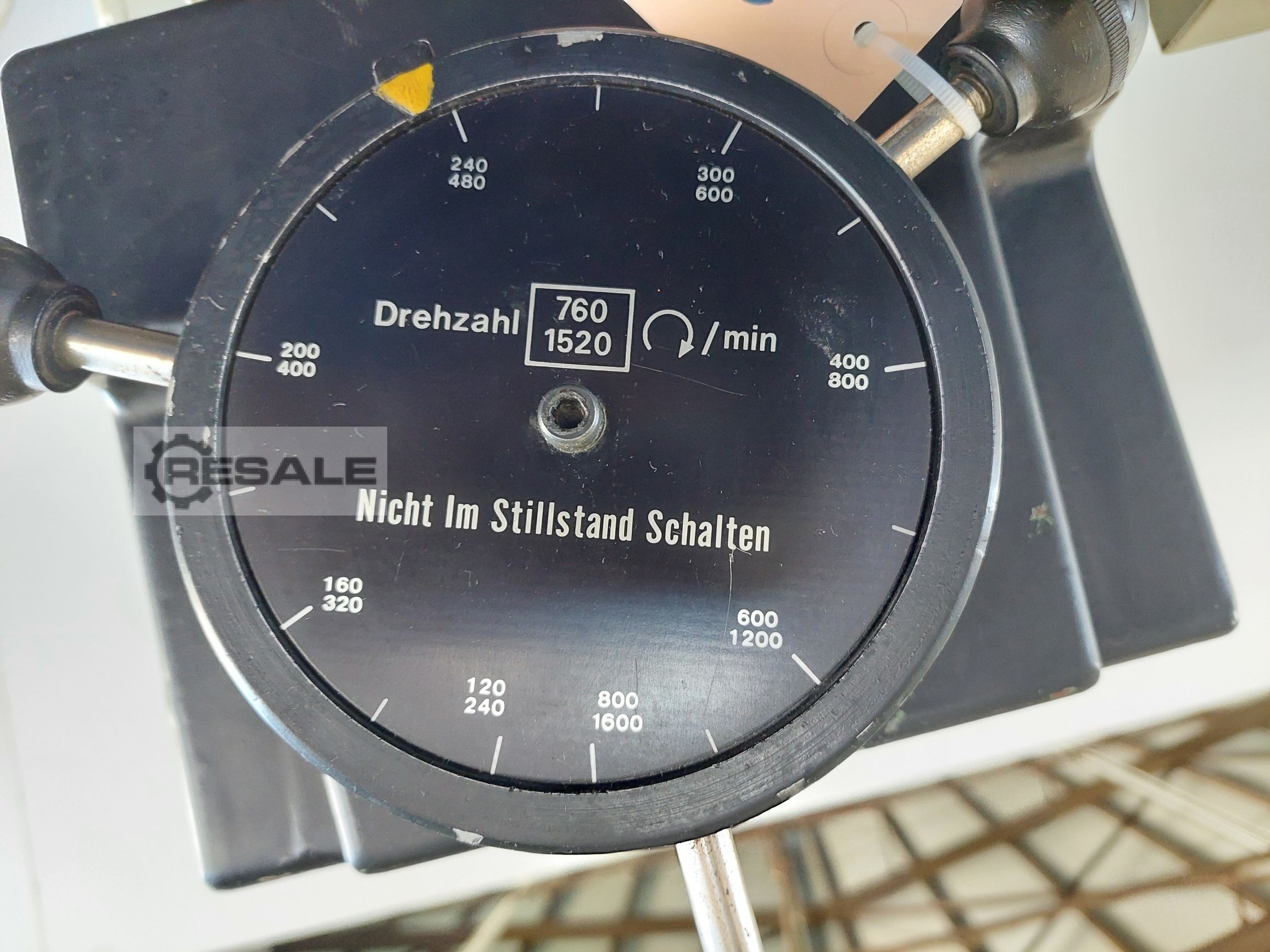

- Drilling spindle speeds 120 to 1600 rpm
- Drilling unit height-adjustable by hand crank
- Larger distance table / boring spindle 650 mm

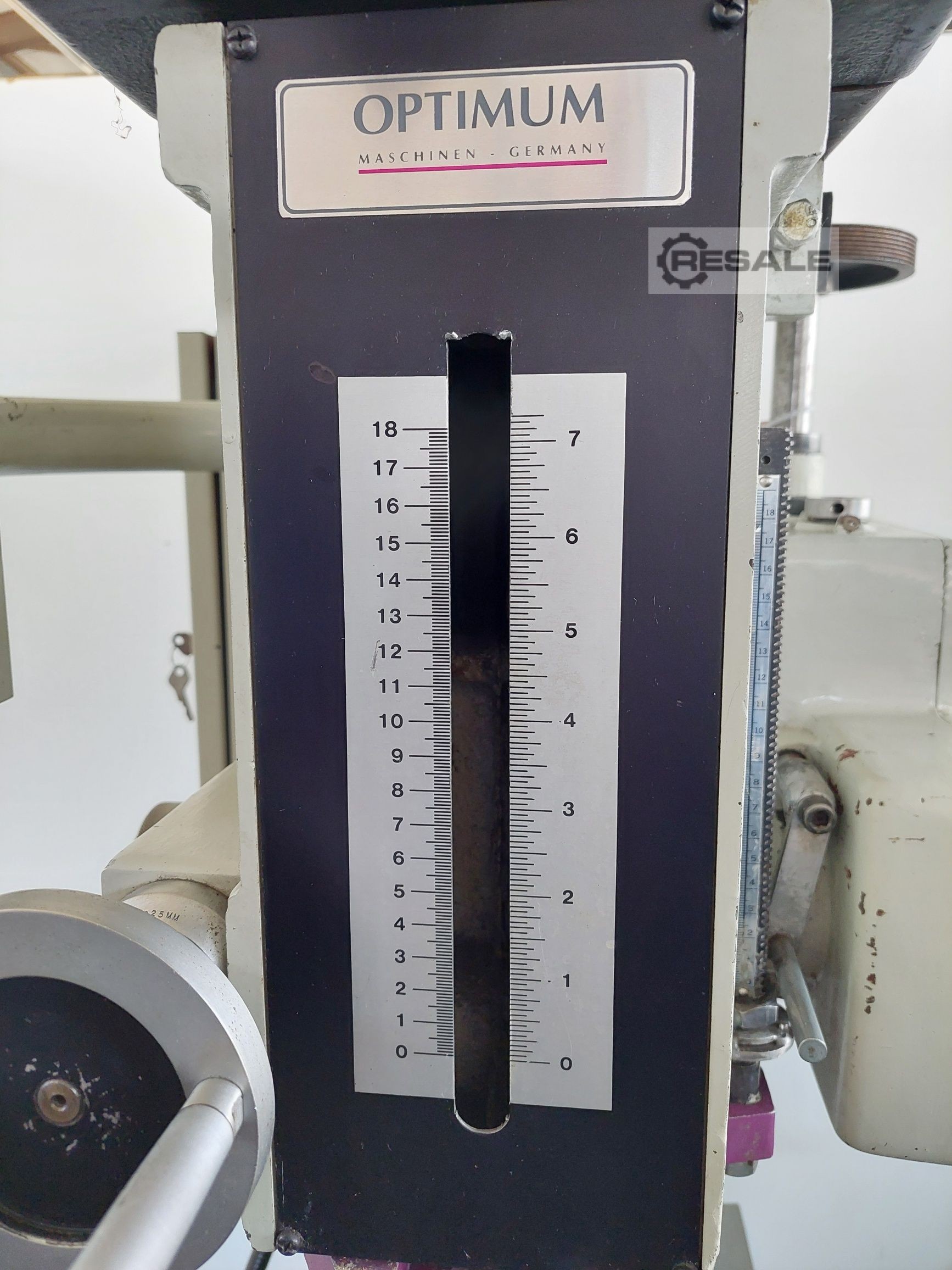

- Drilling spindle stroke with fine feed by handwheel 130 mm
- Drilling spindle projection 205 mm
- Drill milling unit can be rotated 360°

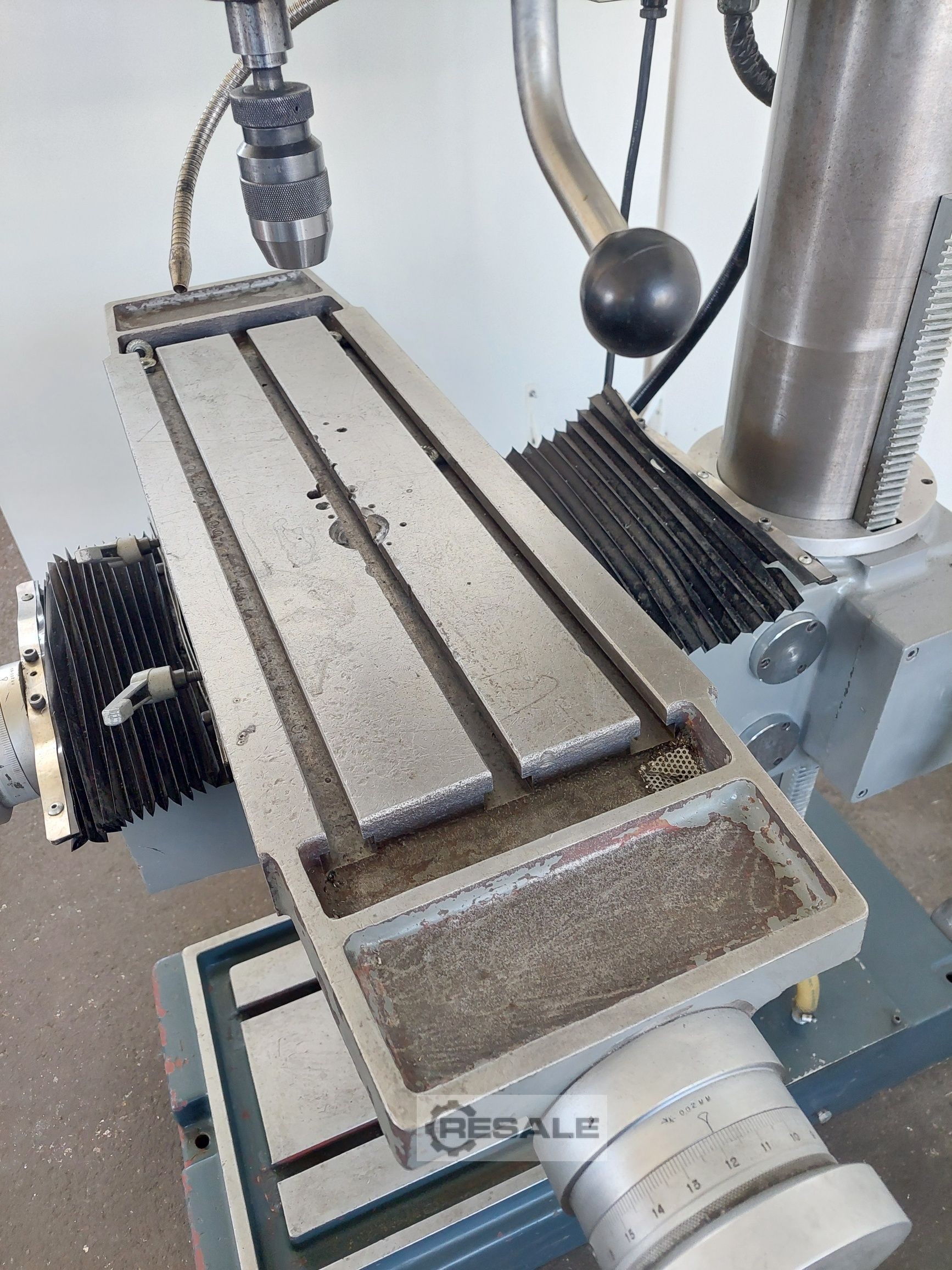

- Coordinate table with 3 T-slots 730 x 210 mm
- Table travel X-axis 250 mm / Y-axis 200 mm
- Drive 400 V / 1.5 kW
- Space requirement approx. W 1150 x H 1100 x D 1100 mm
- Weight approx. 270 kg

seller offer No. resale Lg.-Nr. 25462
