boring mills and machining centers used for sale (3,253)

CNC Control: Siemens 828DTable dimensions: 750 x 400 mmX/Y/Z strokes: 600 / 400 / 450 mmSpindle speed: 10,000 rpmSpindle power: 7.5 / 15 kWSpindle nose: SK40 / SA40Tool magazine: 24 positionsMax. tool diameter: 80 mmMax. tool length: 280 mmMax. tool weight: 8 kg Fastfeed: 48 m/minPositioning accuracy: ±0.003/300 mmRepeatability: ±0.003 mmPower supply: 400 V, three-phase, 50/60 HzOptions: Rigid tapping, Ethernet/USB, 20 bar IKZ spindle center coolant, electronic crank, spindle coolerYear: 2018Manufacturer: PriminerSerial No.: PR8318Dimensions (mm): 2530 x 1800 x 2350Weight (kg) : 3500 Auction-ID: A1-49171-8

Refrigerant with oil clamps square tubes present Auction-ID: A3-46152-19018

Auction-ID: A7-49302-48

Machine number: 71401453Operating voltage: 400 VFrequency: 50 HzRated current: 80 AConnection: 44 kVASpindle hours read: 26350Control: MILLPLUSSpindle speed: up to 12000 rpmFeed X/Y/Z axis: 20 - 15000 mm/minRapid traverse X/Y/Z axis: 40 m/minDisplacement measuring system Resolution X/Y/Z axis: 0.001 mmInput gauge X/Y/Z axis: 0.001 mmPosition tolerance in X/Y/Z axis: 0.010 mmTravel X-axis: 600 mmTravel Y-axis: 700 mmTravel Z-axis: 600 mmTool holder: SK 40incl. 60-fold tool changerMax. tool diameter: 100 mmMax. tool length from spindle nose without tool breakage monitoring: 350 mmNC rotary table Clamping surface: 630 mm DiameterDistance between T-slots: 63 mmNumber: 9Centering bore: 50 mm DiameterMax. rotation of the table top: 10.7 rpmFeed: 3600°/minResolution of the measuring system: 0.001°incl. chip conveyor and cooling systemAttention: the machine can be transported on a truck with ...

3hp Auction-ID: A1-49382-32

MAB 800 magnetic core drill delivered in its metal case with accessories. Professional machine designed for drilling and coring metal structures thanks to its powerful magnetic holding base. Equipped with a 1,800 W motor, electronic speed control, thermal protection and right/left rotation function. The set includes the machine, visible accessories, transport case and documentation. Ideal solution for steel construction, locksmithing, boilermaking, industrial maintenance and assembly work. Auction-ID: A1-48554-180

Numerical parameters recorded Machine Model: HM630 Machine Number: 535 Production number: MAI4241 (photo reading, to be confirmed) Date of Manufacture: 2017.11 Power supply: AC380V Phase: 3 Frequency: 50 Hz Rated Apparent Power: 65 kVA Current: 99 A / 118 A Cut-off capacity: 18 kA Spindle Interface: Standard P50T Taper: 7/24 Marked Ø: 69.85 mm Marked length: 136.8 mm Overall length marked: 146.8 mm Marked dimension: 35 mm Maximum Tool Weight: 25 kg Indicated stress: 9.8 × W × L ≤ 29.4 N·m Auction-ID: A1-49171-2

General Description CNC turning center manufactured by MASHSTROY, model CT 161. Designed for precision turning, facing, drilling, boring and threading of cylindrical components. The machine is equipped with a hydraulic chuck, programmable tailstock and fully enclosed machining area for production applications. Technical Details Manufacturer: MASHSTROY Model: CT 161 Machine type: CNC turning center Horizontal CNC lathe Hydraulic chuck 12-station turret Programmable tailstock Full safety enclosure Original CRT-based CNC control Chip conveyor / chip evacuation system Coolant system Original documentation included Condition Used industrial condition. The machine appears complete with hydraulic chuck, 12-station turret, programmable tailstock, chip conveyor, coolant system and original documentation. Operational status, spindle condition and CNC functionality have not been tested. Auction-I ...

230V - 1200W - 5A Different speeds possible. In good working condition. Auction-ID: A3-46152-6137

MORI SEIKI - SH 400 Stock number 1039-9177 Machining Center - Horizontal Manufacturer MORI SEIKI Type SH 400 Built in 1999 Control MSC 502 Country of origin: Japan Technical details: x-travel 560 mm y-travel 510 mm z-travel 510 mm Control MSC 502 Distance from spindle center to table 50 - 650 mm Distance between spindle nose and table center 100 - 610 mm Main spindle: Speed range - main spindle max. 12,000 rpm/-1 Drive power - main spindle 22 / 18.5 kW Tool holder MAS BT-40 Spindle bearing diameter 70 mm Pallet changer: Number of pallets 2 Pallet size 400 x 400 mm max. workpiece diameter 580 mm max. workpiece height 650 mm B - Axis Switching time 90°: 2.5 sec Pallet change time 6.0 sec Tool Changer: Number of tool positions 60 pos. Tool holder MAS BT-40 max. tool diameter 80 mm max. tool diameter. with free neighboring box. 125 mm max. tool length 300 mm max. tool weight 8 ...

230V - 1200W - 5A Different speeds possible. Working condition. Auction-ID: A3-46152-6136

  CNC Siemens 840D   Table size 1200 x 800 mm   Movement X 1020 mm Y travel 610 mm Feed Z 620 mm   Centre of spindle to column 670 mm Spindle to table 140 - 760 mm   Column face to table centre 365 - 975 mm   Fast feed of XYZ axis 43 M/min.   Cutting feeds 1 - 10000 mm/min.   Maximum table load 800 Kg   Spindle speed 150 - 12000 rpm   Maximum spindle motor power: 16Kw   Spindle motor duty cycle: 12 kW   BT 40 spindle taper   Tool magazine capacity 24 stations Arm type   Tool change time between tools 2.5 s   Tool change time from chip to chip 3.5 s   Maximum tool diameter 100 mm   Maximum tool weight 8 kg   Coolant capacity 280 l   Plan area W x D x H 2650 x 2750 x 2900   Chip conveyor   High pressure coolant through spindle Auction-ID: A7-49260-1

According to photos, weight estimated Auction-ID: A1-48554-143

Specifications: Control: Fanuc Series 21i-MB Cutting time: 8038 hours X-axis: 1300mm Y-axis: 650mm Z-axis: 625mm Table size: 1400mm x 650mm Max. part weight: 1000kg Spindle speed: 8000 tpm Spindle taper: BT-40 Spindle motor power: 15kW Positions on tool magazine: 30 Machine dimensions: Length: 3000mm width: 2450mm Height: 3150mm Weight: 9000kg Machine is equipped with: - Chip conveyor - Vise clamp - Chuck clamp - 30 Bar through spindle cooling Auction-ID: A1-49370-12

General Description Vertical coordinate boring machine designed for precision boring, drilling and machining of tooling, molds, gauges and precision mechanical components. The machine is equipped with a precision coordinate table and rotary work table for accurate positioning and machining operations. Technical Details Machine type: Vertical coordinate boring machine Vertical precision spindle Large precision rotary table Precision graduated spindle feed Coordinate table with longitudinal and cross travel Enclosed column drive Heavy cast iron construction Condition Used industrial condition. The machine appears complete with precision spindle, rotary table, coordinate table and enclosed drive system. Operational status, spindle accuracy and positioning precision have not been tested. Auction-ID: A7-49124-42

Table Dimensions (mm): 610mm x 370mm X-Travel (mm): 560mm Y-Travel (mm): 400mm Z-Travel (mm): 500mm Number Of Tools In Magazine: 10 Spindle Speed Range: 5 - 8000 rpm Distance Between Spindle & Table (Verticl): 100mm - 600mm Spindle Taper: BT40 Cutting Feed rate: 1 - 20000mm Rapid Traverse Range X,Y,Z: 20M/pm Table load max: 300Kgs Main Drive Power: 15 hp Control: Siemens 802 Foot print W x D x H: 2000mm x 2060mm x 2530mm Weight: 3100Kgs Auction-ID: A7-49260-2

Wagner WMC 1800 CNC Machining Center (2013) Manufacturer: Wagner Type: WMC 1800 Year of Make: 2013 Siemens 828 controller Condition: good, used, under production X-travel 1800mm Y-travel 900mm Z-Travel 700mm Tool holder SK40 IKZ 25 bar with belt filter system Tool Measurement Handwheel Documentation Without tools! Auction-ID: A7-49053-7

Serial Number: 141643 Control: MAZAK MAZATROL M PLUS Table dimensions: 1460 x 510 mm Tool holder: SK 40 X-axis travel: 1120 mm Y-axis travel: 510 mm Travel Z-axis: 510 mm Max. distance from spindle end face to clamping surface: 690 mm Spindle speed: 40 - 7000 rpm Max. permissible weight on machine table: 500 kg Rapid traverse in X and Y axis: 24 m/min Rapid traverse in Z-axis: 20 m/min Cutting feed speed X/Y/Z: 1 - 5000 mm/min Number of tool locations: 24 Max. tool diameter: 80 mm with occupied neighboring space max. tool diameter with free adjacent space: up to max. 110 mm Max. tool length: 350 mm Max. tool weight: 8 kg incl. chip conveyor MAYFRAN incl. the tool holders located on the tool changer Attention: the machine vice clamped on the table is not included in the scope of delivery! Internal reference: previously lot 14 Auction-ID: A7-49056-264

Machine number: 6233-5Speed: up to 2800 rpmDrilling diameter: up to 40 mmProjection: approx. 907 mmwith two tablesTable dimensions: 780 x 600 mm - with four grooves, as well as a three-jaw chuck, diameter: 400 mmTable 2: 1000 x 540 mm, with four grooves and two vices, one jaw width: 125 mm and 100 mma four-jaw chuck, manufacturer RÖHm, diameter: 200 mm as well as a four-jaw chuck, diameter: 150 mmand a dividing head from the manufacturer HOFMANN, type: VTS 160 with a three-jaw chuck, diameter: 200 mmalso various clamping systems, including KOHN clamping system, jaw width: 120 mm Auction-ID: A7-49089-208

Mikron VCE 1600 Pro Type VCE 1600 PRO Year of construction 2014 Control CNC Heidenhein iTNC 530 Country of origin Switzerland Technical details x-travel 1,600 mm y-travel 900 mm z-travel 800 mm Control Heidenhein iTNC 530 Table size 1,700x850 mm Inclusion ISO ISO 40 Speed 14,000 rpm Tool Random 40 pos. Table load 2,000 kg Rapid traverse: 24 m/min Internal cooling supply 20 bar Total power requirement 18 kW Machine weight approx. 18,600 kg Pick-up date will be announced after the auction ends. Machine is loaded with a truck-mounted crane. Without screwing rods, zero clamping system and tools. Auction-ID: A7-49053-31

Machine is dismantled and stored (see photos). May show traces of storage Auction-ID: A7-49688-2

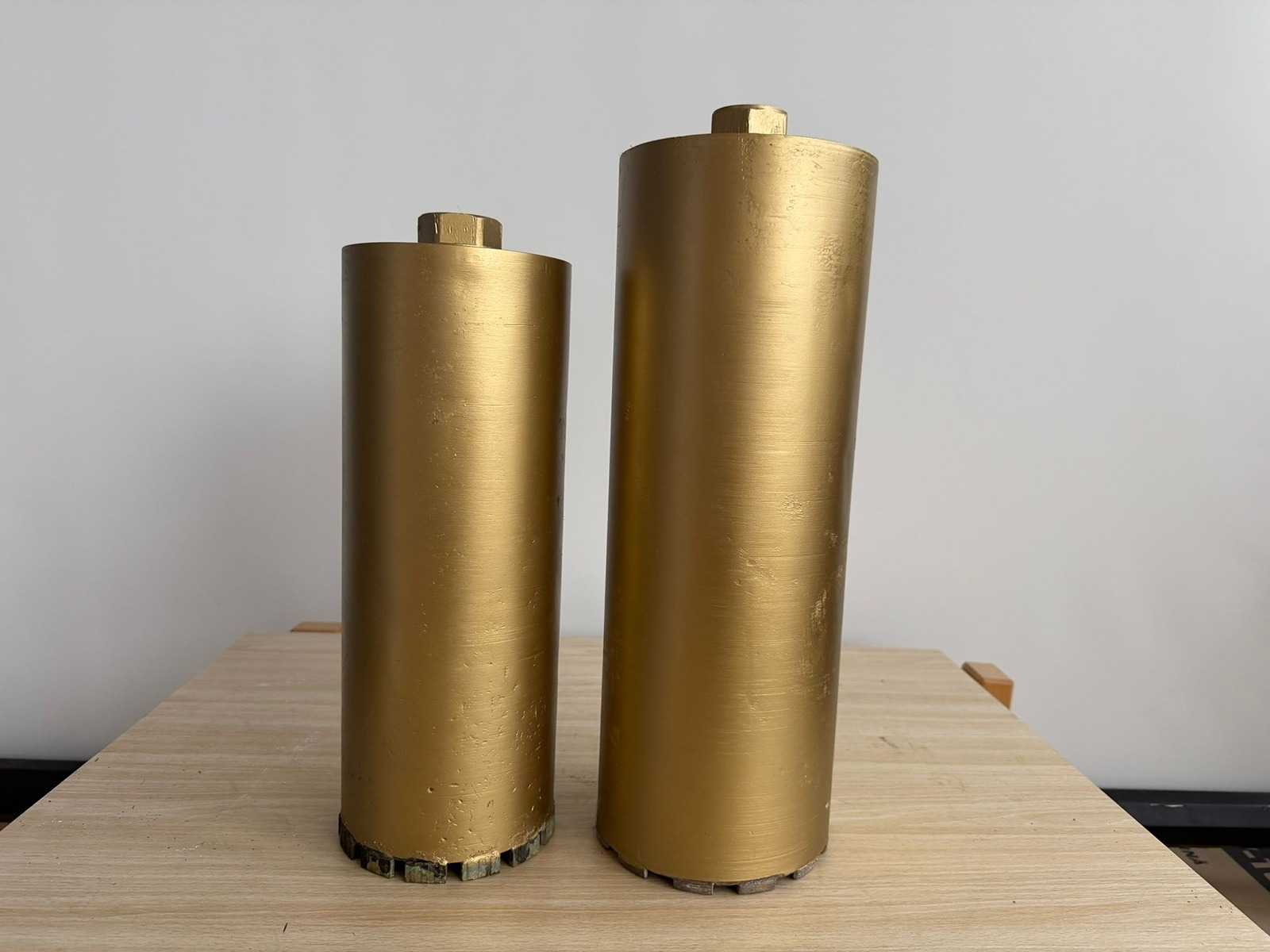

Core drilling machine / diamond drill Brand: Daewoo Type: DADK-D230BE Peak power: 4580 watts Speed: 100-530 RPM (infinitely adjustable) Max. Drilling Diameter: 230 mm Max. Drilling Depth: 550 mm Drill connection: 1/2 inch internal, 5/4 inch external Equipped with: digital display Equipped with: connection for water cooling Equipped with: 30 milliamp residual current device (PRCD) Tripod: Adjustable aluminum tripod Condition: unused, in the original packaging Attention: diamond drill bit not included Auction-ID: A3-46152-1066

A-axis 0-360grd, miter saw ø 550mm, feed conveyor approximately 6mtr, discharge conveyor approximately 5mtr, including walk-in protection, chip extraction Auction-ID: A1-48474-3

Machine is equipped with: - chip conveyor - through spindle coolant - oil cooler Auction-ID: A1-49370-8

CNC Control: Siemens 828D ShopMillCourses X/Y/Z: 1220 / 600 / 610 mmTotal power: 10 / 14 kWSpindle speed: 8,000 rpmSpindle taper: SK40Tool magazine: 20 positionsEquipment: Chip conveyor, coolant, technical documentationPower supply: 400 V – 50 HzManufacturer: HuronYear: 2012Serial number: M02741Estimated dimensions (mm): 3500 x 2800 x 3200Weight (kg): 10000 Auction-ID: A1-49171-10

Serial number: 498-56Important note: A new spindle has recently been installedTravel paths: X: 800 mm Y: 500+50 mm Z: 550 mmSpindle speed: 12000 rpmTool holder: SK 40Number of tool positions: 40Control: SIEMENS SINUMERIK 840 Dincl. chip conveyor from KNOLL, paper belt filter system from KNOLL, zero-point clamping system from SCHUNK Type: SDE 138Table dimensions: 850 x 350 mmincl. the tool holders and tools on the tool changerincl. touch probe as shown in the pictures Atruck with a width of 3000 mm is required for transportReference: Wittner - Lot 11 Auction-ID: A7-49056-412

Technical data Manufacturer: HURCO Model: VMX42i Date of manufacture: 2018/3/6 Spindle speed: 12,000 rpm Machine mass according to nameplate: 6,450 kg Travel X/Y/Z: 1,067 / 610 / 610 mm (Source: Online research) Table size: 1,270 x 610 mm (Source: Online research) Max. table load: 1,750 kg (Source: Online research) Spindle power: 18 kW (Source: online research) Tool holder: ISO 40 (Source: Online Research) Tool changer: 30 places (Source: Online Research) Control: HURCO MAX5 / WinMax with double screen (Source: Online research) Configuration 3-axis CNC vertical machining center with 2 machine vices, chip conveyor and separate cooling/tempering unit. Remarks The machine comes from a well-maintained company liquidation and was actively used in ongoing production until the end. Note information researched to the best of my knowledge and belief. No guarantee is given for completeness and  ...

TOYODA FH400J horizontal CNC machining center equipped with a 58-position tool magazine, ideal for industrial production and machining of complex parts. Thanks to its high-capacity magazine, this machine allows: Automatic sequence of many operations Reduced machine downtime series production with long cycles High machining flexibility Coupled with its turntable and multi-piece clamping system, this horizontal center offers high productivity and optimal precision. Machine perfectly suited for: CNC machine shops Industrial production Precision mechanics Subcontracting Automotive, energy, general mechanical engineering sectors TOYODA centers are known for their robustness, rigidity and reliability in continuous production. Auction-ID: A1-48554-8

Equipped with 4 pneumatic clamps Auction-ID: A1-48474-1

Machine number: 33905Operating voltage: 400 VFrequency: 50 HzRated current: 5 ASpindle speed: from 120 to 2200 rpmDrilling depth: 160 mmTable dimensions: 400 x 300 mmwith two grooves and a vice, jaw width: 70 mm Auction-ID: A7-49089-268
