injection moulding machines used for sale (842)

Key data: 1600 kN

Arburg 520S 1600-290/100 / Production line with the Wittmann W823 robot / Operating hours: 20,181 h in automatic mode Year of manufacture: 09.2011 Injection unit: Screw diameter: 35 mm Injection weight: 132 g Spray pressure: 2000 bar Dosing volume: 144 ccm Clamping unit: Clamping force: 160 t Tiebar spacing: 520x520 mm Size of the clamping plates: 695x695 mm Ejector: hydraulic Clamping unit: hydraulic Control: SELOGICA - Touchscreen Additional equipment: 2K Injection Molding Machine with Turntable and Robot Very good technical condition Operating hours: 20,181 h in automatic mode Total number of operating hours: 28,473 h Euromap 67 Robot interface Air Valve x 3 Hydraulic, needle-core pull, controlled by a proportional valve x 2 Reinforced Injection Units – Bimetal Proportional valves on sprinkler units - precise spraying Machine with two cylinders / bat ...

Key data: 1500 kN

Arburg 520H 1500-290 e² / Hybrid machine / Production line with the Wittmann W818 side robot / Operating hours: 21,588 h in automatic mode Year of manufacture: 05.2016 Injection unit: Screw diameter: 30 mm Injection weight: 97 g Spray pressure: 2500 bar Dosing volume: 106 ccm Clamping unit: Clamping force: 150 t Tiebar spacing: 520x520 mm Size of the clamping plates: 695x695 mm Ejector: electric Clamping unit: toggle lever Control: SELOGICA - Touchscreen Additional equipment: Machine in very good technical condition Hybrid machine: high-speed, energy-saving and very quiet Operating hours: 21,588 h in automatic mode Euromap 67 Robot interface Air Valve x 5 Core train control Air Core Pull x 3 Hardened injection unit - Bimetal Main motor of the machine - Servo motor driven by inverter - Energy saving The injection unit is driven by the servo motor, which  ...

Key data: 1500 kN

Arburg 520H 1500-800 e² / Hybrid machine / Production line with the Arburg Multilift H side robot Injection unit: Screw diameter: 55 mm Injection weight: 434 g Spray pressure: 1650 bar Dosing volume: 474 ccm Clamping unit: Clamping force: 150 t Tiebar spacing: 520x520 mm Size of the clamping plates: 695x695 mm Ejector: electric Clamping unit: toggle lever Control: SELOGICA - Touchscreen Additional equipment: Hybrid machine: high-speed, energy-saving and very quiet Euromap 67 Robot interface Control with air valve Hydraulic core pull x 1 Control with hot runners x 12 Hardened injection unit - Bimetal Main motor of the machine - Servo motor driven by inverter - Energy saving The injection unit is driven by the servo motor, which is controlled by an inverter Machine with cylinder / battery with compressed nitrogen (extra charge for fast working) Central lubric ...

Key data: 1500 kN

Arburg 520H 1500-800 e² / Hybrid machine / Production line with the Arburg Multilift H side robot Year of manufacture: 04.2012 Injection unit: Screw diameter: 55 mm Injection weight: 434 g Spray pressure: 1650 bar Dosing volume: 474 ccm Clamping unit: Clamping force: 150 t Tiebar spacing: 520x520 mm Size of the clamping plates: 695x695 mm Ejector: electric Clamping unit: toggle lever Control: SELOGICA - Touchscreen Additional equipment: Hybrid machine: high-speed, energy-saving and very quiet Control with air valve Core train control Control with hot runners x 12 Hardened injection unit - Bimetal Main motor of the machine - Servo motor driven by inverter - Energy saving The injection unit is driven by the servo motor, which is controlled by an inverter Machine with cylinder / battery with compressed nitrogen (extra charge for fast working) Central lubricatio ...

WITTMANN SPRUE WP80 X-100 Y-700 Z-90 ROBOT

Screw diameter: 93 mm Injectable volume / Shot volume: 3138 cm3 Injection pressure : 1912 bar Column passage / Bettween tie bar: 950 x 850 mm Mold Thickness /Tickness tie bar: 300-1000 mm Opening stroke: 930 mm Ejection stroke: 350 mm 2 cores / 2 corepulling 2 blow guns / 2 air valves Robot interface

Key data: 700 , 1670 , 110

Screw diameter: 110 mm Injectable volume / Shot volume: 4750 cm3 Injectable weight / Shot weight: 4320 g Injection pressure: 1670 bar Column passage / Bettween tie bar: 900 x 1000 mm Mold Thickness /Tickness tie bar: 400-1000 mm Opening stroke: 1000 mm Ejection stroke: 350 mm 4 corepulling 4 blow guns / 4 air valves Electrical screw motor

Key data: 6500 kN, 80 mm

Clamping force: 650t Year of construction: 2024 Injection Unit .../4630 Screw diameter 80 mm Spec. Spray pressure 2090 bar Injection volume 2212 cc Hydr. Drive power 113 kW L/D Screw Ratio 22 Clamping Unit 6500/... Clamping force 650 t Lights spar spacing 1040 x 910 mm Ejector force 110 kN Tool installation height 400 mm Opening way 950 mm Max. panel spacing 1350 mm Ejector path 250 mm Weight 27000 kg Year of construction 2024 Control type KEBA 2985 Clamping unit Two-plate technology – hydraulic clamping force Fast tool movement due to two diagonal cylinders Tool protection function Linear guide for BWAP (MAIII PLUS, MA-F) Set of spray nozzles Closing and opening of the mold (max. 5 stages, min. 3 stages) Tool height limitation via limit sensor Clamping plates according to Euromap standard Ejector reset function Display of ejector ...

Key data: 1750 kN, 393 g/PS, 50 mm

Clamping force: 175t Year of Make: 2005 Injection weight in hp: 393g Injection Unit .../1000 Screw diameter 50 mm Spec. Spray pressure 2304 bar Injection volume 432 cc Injection weight in hp 393 g L/D Screw Ratio 22 Clamping unit 175/... Clamping force 175 t Size of the clamping plates 915 x 910 mm Lights spar spacing 560 x 560 mm Tool installation height 350 mm Opening way 700 mm Max. panel spacing 1050 mm Ejector path 200 mm Weight 9000 kg Dimensions(m) LxWxH 5.2 x 1.75 x 2.2 m Year of construction 2005 Control type MC4

Key data: 600 kN, 94 g/PS, 30 mm

Clamping force: 60t Year of Make: 2001 Injection weight in hp: 94g Injection Unit .../200 Screw diameter 30 mm Spec. Spray pressure 1995 bar Injection volume 106 cc Injection weight in hp 94 g L/D Screw Ratio 20 Clamping unit 600/... Clamping force 60 t Size of the clamping plates 600 x 600 mm Lights spar spacing 420 x 420 mm Tool installation height 200 mm Opening way 550 mm Max. panel spacing 750 mm Weight 3950 kg Dimensions(m) LxWxH 4.2 x 1.4 x 2.0 m Year of construction 2001 Control type NC4

Key data: 6 kN, 2582 g/PS, 90 mm

Tederic NEO H680-i4800 – Two-platen injection molding machine Exhibition piece with minimal operating hours – excellently equipped! This machine is a former pilot plant and demonstration device that was used exclusively for demonstration and test purposes. Accordingly, the The machine has hardly any operating hours and is in excellent condition. The extensive equipment goes far beyond the standard. --- Technical data - Clamping force: 680 t (6,669 kN) - Year of construction: 2022 - Injection unit: i4800 - Screw diameter: 90 mm - Injection weight (hp): 2,582 g - Injection volume: 2,837 cc - Spec. Spray pressure: 1,615 bar - L/D Ratio: 20.8 - Clamping plates: 1,500 x 1,400 mm - Handlebar spacing: 1,100 x 960 mm - Ejector force: 182 kN - Tool installation height: 450 mm - Opening travel: 1,400 mm - Max. panel spacing: 1,850 mm  ...

Key data: 1300 kN, 475 g/PS, 55 mm

Technical data: Clamping force: 130 t Year of Make: 2008 Shot weight: 475.9 g Injection unit: 1000 Screw diameter: 55 mm Specific injection pressure: 1904 bar Displacement: 523 cc Clamping platens (dimensions): 745 x 745 mm Clear width (spar dimension): 470 x 470 mm Ejector force: 22.6 kN Tool installation height (min.): 300 mm Opening travel: 600 mm Max. panel spacing: 900 mm Weight: 8000 kg Control: MC5

We are a company engaged in the international trade of used injection molding machines and peripherals. We specialize in the transport of machines up to 3500t of clamping force and the relocation of industrial plants throughout Europe. Offered: Krauss Maffei 125-520 C2 injection moulding machine Machine Specifications General information Year of manufacture: 2004 Controls: MC4 Weight: 6000kg Dimensions (L × W × H): 4.5 × 1.5 × 2.2 m Clamping force: 125 t Tool Clamping System: 125 / ... Tool plate dimensions: 745 × 770 mm Ground clearance between columns: 470 × 470 mm Tool height: 300 mm Opening Distance: 600mm Maximum Plate Distance: 900mm Ejector force: 22 kN Ejector stroke: 150 mm Injection Unit: ... / 520 Screw diameter: 45 mm Injection volume: 275cc Injection weight: 250 g Specific Injection Pressure: 1878 bar  ...

TECHNICAL DATA OF THE MACHINE General Clamping force: 50 t Year of manufacture: 2006 Control: NC4 Weight: 2,700 kg Dimensions (L × W × H): 3.8 × 1.1 × 2.1 m Injection unit – .../200 Screw diameter: 22 mm Injection volume: 41.8 cc Specific injection pressure: 2,800 bar Closing system – 50/... Clamping force: 50 t Tool plate dimensions: 520 × 520 mm Clearance between columns: 355 × 355 mm Tool height: 210 mm Opening Distance: 400mm Maximum Plate Distance: 610mm

Key data: 2000 kN, 562 g/PS, 55 mm

Specification Injection Moulding Machine Engel VC 1350/200 Tech General data Clamping force: 200 t Year of Make: 2007 Injection unit weight: 562 g Injection Unit .../1350 Screw diameter: 55 mm Specific injection pressure: 2183 bar Injection volume: 618 cm³ Injection unit weight: 562 g Tool clamping unit 200/... Clamping force: 200 t Dimensions of the tool plates: 860 x 570 mm Output force: 80 kN Tool height: 400 mm Opening travel: 750 mm Maximum panel spacing: 1150 mm Discharge stroke: 180 mm Other Specifications Weight: 14200 kg Dimensions (L x W x H): 6.3 x 1.9 x 2.3 m Year of Make: 2007 Equipment 2 x hydraulic core on the moving plate Pneumatic valve Integrated robot 8 zones for hot runners Rotameter 8-fold

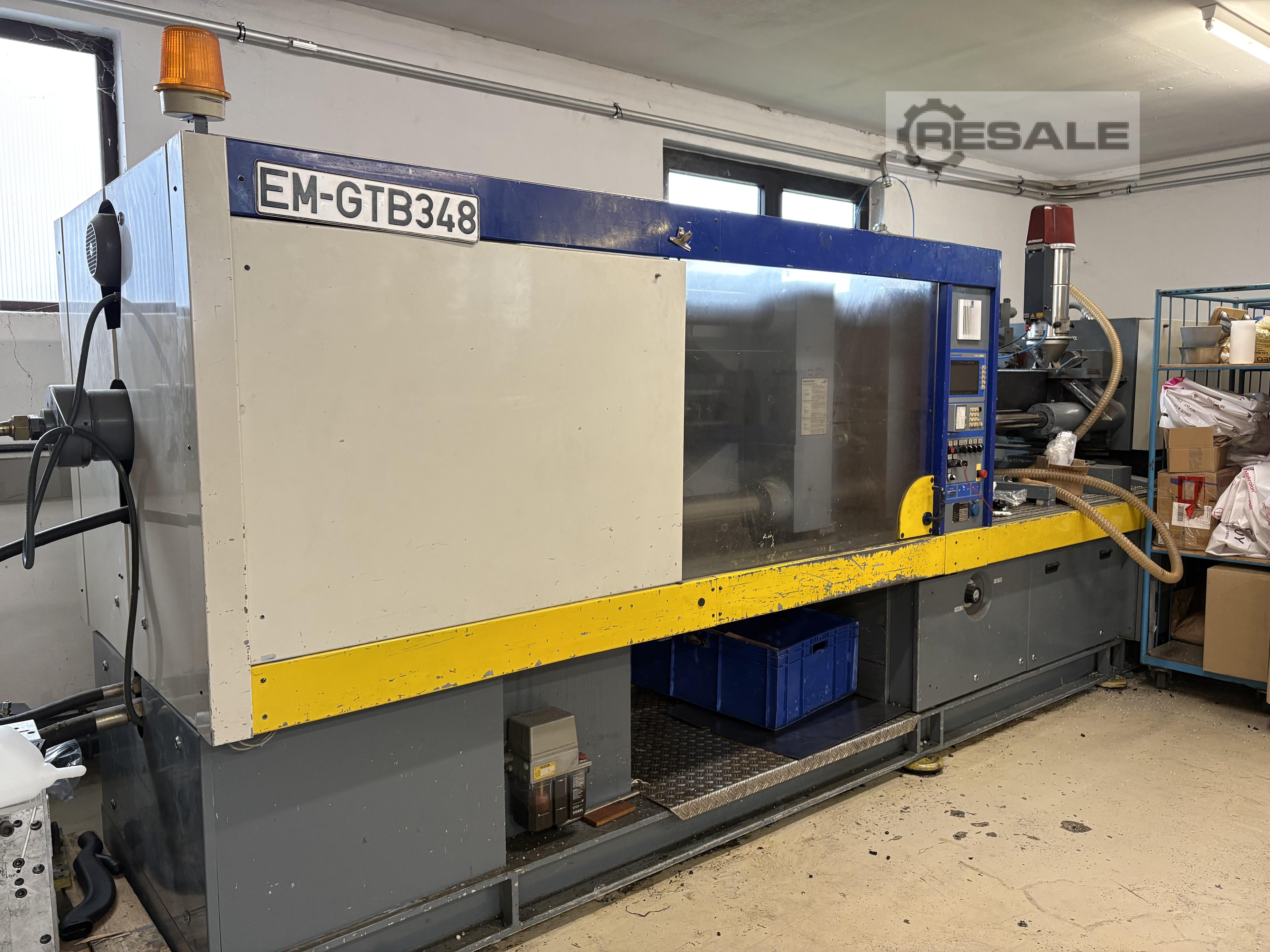

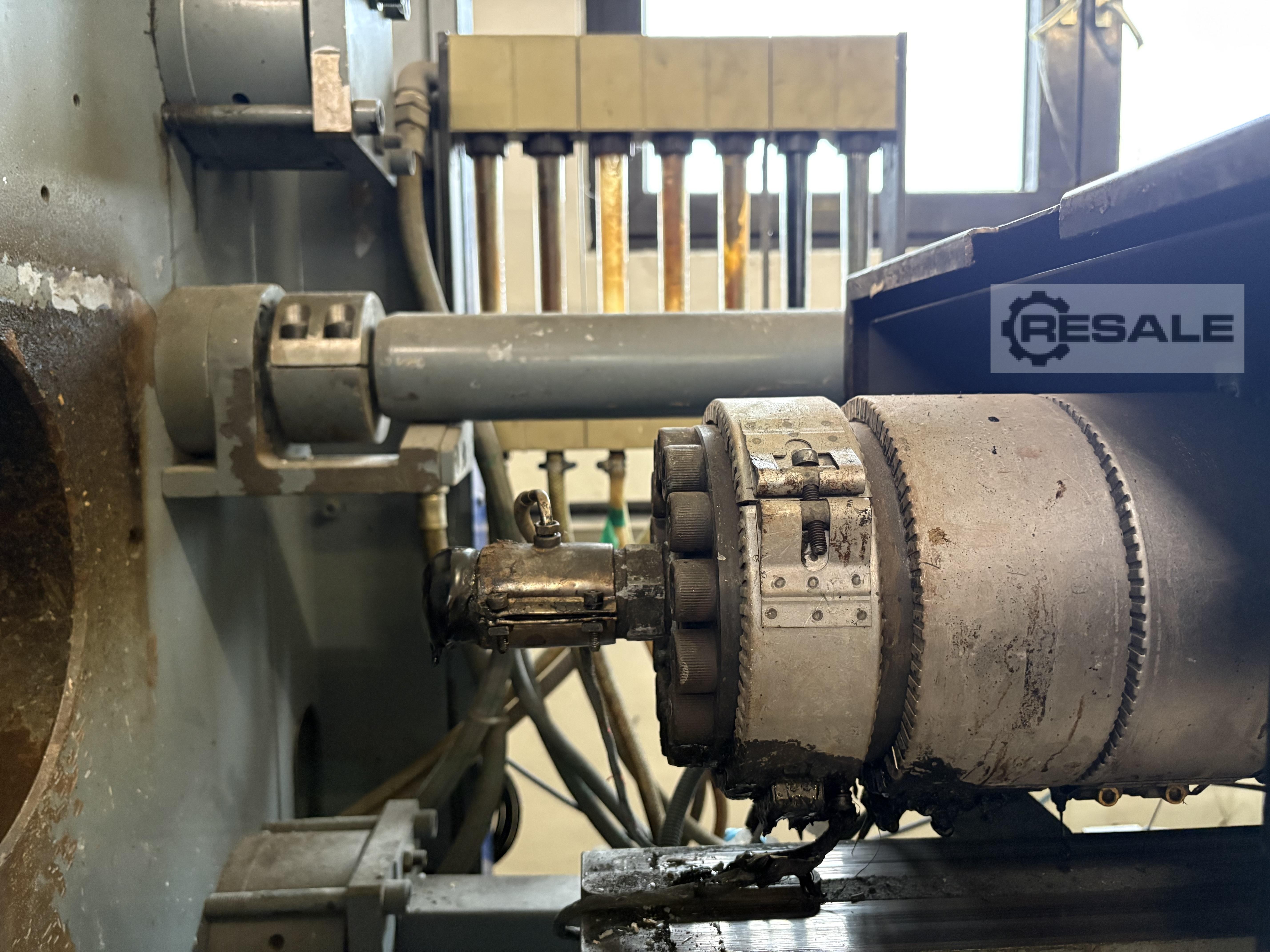

Injection moulding machine Battenfeld BK T 2500 BJ 1991

Key data: 2500 kN

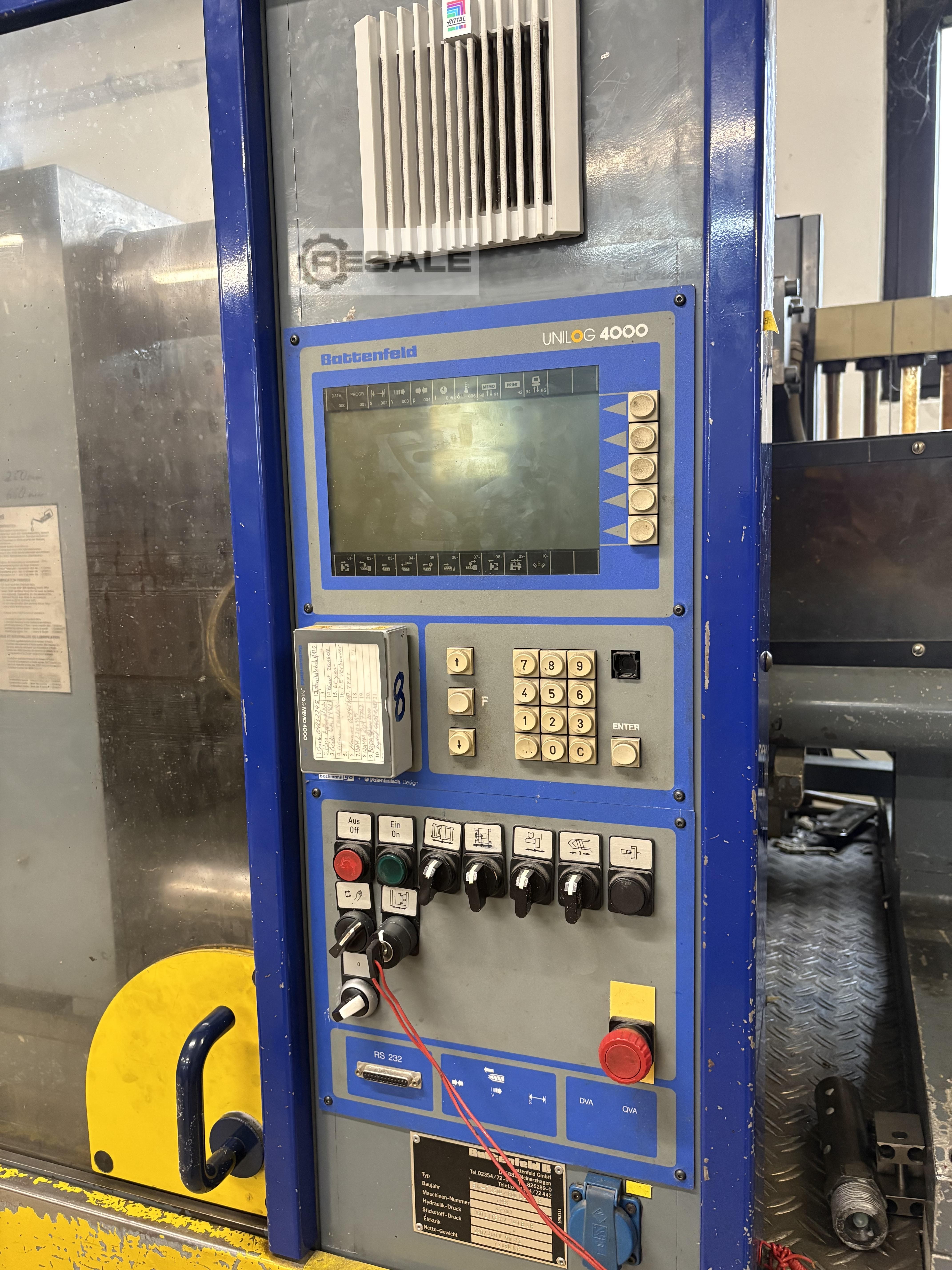

Year of manufacture 1991 Clamping force: 250 tons. Control: Unilog 4000 B The machine is still connected and in operational condition

Key data: 600 kN, 97 g/PS, 35 mm

Arburg 370S-600-150 Injection Moulding Machine (258) Number: 258 Availability: in stock Year of production: 2003 Producer: Arburg Condition of Injection Molding Machine: Used Screw diameter [mm]: 35 Injection weight [g]: 97 Injection pressure [bar]: 1620 Clamping force [kN]: 600 Gap spacing [mm]: 370 x 370 Plate size [mm]: 570×570 Minimum mould height [mm]: 200 Control Type: Selogica Tongue: German Installed power [kW]: 22,5 Working time [h]: 68963 Weight [kg]: 3630 Dimensions [mm]: 4000 x 1500 Robot connection: Yes Air Valve: 1x Core string: 1x Feed hopper: NO

closing pressure:6600 kNweight of the machine ca.:45,5 t

Key data: 500 kN

Clamping force: 500 kN Clamping plate: 540 x 540 mm Tool opening travel: 350 mm Tool installation height min.: 200 mm Opening width: 500 mm Ejector stroke: 100 mm Total weight: approx. 2,300kg

Hydraulic injection moulding machine manufactured in 2000. This Engel ES1800/300HL features a clamping force of 3000 kN and a maximum opening stroke of 850 mm. It offers multiple screw diameter options of 60 mm, 70 mm, and 80 mm, along with a mould installation height of 350 mm. If you are looking to get high-quality injection moulding capabilities, consider the Engel ES1800/300HL machine we have for sale. Contact us for further details.

Engel E-Victory 170H/50V/120 combi (2015) 2k machineCC300 controllClamping force: 1200 kNMould min-max: 300mmTotal tool max height: 800 mmplate size : 740 x 680mmOpening stroke: 505 mmEjector stroke: 130 mmEjector force: 39.8 kNPump drive power: 15 kWInjection unit 1Screw diameter: 25 mmMax. swept volume: 59 cm³Screw speed max: 400 r/minScrew speed max (current): 400 r/minInjection rate: 109 cm³/sInjection rate (increased): 109 cm³/sSpecific injection pressure: 2400 barSpecific injection pressure (increased): 2400 barInjection unit 2Screw diameter: 20 mmMax. swept volume: 25 cm³Screw speed max: 450 r/minInjection rate: 104 cm³/sSpecific injection pressure: 2400 barMachine with conveyor.Working hours : 41.427 hPossible to buy robot Engel VIPER 20 Linear (Z=3320mm)

2 x Injection moulding machines Engel VC 2460/180 tech BJ 2023

Key data: 10000 kN, 135 mm

ENGEL 16050/1000 - 1000T Clamping force: 1000 T Platen dimensions (h × v): 1990 × 1740 mm Distance between tiebars (h × v): 1400 × 1150 mm Mold thickness (min - max): 400 - 1200 mm Screw diameter: 135 mm Injection capacity: 8875 cm³ Specific injection pressure: 1980 kg/cm² (≈ 1940 bar) Equipment: • Bi-material barrel (screw and cylinder) • 4 cores ENGEL 1000 Tonnes – 2 identical machines Year 2003: 47,200 h Year 2004: 50,500 h

Key data: 250 mm, 21 , 18

Screw diameter: 18 or 25 mmStroke volume: 23 / 44 cm³Injection weight in polystyrene: 21 / 40 g/hpInjection pressure: 2,500 / 1,550 barClamping force: 25 t270 x 270 mmTool installation height min.: 200 mmOpening distance: 300 mmCONTROL: SelogicaScreen text: german / english Instruction manual: german / german Euromap 67 Pump drive power: 7.5 kWTotal weight: 2,500 kgDimensions L x W x H: 3.0 x 1.3 x 1.9 m Payment terms: 100 % before taking over the machine, net only

Key data: 1000 mm, 184 , 40

Screw diameter: 40 mmDisplacement: 201 cm³Injection weight in polystyrene: 184 g/hpInjection pressure: 2,000 barClamping force: 100 t470 x 470 mmTool installation height min.: 350 mmOpening distance: 350 mmCONTROL: SelogicaScreen text: german / german Instruction manual: german / german Multilift H Core pulls: 2xPump drive power: 22 kWTotal connected load: 36.0 kWTotal weight: 5,400 kgMachine dimensions L x W x H: 4.5 x 1.6 x 2.1 m m m Paymentterms: 100 % before taking over the machine, net only

Key data: 1000 mm, 184 , 40

Screw diameter: 40 mmDisplacement: 201 cm³Injection weight in polystyrene: 184 g/hpInjection pressure: 2,000 barClamping force: 100 t470 x 470 mmTool installation height min.: 350 mmOpening distance: 350 mmCONTROL: SelogicaScreen text: german / german Instruction manual: german / german Multilift H Core pulls: 2xPump drive power: 22 kWTotal connected load: 36.0 kWTotal weight: 5,400 kgMachine dimensions L x W x H: 4.5 x 1.6 x 2.1 m m m Paymentterms: 100 % before taking over the machine, net only

Key data: 6500 mm, 2013 , 80

Screw diameter: 80 mmInjection weight in polystyrene: 2013 gClamping force: 6500 kNScrew diameter: 80 mmStroke volume: 2212 cm³Injection weight in polystyrene: 2013 g/hpInjection pressure: 2,090 barClamping force: 650 tLights Tie-bar spacing H x V: 1040 x 910 mmTool installation height - min.: 400 mmOpening distance: 500/1350 mmMicroprocessor control: KEBA 2985- 15' tou screenScreen text: german Instruction manual: german FHK interface for robots: Euromap 67 Core pull: 4x Without material hopper / Without water battery: -/- Pump drive power: 65 kWTotal connected load: 84 kWTotal weight: 28,000 kgTotal size: 7.7 x 2.6 x 2.7 mPayment terms: 100 % before taking over the machine, net only

Hydraulic injection moulding machine manufactured in 2015. This Negri Bossi 1300H-400 features a screw diameter of 40 mm and a real injection volume of 232 cc. It offers a maximum clamping force of 1300 kN and a max opening stroke of 420 mm. If you are looking to get high-quality injection moulding capabilities, consider the Negri Bossi 1300H-400 machine we have for sale. Contact us for further details.
