lathes used for sale (2,993)

swing diameter: max. 450 mmchucking diameter: 400 mmcontrol: Siemens 840D (Index)Main spindle:: Max. rpm: 4.200 min/-1power capacity - main spindel: ( 35,5 / 56 ) kWmax. Torque: ( 340 / 550 ) NmC-Axis: 0,001 °turret:: number of toolpositions: 2x 12 posdriven statition: 2x 12 posworktool system: VDI 30 max. spindle speed driven tools: 6.000 U/min.power capacity - driven tools: 9,5 kWmax. Torque: 40%: 19 NmY - Axis: +/- 90 mmB-Axis: +270° / -90 °axis stroke:: x-axis: 730 mmz-axis: 340 mmy-axis: +/- 90 mmb-axis: +270° / -90 °feeds:: rapid traverse: X: 40 / Z: 30 m/minpallet changer:: numbers of pallets: 24 pos.size of pallet: 410 x 300 mmmax. workpiecediameter: 300 mmmax. workpiece weight: incl. Pallet: 25 kgChain width: 75 mmband speed: 7,5 m/mintotal power requirement: 56 kWweight of the machine ca.: 9,0 tdimensions of the machine ca.: 8,5 x 6,0 x 2,7 mDocuments: Chip conveyo ...

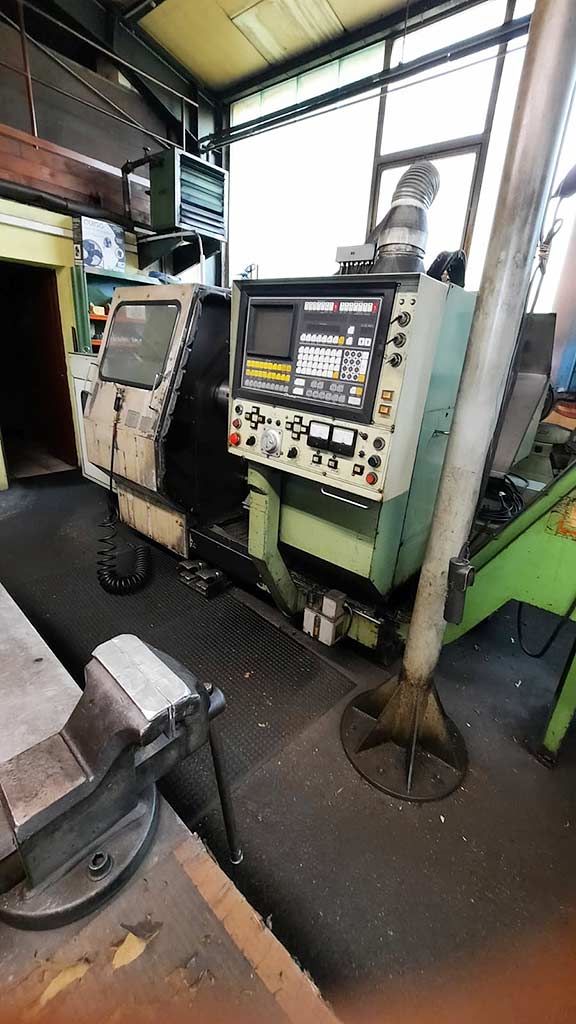

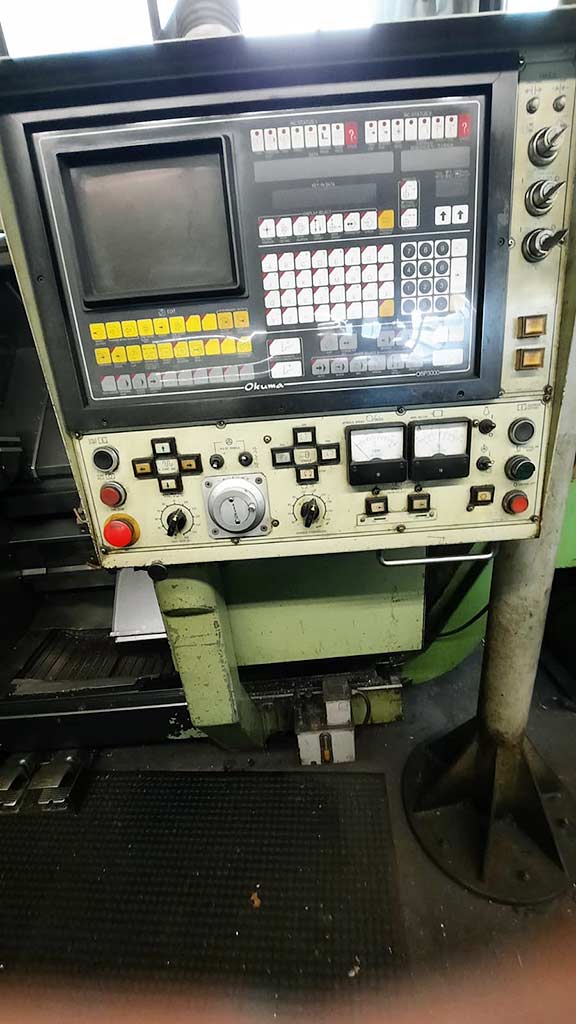

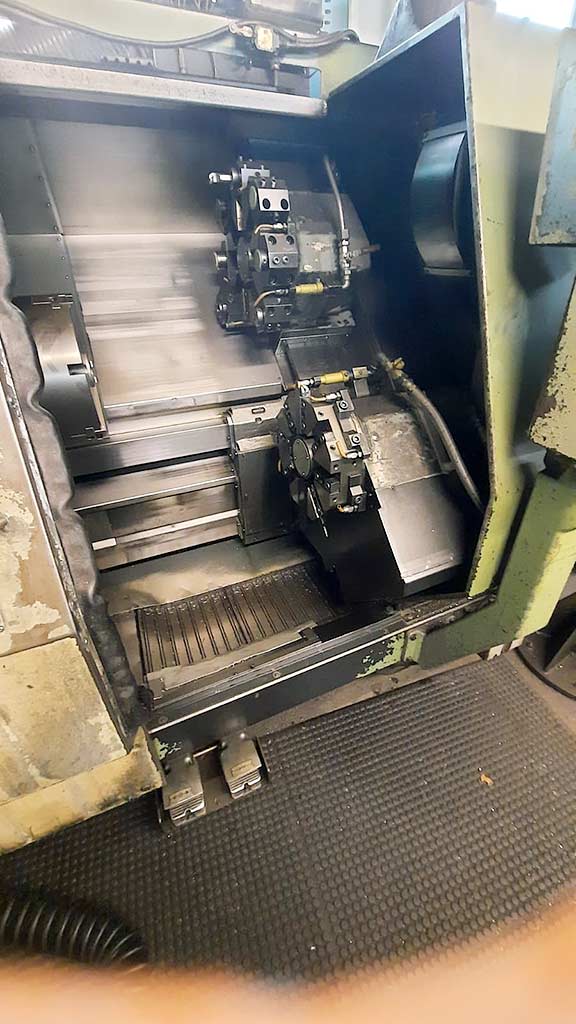

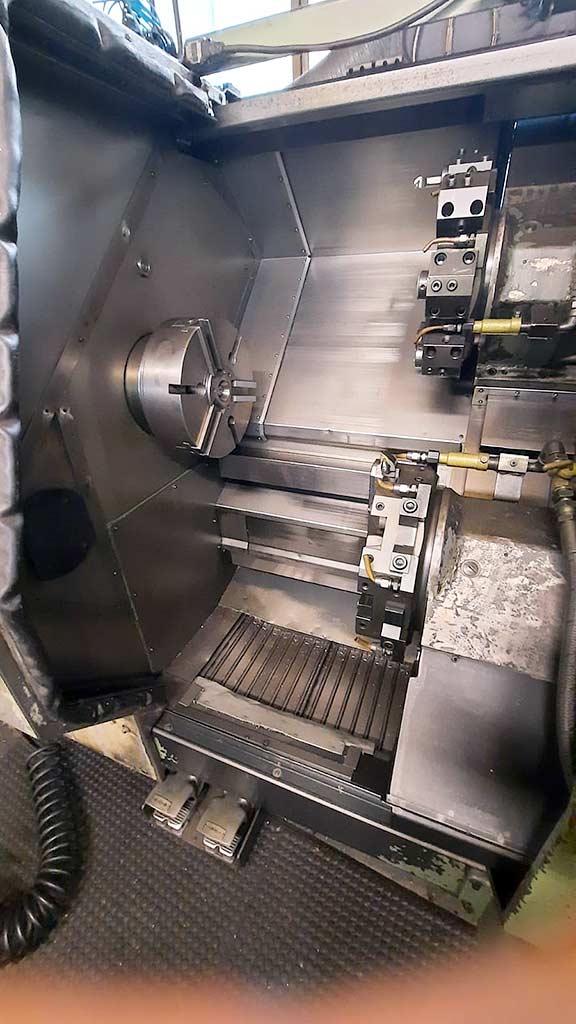

A CNC slant bed lathe Okuma is available. Chuck diameter: 200mm, swing diameter: 400mm, turning diameter: 300mm, turning length: 470mm, tool stations: 8. Machine dimensions X/Y/Z: approx. 4000mm/2150mm/2150mm, weight: approx. 5500kg, control: OSP 3000 L. Documentation available. An on site inspection is possible.

The machine is in good technical condition, after prior agreement it is possible to test it. designed for serial and piece production. It is one of the classic 2-axis CNC lathes (X, Z) with a turret head and is often used in the engineering production of smaller and medium-sized parts. Max. turning diameter: approx. 320 mm Max. turning length: approx. 500 mm Max. diameter above the bed: approx. 500 mm Max. diameter above the slide: approx. 300 mm Spindle Chuck diameter: 210 mm (8") Spindle passage: approx. 52–65 mm Spindle speed: up to 4500 rpm Main motor power: approx. 11–15 kW X-axis: approx. 200 mm Z: approx. 500 mm Rapid traverse: up to 20–24 m/min Turret head 8 or 12 tool positions, possibility of driven tools in the M version Control system Most common: Fanuc 0i-T / Fanuc 21i-T Machine weight approx. 4,000 – 5,000 kg

DMG MORI CNC Tower NRX2000MC TECHNICAL FEATURES: Year: 2017 NC Type: MITSUBISHI M730UM Maximum diameter Machinable: 150 [mm] X-axis travel: 100 [mm] Z-axis travel: 220 [mm] X1 Axis Fast Feed Speed: 30000 [mm/min] Fast feed speed X2 axis: 30000 [mm/min] Z1 axis fast feed speed: 30000 [mm/min] Z2 axis fast feed speed: 30000 [mm/min] Spindle Nose: JIS A2-5 Maximum length Machinable Spindle 1: 100 [mm] Maximum length Machinable Spindle 2: 100 [mm] Maximum speed Spindle 1: 6000 [rpm] Maximum speed Spindle 2: 6000 [RPM] Turret Turning Tool Power 1: 1.5 [kW] Turret 2 rotating tool power: 1.2 [kW] Number of posts - Turret 1 : 10 Maximum speed Rotating Tools - Turret 1: 10000 [RPM] Number of posts - Turret 2: 10 Maximum speed Rotating Tools - Turret 2: 10000 [RPM] Installed power: 38 [kVA] Supply voltage: 400 [V] Weight: 5700 [Kg] EQUIPMENT INCLUDED: x2 Left + Ri ...

Cycles lathe Microturn BNC 1840 Description: Sell our very well preserved cycles lathe Microturn BNC 1840 with turning length 1000mm and FAGOR 8055i control. Technical data: - Tip height 230mm - Max. turning length 1000mm - Speed max. 4500 1/min

turning diameter: 300 mmturning length: 1700 mmswing diameter over bed slide: 600 mmtotal power requirement: 12,5 kWweight of the machine ca.: tdimensions of the machine ca.: mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: gebraucht : 2020 : 1658 : prompt, Zwischenverkauf v : Bulgarien : 26500 €: 1 : 22600 €: 400 mm: 1000 mm: 200 mm: 52 mm: 235 mm: 320 mm: 6 : 6 M: 12 : 50-2.240 1/min: 80 : 0.015 - 0.6 mm/U: 0.0075 - 0.3 mm/U: 40 : 0.25 - 7.5 mm: 120 - 4 Gänge/: 0.0625 - 1.875 : 235 mm: 110 mm: 50 mm: 4 MK: 100 mm: 4 kW: 2750 mm: 1100 mm: 1600 mm: 1540 kgThis machine is used in our workshop for repair work,therefore it has only been used very little so far.(New price € 36,070.00)driven by manual transmission3-axes digital readout Fagor 40iquick change toolpostMultifix Type Bwith4 holders (3 square, 1 round)3-jaw chuck Bison 3204/DIN6350, Ø 200 mmspindle noseNr. 6 DIN 55027four way rapid traverse devicespindle dead centercoolant equipment1 pce. flange plate for lathe chuckØ 200 mm1 adapter sleevefull length rear splash guardleadscrew and shaft protectionsafety guard for the chucktoolholder guardl ...

faceplate diameter: 10000 mmswing diameter: 14000 mmturning height: 8000 mmControl: Siemens Sinumerik 840 D workpiece weight max.: 500 tfaceplate turning speed range: 0,2 - 35 U/mindrive motor: 300 kWram head dimension: 600 x 600 mmmax. ram stroke: 4000 mmmilling drive: 100 kWhob turning speeds: 3000 U/minrapid traverse x + z axis: 10 m/mintotal power requirement: - kWweight of the machine ca.: 350 tMachine has never been used and is still original, seaworthy packed andstored.equipped with:- CNC control Siemens Sinumerik 840 D- Hydrostatic axes- Hydrostatic table- Milling device- Hirth couplings for tool holderAcessories:• VERTICAL HEAD ISO50 BIG PLUS AD 8T5060164• VERTICAL HEAD ISO50 BIG PLUS AD 6000RPM 8T5060165• HORIZZONTAL HEAD ISO50 BIG PLUS 8T5060163• UNIVERSAL HEAD TU-50- ISO50 AD BIG PLUS 8T5060171• HEAD DANDREA UT-8-800-S 8T5060166• TOOL HOLDER DEVICE 8T1203783• T ...

turning diameter: 380 mmturning length: 580 mmswing dia.: 695 mmX-Axis movement: 234 mmY-Axis movement: 100 mmZ-Axis movement: 575 mmMinimum indexing C-Axis main Spindle: 0,0001 °Number of tools on turret: 12 Number of driven tools: 12 xSpindle speed driven tools: 4500 1/minSpindle motor driven tools: 5,5 / 3,7 kWTool type: Mazak VDI control: MATRIX NEXUS II Main Spindle:: Spindle Speed: 5000 1/minspindle motor: 26 / 22 kWspindle bore diameter: 76 mm2nd Spindle:: spindle turning speed range: 6000 U/minspindle motor: 11 / 7,5 kWspindle bore: 80 mmtotal power requirement: 43 kVAWeight: 5,5 tdimensions of the machine ca.: 2,8 x 2,1 x 1,9 m- Mazatrol Nexus II CNC control- Main and counter spindle- 12-station tool turret with driven tools and Y-axis- 3-jaw chuck-- Main: 8-- Counter: 6- Automatic presetting (Tool Eye).- Automatic workpiece catcher.- Side belt chip conveyor (Mayfran).- Enhan ...

turning diameter: 500 mmturning length: 1200 mmcontrol: Siemens 840D greates pass round over bed: 700 mmMain spindle:: turning speed range - main spindle: 20 - 5000 min/-1power capacity - main spindel: 25 /34 kWmax. Torque: NmC-Axis: 0,0001 °spindle diameter: 67 mmmilling spindle: milling spindle motor: 13 / 22 milling head speed: 12000 U/minb-axis: +/- 110 °axis stroke:: x-axis: 450 mmy-axis: +/- 100 mmz-axis: 1300 mmfeeds:: rapid traverse ( X / Y / Z ): 60 / 22,5 / 30 m/minfeed power: 5,6 / 5,6 / 7,4 kNturret:: number of toolpositions: 24 pos.tool taper: Capto max. chucking diameter: 250 mmtail stock: tailstock quill taper MT: 5 tailstock adjustment: 1200 mmtotal power requirement: 65 kVAweight of the machine ca.: 8 tdimensions of the machine ca.: 6 x 2,7 x 2,1 mCNC - Turning and milling centre - 5 axes simultaneous- CNC control Siemens 840D SolutionLine with ShopTurn- C-axis  ...

turning diameter: 340 mmturning length: 950 mmcontrol: OSP P300L turning diameter over bed: 580 mmturning dia. over face-slide: 470 mmWorkingspindle:: power capacity - main spindel: 22/15 kWturning speed range - main spindle: 45 - 5000 U/minspindle diameter: 120 mmspindle bore: 80 mmmax. bar capacity: 72 mmspindle head: JIS A2-6 spindle cone: 82 x 2° Torque: 350 Nmtravel -z axis: 1010 mmfeed per revolution: 0,001 - 1.000 mmrapid traverse: 30 m/minx - axis: travel -x axis: 260 mmfeed per revolution: 0,001 - 1.000 mmrapid traverse: 25 m/minC-Axis: 0,001 °Rapids C - Axes: 200 min -1rapid traverse: 12 m/miny-axis: 120 mmtotal power requirement: 31,7 kVAweight of the machine ca.: 4,6 tdimensions of the machine ca.: 2,2 x 1,8 x 1,8 mâ½ing and milling centreequipped with:- CNC control OSP P300L- NC tailstock- 12-position turret with driven tool station (BMT 60) 6000 rpm- C, Y-axis- Chip ...

Fully functional CNC turning and milling center CNC Lathe Manufacturer: Index Type: G250 G 250 Year of Make: 2004 Location of the machine: 76661 Philippsburg The machine can be viewed on site. It is still energized and works perfectly. You can make an appointment for a viewing at any time. We would love to hear from you. We will be happy to answer any questions you may have at any time. We are looking forward to a good cooperation and thank you for your interest in advance.

Boley BE-42 CNC Lathe TECHNICAL FEATURES: Year: 2002 NC Type: MITSUBISHI Meldas 635LCC Maximum diameter Machinable: 140 [mm] Z1 axis stroke: 200 [mm] X1 axis stroke: 170 [mm] Z2 axis stroke: 395 [mm] X2 axle stroke: 110 [mm] Z3 axle stroke: 170 [mm] X3 axis stroke: 110 [mm] Brooch: Size 48 DIN 6343 Spindle Bore: 42 [mm] Minimum speed. Spindle: 80 [rpm] Maximum speed Spindle: 8000 [rpm] C-axis indexing accuracy: 0.001 [°] Spindle power: 7.5 [kW] Counter-spindle bore diameter: 42 [mm] Minimum speed. Spindle: 60 [RPM] Maximum speed Spindle: 6000 [rpm] C-axis sub-spindle indexing accuracy: 0.001 [°] Spindle power: 2.2 [kW] Toolholder type: VDI 20 Number of stations - Turret 1 : 12 Number of motorized stations - Turret 1 : 12 Maximum speed Rotating Tools - Turret 1: 4500 [RPM] Number of stations - Turret 2 : 12 Number of motorized stations - Turret 2: 12 Maxi ...

Universal lathe STANKO 1M63/1250

Control Mazak Mazatrol SmoothAi Rotary diameter. [mm] 600 Turning length [mm] 850 General: Control Mazak Mazatrol SmoothAi Processing diameter max. 600 mm Processing length max. 850 mm Main spindle: Motor spindle technology Speed 6,000 rpm Power 11 kW Torque max. 184 Nm Bar passage 51 mm C-axis 0.0001° Chuck 3-jaw chuck Clamping Cylinder Hollow Clamping Cylinder Sub-spindle: Motor spindle technology Speed 6,000 rpm Power 11 kW Torque max. 184 Nm Bar passage 51 mm C-axis 0.0001° Tailstock function: Yes Tool carrier (X/Y/Z/B): Technology Travelling column with milling spindle X-axis 535 mm Y-axis 210 mm Z-axis 900 mm B-axis -30° / +210° Milling spindle speed 20,000 rpm Power 24 kW Tool magazine: Technology Shelf Magazine Number of stations 250 Tool Changer Double Gripper Equipment / Accessories: Chip disposal chip conveyor Coolant suppl ...

turning diameter: 540 mmturning length: 1520 mmcontrol: Fanuc 18i-TB total power requirement: kWweight of the machine ca.: 15500 kgdimensions of the machine ca.: mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter: 500 mmturning length: 610 mmcontrol: Seicos total power requirement: kWweight of the machine ca.: 5250 kgdimensions of the machine ca.: mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter: 350 mmturning length: 1186 mmcontrol: Fanuc total power requirement: kWweight of the machine ca.: tdimensions of the machine ca.: mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

CONTROLS  CNC controls NUM 1060 WORKING RANGE TURNING  swing diameter (max): 2000 mm  workpiece weight max.: 25000 kgCROSS BEAM SLIDE  - rotation speeds (min): 2 /min  - rotation speeds (max): 450 /minELECTRICAL SPECIFICATIONS  mains voltage: 400 V  mains frequency: 50 HzDIMENSIONS / WEIGHTS  space requirements -left/right-: 4100 mm  space requirements -front/back-: 3500 mm  total height: 5600 mm

CONTROLS  CNC controls MAZAK SMOOTH G BASIC FUNCTIONS  number of spindles: 2   number of turrets: 2   live positions: yes MAIN SPINDLE  spindle revolutions (max): 45000 /min  drive power: 22 kW  spindle bore diameter: 65 mm  spindle positioning: 0.0001 °  c-axis: yes COUNTER SPINDLE  spindle revolutions (max): 5000 /min  drive power: 22 kW  spindle positioning: 0.0001 °  c-axis: yes X/Z SLIDE  Z-axis travel: 1225 mm  X-axis travel: 207 mm  Y-axis travel: 100 mm  distance spindle  tool holder (max): 344 mm  number of tool positions (total): 12   number of live positions: 12   - rotation speeds (max): 6000 /minX/Z SLIDE  Z-axis travel: 1280 mm  X-axi ...

CONTROLS  CNC controls MAZATROL 640 T NEXUS BASIC FUNCTIONS  number of spindles: 1   number of turrets: 1   live positions: yes WORKING RANGE TURNING  turning diameter (max): 380 mm  bar diameter (max): 77 mmMAIN SPINDLE  spindle revolutions (max): 4000 /minX/Z SLIDE  Z-axis travel: 575 mm  X-axis travel: 230 mm  - rotation speeds (max): 4500 /min  - drive power: 5.5 kWAdditional options• Programmable tailstock• Kitagawa B210 3-jaw chuck• Interface for bar magazine• Tool holder package, including driven tool holder• Coolant pump, 8 bar• Chip conveyor

CONTROLS  CNC controls MAZATROL 640 MT PRO BASIC FUNCTIONS  number of spindles: 2   live positions: yes WORKING RANGE TURNING  turning diameter (max): 660 mm  worpiece length max.: 1045 mmMAIN SPINDLE  spindle revolutions (max): 4600 /min  drive power: 22 kW  c-axis: yes COUNTER SPINDLE  spindle revolutions (max): 5000 /min  drive power: 18.5 kW  c-axis: yes X/Z SLIDE  rapid traverse Z: 50000 mm/min  rapid traverse X: 50000 mm/min  rapid traverse Y: 40000 mm/min  - rotation speeds (max): 12000 /min  - drive power: 18.5 kWTOOL MAGAZINE  number of positions: 40   tool diameter max.: 90 mm  - with free neighbour positions: 125 mm  tool length max.: 300 mm  tool weight max.: 10 kgX1  ...

spindle passage: 230 mmturning diameter over bed: 970 mmturning diameter over slide rest: 720 mmControl: Fanuc OiTD turning length: 2200 mmtotal power requirement: 37 kWweight of the machine ca.: tdimensions of the machine ca.: mYear of manufacture 2013Control: Fanuc OiTDOther controls possibleTurning length (mm) 2200Max. turning diameter (mm) 970Max. turning diameter over slide (mm) 720Spindle diameter (mm) 230Diameter range (mm) 850Speed: 500kW 37Voltage: 400VHz 50Including:4-jaw chuck, Ø 800 mm rearPneumatic 3-jaw chuck, Ø 600 mm frontThe tech. Data are manufacturer or operator information and therefore non-binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively.About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interest ...

faceplate diameter: 4770 mmswing diameter: 10000 mmturning height: 3500 mmtable load: 100 tturning speeds: 40 U/mintable drive: 125 kWControl: Siemens type: 840 D Rest: 1 slide adjustment: 1421 mmram head dimension: 250x250 mminclination: +/-30 °live tooling: 16 Kwspindle taper ISO: 50 spindle turning speed range: 3000 U/minchip conveyor: total power requirement: 150 kWweight of the machine ca.: tdimensions of the machine ca.: mMachiney Refurbished 2003Table extension up to 8000 mmThe tech. Data are manufacturer or operator information and therefore non-binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively.About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business ...

turning diameter: max. 2.800 mmdiameter of spindle flange: 1.100 mmmax. swing diameter: 3.000 mmcontrol: 840 D sl SiemensMain spindle:: turning speed range - main spindle: max. 230 min/-1power capacity - main spindel: 206 kWmax. Torque: 53.000 Nmmax. load: - kgC-Axis: Tool Mount:: Rechts / Righttool taper: Capto C8 swivellable: B: 0 - 270 °Spindle speed - driven tool pos.: max. 6.000 min -1max. Torque: 120 NmTool Mount:: Links / Lefttool taper: Capto C8 tool magazin:: Rechts / Rightnumber of toolpositions: 41 pos.max. tool weight: 20 kgmax. tool length: 400 mmworkpiece diameter at full load: 150 mmtool taper: Capto C8 tool magazin:: Links / Leftnumber of toolpositions: 25 pos.workpiece diameter at full load: 150 mmmax. tool weight: 20 kgmax. tool length: 400 mmtool taper: Capto C8 axis stroke:: x-axis: 1: 2.700 mmx-axis: 2: 2.700 mmz-axis: ( 2x 1.000 ) mmfeeds:: rapid traverse:  ...

turning diameter: max. 3.800 mmdiameter of spindle flange: 1.900 mmmax. swing diameter: 3.800 mmcontrol: 840 D sl SiemensMain spindle:: turning speed range - main spindle: max. 100 min/-1power capacity - main spindel: 200 kWmax. Torque: 67.000 Nmgear box: 1:30 max. load: - kgC-Axis: Tool Mount:: Rechts / Righttool taper: Capto C8 swivellable: B: 0 - 270 °Spindle speed - driven tool pos.: max. 6.000 min -1max. Torque: 120 NmTool Mount:: Links / Lefttool taper: Capto C8 tool magazin:: Rechts / Rightnumber of toolpositions: 41 pos.max. tool weight: 20 kgmax. tool length: 400 mmmax. tool diameter: 120 mm0: 125 mmtool taper: Capto C8 tool magazin:: Links / Leftnumber of toolpositions: 25 pos.workpiece diameter at full load: 150 mmmax. tool weight: 20 kgmax. tool length: 400 mmaxis stroke:: x-axis: 1: 2.800 mmx-axis: 2: 3.200 mmz-axis: 1.000 mmfeeds:: rapid traverse: X: 32 / Z: 20 m/m ...

turning diameter: max. 400 mmturning length: 600 mmcontrol: 840 D Siemensgreates pass round over bed: 500 mmSwing dia. over traverse guideway: 300 mmcentre distance: 615 mmMain spindle:: turning speed range - main spindle: 20 - 6.000 min/-1power capacity - main spindel: 16 kWmax. Torque: 155 Nmmax. usable bar diameter: 65 mmspindle nose: 140H5 C-Axis: 0,001 °Subspindel:: Spindle speed range subspindle: 20 - 6.000 min/-1power capacity - Sub spindle: 7,5 kWmax. Torque: 48 Nmspindle diameter in front bearing: 75 mmspindle bore: 37 mmmax. usable bar diameter: ( - ) mmspindle nose: 140H5 C-Axis: 0,001 °turret:: number of toolpositions: 12 pos.Number of driven toolspositions: 12 pos.Spindle speed - driven tools: max. 5.000 min -1power capacity - driven tools: 3,7 kWmax. Torque: 24 Nmtool taper: VDI 30 Tool dimensions with square shank: 20 x 20 mmaxis stroke:: x-axis: 160 mmy-axis: +/- 32 ...

turning diameter: 250 mmturning length: 400 mmcontrol: Siemens 840 D swing diameter: max. 300 mmworkpiece length - max.: 400 mmtravel -x axis: 280 mmfeed in x - axis: 0,1 - 30 m/minrapid traverse X-axis: 30 m/mintravel -z axis: 1150 mmfeed range Z-direction: 0,1 - 60000 mm/minrapid traverse Z-axis: 60 m/minspindle bearing diameter: 90 mmspindle head DIN 55026 - Size: A6 turning speeds: 1 - 5000 U/mintool turret 12 times: C4 Captototal power requirement: 45 kWweight of the machine ca.: 11 tdimensions of the machine ca.: 7,0 x 5,0 x 3,2 mCNC lathe with SIEMENS SINUMERIK 840D control, Screw conveyorwith chip breaker and return pumping station, NC-steady SMW-SLU-1-OLD Ø10-70mm, 12-fold tool turret SAUTER 0.5.460.220, NC tailstock, Artis monitoring, Pickup-loading incl. conveyor.Without coolant system, was connected to central supply.Machine can be inspected under power.The data for this ad  ...

turning diameter: 250 mmturning length: 400 mmcontrol: Siemens 840 D swing diameter: max. 300 mmtravel -x axis: 280 mmfeed x-axis: 0,1 - 30.000 mm/minrapid traverse X-axis: 30 m/mintravel -z axis: 1.150 mmFeed z- axis: 0,1 - 60.000 mm / min.rapid traverse Z-axis: 60 m/minspindle bearing diameter: 90 mmspindle head DIN 55026 - Size: A6 turning speeds: 1 - 5.000 U/mintool turret - number of stations: 12 tool taper: Capto C4 total power requirement: 45 kWweight of the machine ca.: 11 tdimensions of the machine ca.: 7,0 x 5,0 x 3,2 mCNC lathe with SIEMENS SINUMERIK 840D control, Screw conveyorwith chip breaker and return pumping station, NC-steady SMW-SLU-1-OLD Ø10-70mm, 12-fold tool turret SAUTER 0.5.460.220, NC tailstock, Artis monitoring, Pickup-loading incl. conveyor.Without coolant system, was connected to central supply.Machine can be inspected under power.The data for this ad was cre ...
