other metal working machines used for sale (11,745)

LINEAR AXLE:. - Number of moving slides:2 DIMENSIONS / WEIGHTS:. - space requirements length:7000 mm

turning diameter:220 mmturning length:- mmcontrol:- distance between milling spindels:800 mmspindle speed max.:12.000 U/mindaylight:66 mmmachine weight ab.:11 ttotal power requirement:90 kVAFanuc controlTwo turretsTwo spindlesSpindle bore 66 mm on both spindlesTwo Y-axesParts gripperHainbuch chuck on both spindlesTailstock functionChip conveyorTool eyeShort bar loaderTool holder package

on 4 pallets

Being metal and plastic profiles, various sizes.

LINEAR AXLE:. - Movement:3500 mm - Number of moving slides:1 DIMENSIONS / WEIGHTS:. - space requirements length:5000 mm

spindle diameter:221,44 mmx-travel:2.000 mmy-travel:2000 mmz-travel:1.250 mmb-axis:360 °table-size:1600 x 1800 mmmax. workpiece weight:12.000 kgWork spindle:130 mmtool adaptor:SK 50 Tool changer:60 - Fach Ø Flange Hollow Spindle:221,44 mmMax. Ø centering cone:180 mmspindle stroke:800 mmturning speeds:400 ? 1600 U/minfeed::bis 8000 U/minTable rotation axis B:1,5 U/minweight of the machine ca.:32 tControl pedestal, electrically height-adjustable approx. 1200 mm,Sawdust Conveyor,

Discharge 350mm.

mobile; without welding torch;

LINEAR AXLE:. - Movement:2500 mm - Number of moving slides:1 DIMENSIONS / WEIGHTS:. - space requirements length:4000 mm

turning diameter over bed:550 mmturning length:3.000 mmtotal power requirement:60 kWweight of the machine ca.:16 tMachine is suitable for pre-turning forged partsBoth bed slides can be used simultaneouslyVery high cutting performance

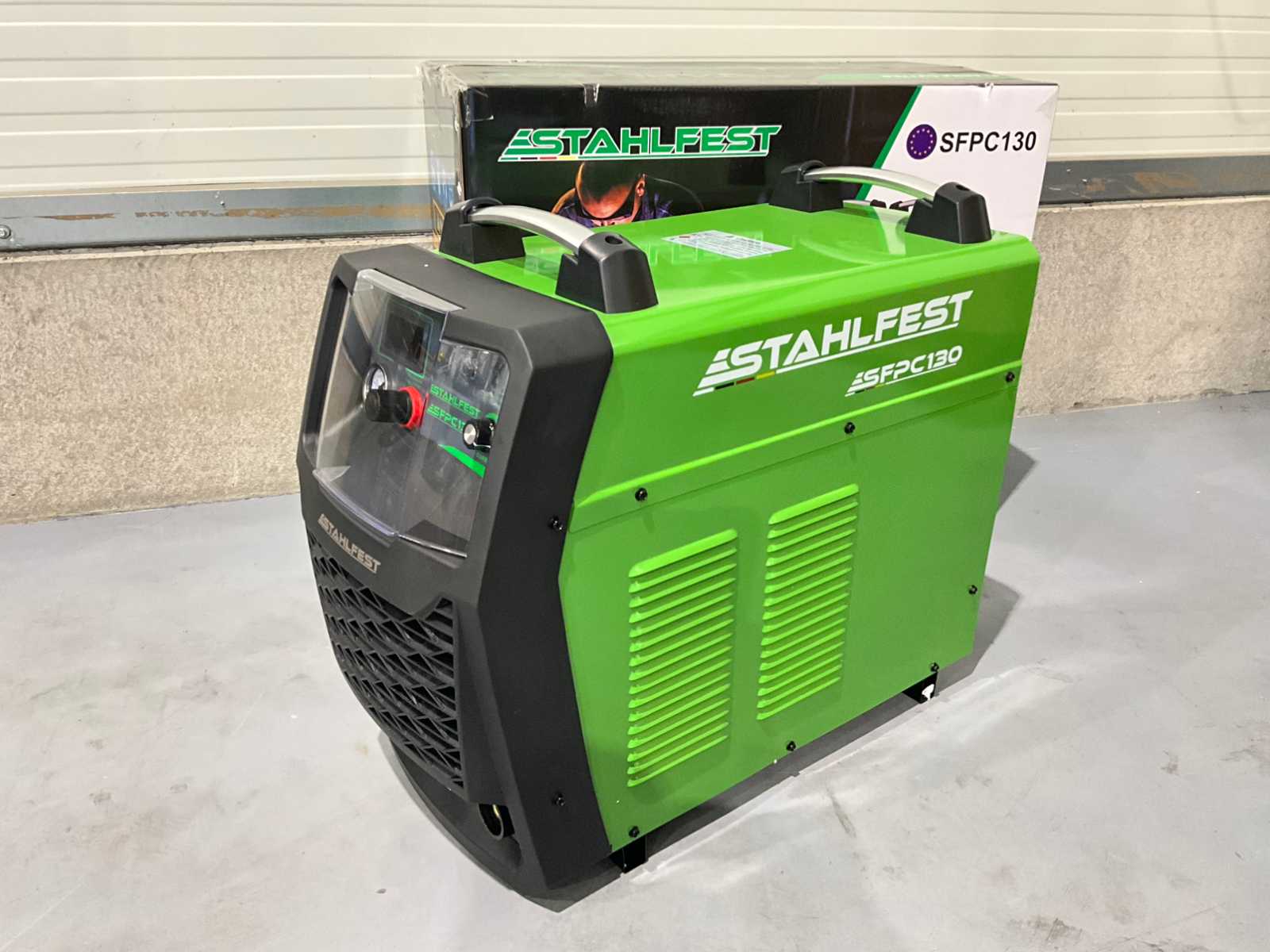

Rated power: 19 kVA; Rated current: 29 A; No-load voltage: 280 V; Output current adjustment: 30-120 A; Rated output voltage: 128 V; Max cutting thickness: 45 mm; Cyclic duration factor: 60%; Efficiency: 80%; Insulation grade: F; Protection grade: IP21; Arc-start: Contact 6093

Inventory number: 45725 -Working width approx. 2500 mm

turning diameter over bed:1.000 mmturning diameter over slide rest:750 mmturning length:5.000 mmtotal power requirement:30 kWMachine was overhauled in 2001

Spindle table distance: 100 - 730 mm, table dimensions: 950 x 510 mm, number of tool positions: 24, nominal power: 25 kVA, fuse: 32 A, voltage: 400 V 50 Hz, with machine vises and machine tools installed

Equipped with 20-piece short sizes 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 27, 30, 32; 18 piece long sockets sizes long power socket 8 , 9 , 10, 11 , 12, 13, 14, 15, 16, 17, 18, 19, 21, 22, 24, 27, 30, 32; Unused in box

PEDESTAL:. - Hole pattern for robot : Kuka low / medium load :. DIMENSIONS / WEIGHTS:. - total height:1200 mm

turning diameter over bed:1.000 mmturning diameter over slide rest:750 mmturning length:4.000 mmmax. workpiece weight:5.000 kgtotal power requirement:30 kWVery well suited for heavy roughing work

Galvanized steel; 40mm x 40mm; length approx. 4500mm

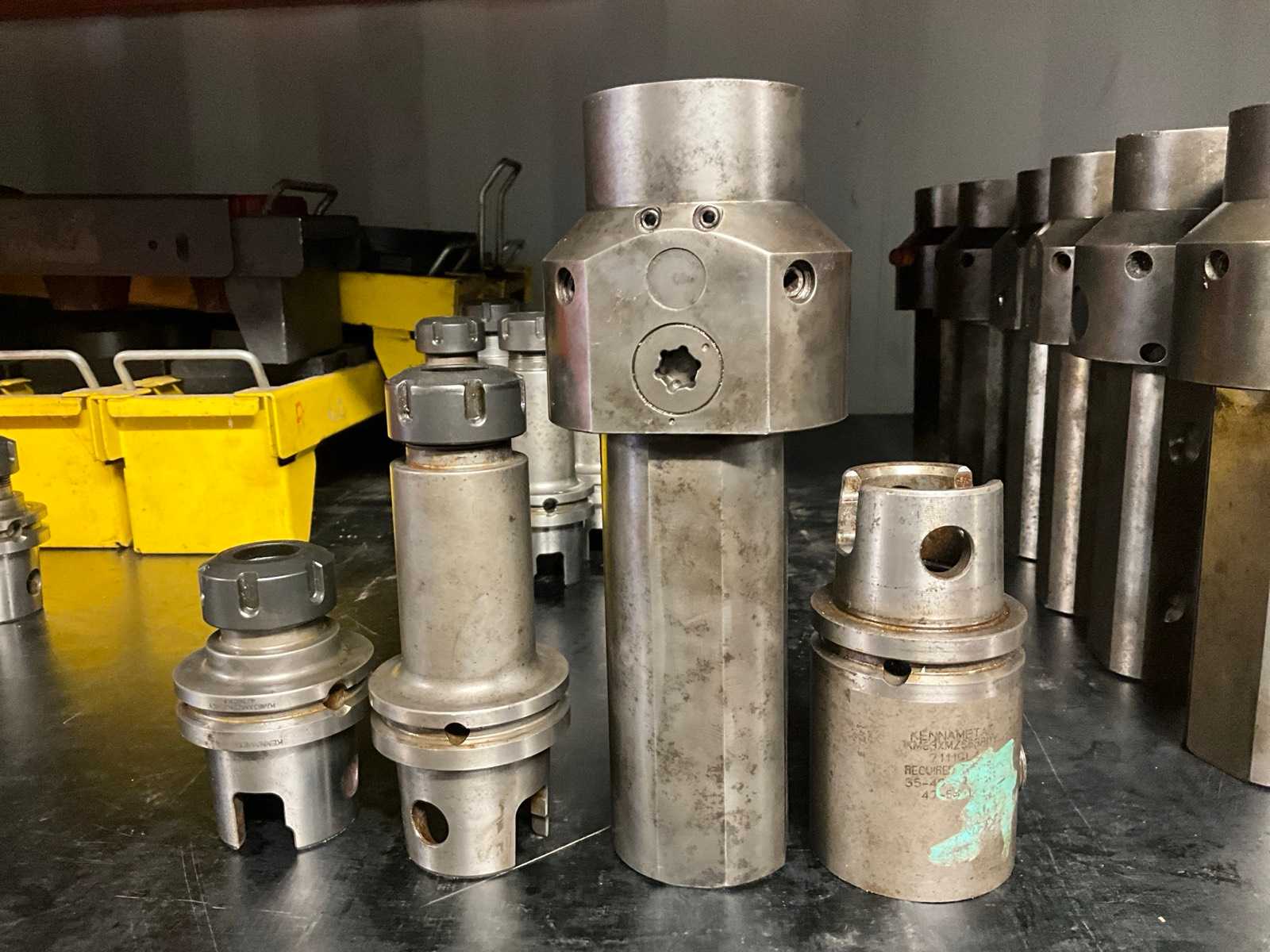

23 pieces, various manufacturers such as WTO/EWS Driven holders suitable e.g. for EMCO lathes Tool interface hpts. Square transverse and boring rod Transport dimensions: 1,200 x 800 x 400 mm, approx. 60 kg

Unused in box

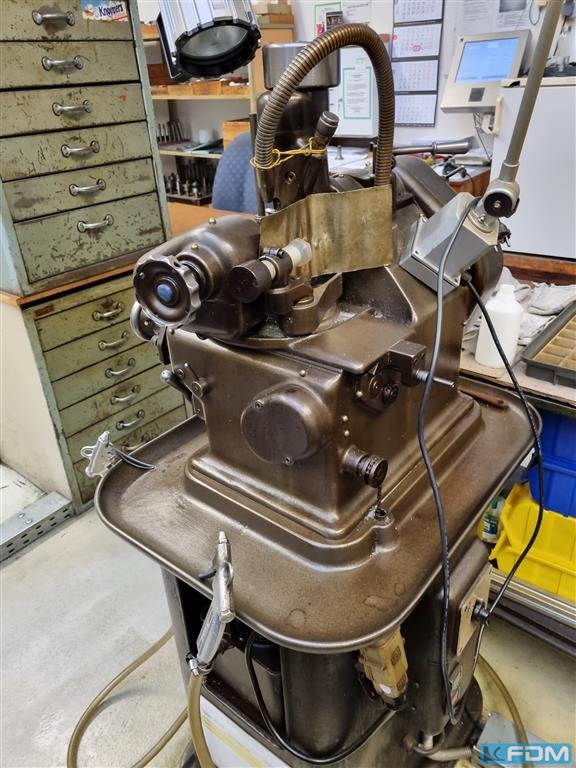

min. grindable saw blade diameter:16 mmmax. grindable saw blade diameter:315 mmchip pocket:16 mmstroke rate grinding carriage:90-135-200 min.grinding wheel diameter:160 mmgrinding spindle speed:2800 u. 5200 U/minfeed rate pro saw blade rotation:0,05; 0,10; 0,15; 0,20 mm100 % before loadingwarranty:noneone used circular saw sharpener make WMW-Königsee, type SWSK 315, year of production

PEDESTAL:. - Hole pattern for robot : Kuka low / medium load :. DIMENSIONS / WEIGHTS:. - total height:1200 mm - total weight approx.:905 kg

turning diameter:570 mmturning length:- mmcontrol:- Diameter of rotation above the bed slide:360 mmMaximum width:2.000 mmrevolutions per minute:max. 2500 U/min:11 kWmax. longitudinal feed:7,5 m/minmax. transverse feed:7,5 m/minrapid traverse longitudinal:12 m/minrapid traverse cross:15 m/minPinole diameter:95 mmPinolenhub:220 mmPinolen intake: MK 5 weight of the machine ca.:2,97 tdimensions of the machine ca.:3,8m x 1,3m x 2m mTechnical description:- Tool turret - automatic - 8-fold (see also options) - CAPTO Revolver Disc- Machine bed - made of perlite casting GG-26- high stiffness due to strong ribbing- Bed slides - guideways hardened and ground- automatic lubrication of the bed rail- Reitstock - manual- Quick clamp- Operator station - two movable handwheels on the operator panel- a movable handwheel- Control - "Siemens 828 D" CNC control- Siemens "Comfort" (including Shopturn and re ...

Equipped with underbuilt Fronius cooling unit, without torch/cables
