boring mills and machining centers used for sale (3,251)

For sale is an elumatec SBZ 150 CNC profile machining center, designed for the efficient processing of aluminum, steel and plastic profiles. The machine is ideal for applications in window, door and façade construction as well as for industrial profile processing. The elumatec SBZ 150 has a powerful 15 kW high-frequency spindle from the manufacturer Omlat with a speed range of 12,000 to 22,000 rpm, which enables precise milling, drilling and tapping work. The spindle is controlled by a Control Techniques Unidrive frequency converter, which ensures infinitely variable speed control. The machine is equipped with a CNC control system from elumatec and offers a clear user interface with a separate control panel, screen, keyboard as well as emergency stop and hand controls. Several pneumatic clamping devices enable the profiles to be securely fixed during machining. The system also inc ...

x-travel:600 mmy-travel:580 mmz-travel:530 mmdistance spindle center to column:630 mmdistance spindle center to table:100-600 mmmilling feed range:1-10.000 mm/minmax. table load:200/100 kgmax. tool weight:8 kgpositioning accuracy:+/- 0,01 mm:8000/15000 1/minspindle drive:7,5/11,5 /5,5 kWrepeating accuracy:+/- 0,008 mmweight of the machine ca.:7,4 / 7,65 tBrand-new CNC vertical machining center with CNC control FANUC or HEIDENHAINWarranty: 12 monthsMore information can be found in the Appendix.

Comes with various tools.

Electric taps for M3 - M16 threads, angle adjustable.Quick-change chuck with slipper clutch. Adjustable via display: variable speed, adjustable depth, material selection, choice ofmain direction of rotation, thread selection.Thread diameter M3 - M16 metricSpeed infinitely variable 312 rpm.Working range max. 1100 mmWeight 25 kg

Automatic cooling system Drilling capacity 35 mm, drilling depth 210 mm Adhesive force 16000 N Speed up to N = 830 rpm Power 1600 kW in case Unused

Data Sheet — DANUMERIC 440 Drilling (A60 steel)40 mm Drilling (GG22 cast iron)50 mm Threading A60 Steel: M36 · Cast Iron GG22: M45 Cone SpindleSA 40 Distance from spindle nose to table95 – 705 mm Nose-spindle-to-ground distance995 – 1605 mm Maximum table height900 mm Z strokes(sleeve) 200 mm · W 410 mm Fast X/Y speeds 7.5 m/min · Z 5 m/min · W 3 m/min PrecisionPos. X/Y ±0.075 mm · Rep. ±0.03 mm · Z pos. ±0.05 mm Spindle / feeds15–2800 rpm · 5–2000 mm/min Max torque spindle250 Nm Radial 5000 N forces · Axial 5500 N · Sleeve 12000 N Power supply / load400 V/50Hz · 24V control · 13 kVA Charging Motors (kW)Spindle 5.5 · X 0.25 · Y 0.25 · Z 4.5 · W 2.5 Weight (depending on table)2610 / 2700 / 2900 kg Tables / dimensions600×1200 · 750×1200 · 600×1800 mm Comes with various tools and documentation

Drilling capacity in steel 40 mmProjection 230 mmDrilling stroke 130 mmHolder MK 4 MKTable size 400 x 315 mmSpeed 105 - 1257 rpmTotal power requirement 2.55 KWMachine weight approx. 0.32 tDimensions L x W x H 0.8 x 0.6 x 1.95 m

Drilling and milling machine withpowerful 2-speed motor.Recording MC 3 - B16. Drill chuck 3 - 16 mm.Left / right switch.Spindle protection. Fine tuning. Ejection wedge. Threaded Rod for Tool ClampingRelated Tools.Drilling capacity in steel 32 mmProjection 200 mmDrilling stroke 70 mmCapacity finger milling machine 16 mmSpindle holder MK3 Spindle speeds 50 - 3000 rpmTable adjustment transverse 220 mmTable adjustment longitudinal 425 mmTable clamping surface 700 x 210 mmConnection voltage Vmax. Distance between work table and spindle nose 470 mmTotal power requirement 1.5 kWMachine weight approx. 230 kgDimensions approx. 0.75 x 1.05 x 1.2 m Condition: never used / new (5)

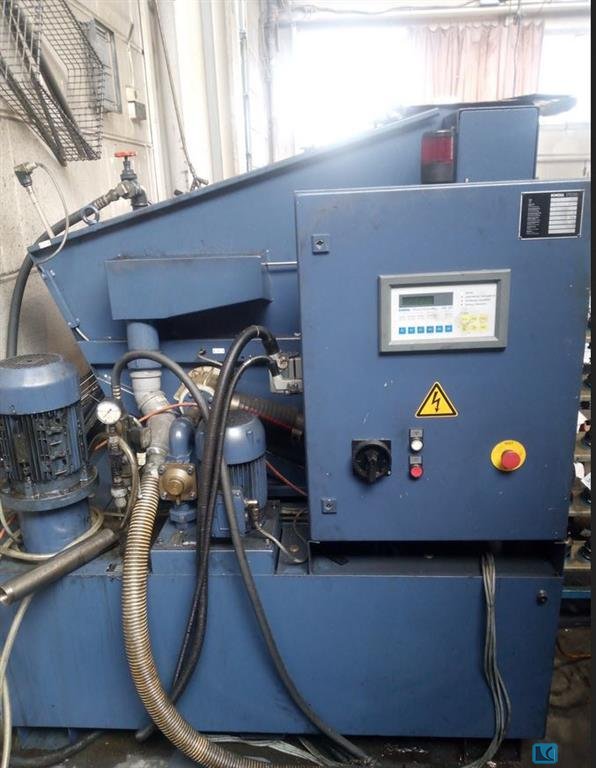

Coolant system with belt filter, chip conveyor, control Heidenhain

Column drilling machine with: automatic feedtapping function.Digital depth display2 stage motorSpindle protectionSwivel tableLED lightingCoolant systemDrilling capacity in steel 40 mmProjection 350 mmDrilling stroke 180 mmSpindle holder MK 4 MKTable: 560 x 560 mmColumn diameter 140 mmSpeed 50 - 1450 rpmFeeds 0.1 - 0.2 mm/revTotal power requirement 1.5 kWMachine weight approx. 580 kg Condition: never used / new (5)

Unused, handbook available

drilling capacity: 35 mm; drilling depth: 210 mm; speed to N =: 830 rpm; adhesion: 16000 N; power: 1600 kW; connection: 230 V; description: equipped with automatic cooling system; unused; 5637;

Column drill with: ARBO/CE approved protective cover.Quick-release chuck with pin. Tilting work table. Deep stop. Ejection wedge. Drilling capacity in steel 32 mmThroat depth 200 mmDrilling stroke 120 mmSpindle holder MK 4 MKTable: 290 x 270 mmColumn diameter 92 mmSpeed 150 - 2450 rpmTotal power requirement 1.1 kWMachine weight approx. 95 kgDimensions L-W-H 0.66 x 0.8 x 1.7 m Condition: never used / new (5)

Pneumatic tapping machinedesign with an adjustable angle, horizontal tapping possibleTapping machines for M3 - M12 threads, angle adjustable.6 quick-change chuck with slipper clutch. Thread diameter M3 - M12 metricSpeed infinitely variable 400 rpm.Working pressure 6 - 8 barWorking range max. 1100 mmWeight 20 kgSuitable clamping table Lot 224, 254 or 265. Condition: never used / new (5)

Tapping machine, drilling and tapping

Column drilling machine with- left/right rotation- Machine light- Coolant- Emergency stop deviceDrilling capacity in steel 50 mmProjection 365 mmDrilling stroke 230 mmSpindle diameter 60 mmSpindle holder MK 4Spindle speeds 54 - 1032 rpmNumber of speeds 9 stepsTable clamping area 620 x 520 mmTotal power requirement 3.5 kWMachine weight approx. 0.9 tDimensions approx. 1.2 x 0.8 x 2.45 mCondition: untested (6)

drilling capacity: 35 mm; drilling depth: 210 mm; speed to N =: 830 rpm; adhesion: 16000 N; power: 1600 kW; connection: 230 V; description: equipped with automatic cooling system; unused; 5637;

EquipmentTwo-stage gearbox via flat belt (no longer plastic gears)Infinitely variable speed rangePinning fine feed via switchable handwheelDigital quill depth indicatorRight-counterclockwise rotationRobust dovetail guides with adjustable wedge stripsBellows covers for the guidewaysAdjustable control panelChip protection with safety circuitMachine base frame optional.Drilling capacity in steel 25 mmProjection 185 mmDrilling stroke 50 mmSpindle holder MK 3 Spindle speeds 50 - 2500 rpmTable adjustment transverse 178 mmTable adjustment longitudinal 480 mmTable clamping surface 700 x 180 mmConnection voltage 230 VTotal power requirement 0.75 kWMachine weight approx. 160 kgDimensions approx. 0.75 x 0.8 x 0.9 m Condition: never used / new (5)

Manufacturer: SCHLUMBERGERModel: RF7-513Year: 1979Type: Industrial DrillPress Industrial drill press for drilling and general machining operations in mechanical workshops. Machine equipped with a cross table with longitudinal and transverse displacements, suitable for general mechanical and maintenance work. Main features:- Maximum drilling capacity steel: Ø 32 mm- Spindle taper: CM4- Barrel stroke: 200 mm- Motor power: 2.5 kW- Number of speeds: 9- Speed range: 125 to 2000 rpm- Table: 510 x 1112 mm- Longitudinal stroke table (X): 575 mm- Ram stroke (Y): 460 mmCondition: Used machine

Specifications BT 6 FREQUENCY Drilling capacity in E 335 0.5 - 6 mm Spindle B 12 Drilling depth 55 mm Radius 177 mm Spindle / Base Plate 135 to 404 mm Base plate 296 x 349 mm T-slot width 12 mm Column diameter 75 mm Total height 810 mm Weight 85 kg Motor frequency-controlled 0.55 kW Grid connection 230 V / 50 Hz Spindle speeds infinitely variable 1,000 - 9,000 rpm Standard packaging A - 89x52x127 cm

Tapping machine Thread diameter 3 - 10 mmSpeed Tool 120 - 600 rpmTable size 250 x 350 mmProjection 250mm Operating voltage 380 VThread length 80 mmTotal power requirement 0.55 kWMachine weight approx. 0.35 tSpace requirement approx. 0.7 x 0.7 x 1.9 m Condition: untested (6)

Design / Function: Tapping / DrillingPower: 1050 WattsAmperage: 5.2 AmpsSpeed: 120 revolutions per minute

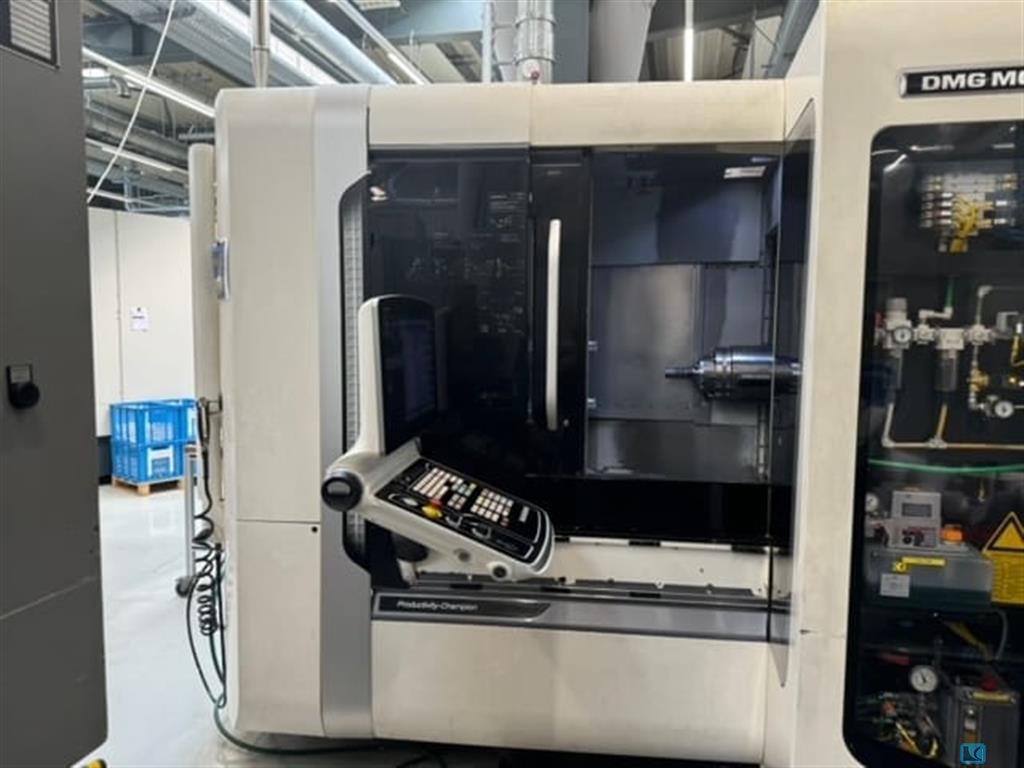

GeneralTwo-spindle turning centre with - 2 cross slides - 2 turrets with 12 positions each (all driven) - main spindle and counter-spindle - 2 C-axis - 2 tool drives - Y-axis on slide 1 - chip conveyor - workpiece-unloading; Control: Fanuc 31i Working areaBar diameter max.50 mmTransport beltTransport belt for finished workpieces outside the machineDMG MORI NETSERVICEDMG MORI NETSERVICE Qualified support by Internet-based remote diagnosticsIoT connectorDMG MORI IoTconnector The IoTconnector allows the use of online services of DMG MORI (e.g. NETSERVICE or MESSENGER on ADAMOS)Special equipmentAdditional bar capacity for main spindle from Ø 50 mm to Ø 65 mm (max. 5.500 RPM) Additional charge for cooling on turret (upgrade to) 50 bar instead of 25 bar

table length: 3000 mmtable width: 4000 mmtable load: 80 tThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 11500 mmy-travel: 4500 mmw-axis: 1600 mmz-axis: 2000 mmspindle diameter: 200 mmRotary table: E25OB23941 2.000x 2.000 mmbed length turntable: 4600 mmtool taper: SK50 : 80 tPlate field size: 10.000 x 15.000 mmtool taper: SK 50 total power requirement: 83 kWweight of the machine ca.: tincl. 15 plates The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

CNC Vertical Machining Center "BRIDGEPORT VMC 800" With track control Heidenhain TNC 410 Year of Make: 2000 Travels: X 800 Y 500 Z 500 Speed range: 0 – 10,000 rpm infinitely variable With the following accessories: Rigid angle table 1000 mm x 500 mm clamping surface Vertical tool changer with 20 magazine positions ( SK 40 ) Full protection cabin with sliding doors and interior lighting Various tool holders SK 40 Electronic handwheel Coolant device with reinforced pump 20 bar Chip conveyor Operating instructions
