sheet metal working used for sale (3,356)

Automated sheet metal storage system manufactured in 2022. This TRUMPF Automated Sheet Metal Production System features a storage height of 7,900 mm and a maximum load per storage location of 3,000 kg. It includes 266 storage locations and supports sheet formats of 3,050 x 1,525 mm. If you are looking to get high-quality automated storage capabilities, consider the TRUMPF Automated Sheet Metal Production System we have for sale. Contact us for further details.

cutting length: 2500 mmplate thickness: 3 mmdistance between columns: 2050 mmblade length: 2650 mmtotal power requirement: 3 kWweight of the machine ca.: 2,5 t- The scissors are equipped with an adjustable stop on the back. stop. Each side is equipped with a millimetre counter, so that the guarantee that the cuts are true to size.- Spring-loaded automatic hold-downs prevent the material from shifting during the cutting process. material during the cutting process.The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet width: 6080 mmplate thickness: 6.0 mmrear stop: 1000 mmcutting angle: 0.5 - 2.0 °down holder: 29 Stkno. of strokes: ca. 10 Hub/mintotal power requirement: 22.0 kWdimensions of the machine ca.: 7300 x 2150 x 2750 mmweight: 25500 kg Current list price: approx. 150.000 eurosFeatures:- Electro-hydraulic, slide-guided sheet metal shear- Electro-hydraulic cutting angle adjustment- Electro-hydraulic cutting gap adjustment- Electrically driven backgauge with ball screws- Manual central lubrication- Cut line illumination- Ball bearings in the table- Fold-up finger guard, 1.000 mm- Side stop with T-slots, tilting stop, and scale- 5 support arms with T-slots- Photoelectric sensors on the rear of the machine- 1 freely movable foot switch Includes optional equipment:- Pneumatic sheet metal holding deviceThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Manual length adjustment via handwheel with digital display For mounting on any Elumatec single-head saw (right) Max. feed length: 3000 mm Pneumatic parking brake

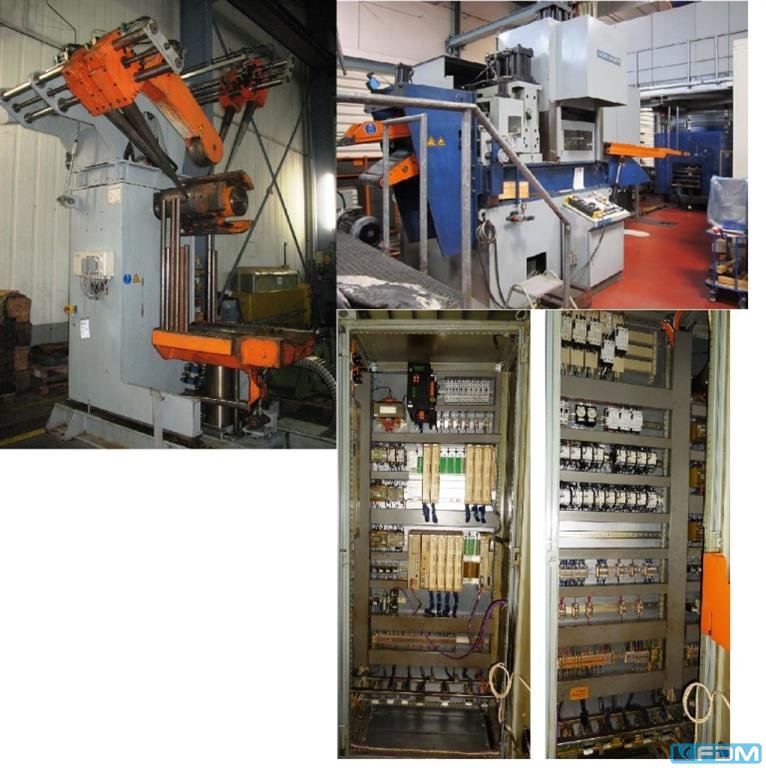

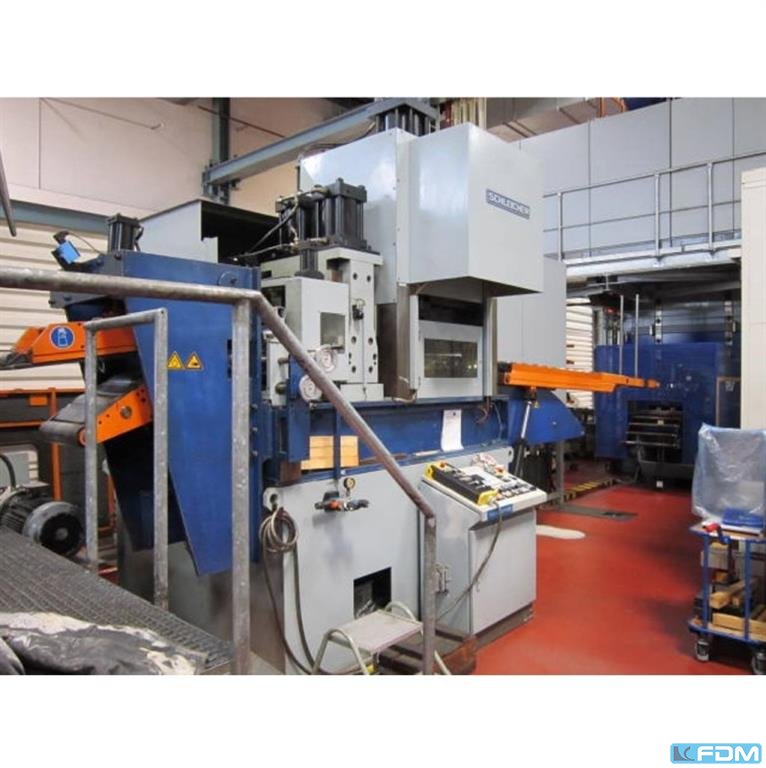

CONTROLS  electronic controls OVERALL SPECIFICATIONS (COIL LINES)  sheet width max.: 200 mm  sheet thickness max.: 4.5 mm  coil weight max.: 0.5 toDECOILER  coil weight max.: 0.5 to  mandrel expansion range from: 250 mm  mandrel expansion range up to: 550 mmLEVELLER UNIT  sheet width max.: 300 mm  sheet width (min): 20 mm  sheet thickness max.: 4 mm  sheet thickness min.: 0.5 mm  material cross section max. (450 N/mm2): 800 mm²  number of leveller rolls: 7   diameter of leveller rolls: 65 mm  number of infeed-/outfeed rolls: 4   diameter of feed rolls: 65 mm  drive power: 1.5 kW  loop controls: yes ELECTRICAL SPECIFICATIONS  mains voltage: 380 V  mains frequency: 50 Hz

CNC Press Brake manufactured in 2024. This DAMAMT WC67K 63T/2500 CNC features a pressing force of 63 tons and a bending length of 2,500 mm. It includes advanced CNC control with 4+1 axes and motorized V-axis crowning for precision bending. If you are looking to get high-quality bending capabilities, consider the DAMAMT WC67K 63T/2500 CNC Press Brake we have for sale. Contact us for further details.

This 7-axis TRUMPF TruBend 7050 (B28) was manufactured in 2022. It features a press force of 500 kN and a bending length of 1,530 mm. The machine includes a dynamic electromechanical drive and a CNC-controlled crowning system for precise bending operations. If you are looking to get high-quality bending capabilities, consider the TRUMPF TruBend 7050 (B28) press brake we have for sale. Contact us for further details.

Key data: 320 t, 6100 mm, 5050 mm

For sale is a powerful and reliable LVD PPEB 320/61 CNC press brake, ideal for precise bending work in sheet metal working. Manufacturer: LVD Model No.: PPEB 320/61 Control: CNC Construction: robust, industrial design Suitable for: heavy and large-format bending work Technical data: CNC-controlled backgauges Hydraulic upper and lower tool clamping system Industry-standard safety equipment 5-axis Press force: 320 t Bending length: 6,100 mm Stand width: approx. 5,050 mm Stroke: approx. 250mm Installation height (table plunger): approx. 500 – 570 mm Condition: The machine is in a used, operational condition. Regular maintenance was carried out. Viewing under power possible by arrangement. Areas of application: Steel and metal construction Mechanical Engineering Series and individual part production Production of large-format sheet metal parts Pros: High p ...

For sale is a high-performance DIMECO LINAPUNCH MC-F CNC coil punching line for automated processing of strip material directly from the coil. The system is particularly suitable for the cost-effective production of perforated sheets, mounting plates, mounting rails, ventilation components and customer-specific stamped parts in medium and large quantities. Direct processing from the coil significantly reduces material consumption, set-up times and unit costs. LINAPUNCH technology combines the flexibility of a CNC punching machine with the productivity of a continuous coil line. The system works with standardized thick-turret tools and enables highly productive production processes. Technical data Manufacturer: DIMECO Type: LINAPUNCH MC-F Machine Type: CNC Coil Punching Machine/Punching Line Control: CNC, Siemens Simostar 370 Coil Processing Coil inner Ø: 508/610 mm Coil out ...

Max. saw blade diameter: 500 mm Max. feed length: single 650 mm (3 fold feed possible) Pneumatic material feed Pneumatic saw feed Minimum quantity spraying device Unit counter with automatic switch-off Digital display of feed length Cutting height can be quickly adjusted via 4-stage selector switch Including chip extraction 800 kg

Max. bending capacity: 220 kN (22t) Tool height: 120 mm Weight: approx. 500 kg

For sale is a new ROUNDO PASS 205 4-roll sheet metal bending machine from the Swedish manufacturer ROUNDO AB. The machine was delivered in 2011 and has a working size of 3000 × 4 mm. Machine data: Manufacturer: ROUNDO AB, Hässleholm, Sweden Model: PASS 205 wCNC² Machine Type: 4 Roll Sheet Metal Bending Machine Machine No.: 06764 Year of delivery: 2011 Operating hours: 216 h Capacity: 3000 × 4 mm Control: CNC - Hydraulic roller adjustment - Top roll diameter: Ø 205 mm - Pinch roll diameter: Ø 205 mm - Side roll diameter: Ø 160 mm - Motor power: 5.5 KW Minimum bending diameter: approx. 225 to 290 mm (strongly dependent on sheet thickness and material properties; usually 1.1 to 1.4 times the upper roll diameter) Weight: approx. 5,500 kg Features & Features: -Modern CNC control for precise and reproducible bending processes -Programmable bending programs  ...

This 3-axis TRUMPF TruLaser 5030 fiber L76 FMC was manufactured in 2022. It features a working format of 3,000 x 1,500 mm and a powerful 6000W solid-state disk laser. The machine includes an automatic longitudinal pallet changer and advanced cutting capabilities, such as adaptive lens systems and automatic nozzle changers. If you are looking to get high-quality fiber laser cutting capabilities, consider the TRUMPF TruLaser 5030 fiber L76 FMC machine we have for sale. Contact us for further details.

- New Hydraulic hose- New Sealings- New Covers- Optional Retrofitting possible  - New Controller - New SPS - SIEMENS - Main Power 28 kW- Steel telescopic covers- CE-Safety fence with door  - Optional tooling for Parabolic 1200 mm- Old owner machined 3 mm aluminum parts - Commisioning, Training, Tool, Installation Possible

Plasma cutting machine manufactured in 2020. This PLASMACUT 3015T features a cutting area of 3,020 × 1,520 mm and a maximum plate thickness of 50 mm. It includes a robust gantry drive system and operates with a Hypertherm Powermax 105 Sync plasma power source. If you are looking to get high-quality plasma cutting capabilities, consider the PLASMACUT 3015T machine we have for sale. Contact us for further details regarding this machine.

CNC shearing machine manufactured in 2024. This GEKA HYDRACROP 165/300 SD features a punching power of 165 tons and a maximum capacity of Ø 40 x 30 mm or Ø 34 × 34 mm. It includes five workstations for various operations such as punching, shearing, and notching. If you are looking to get high-quality shearing capabilities, consider the GEKA HYDRACROP 165/300 SD machine we have for sale. Contact us for further details.

CNC punching machine manufactured in 2007. This AMADA EMZ 3610 NT features a press force of 300 kN and a travel distance of 2500 mm in the X-axis and 1525 mm in the Y-axis. It has a maximum material thickness capacity of 4.5 mm and a stroke rate of 1000 strokes per minute. If you are looking to get high-quality punching capabilities, consider the AMADA EMZ 3610 NT machine we have for sale. Contact us for further details.

Hydraulic shearing machine manufactured in 2002. This HERA TS 2000x6 features a maximum sheet thickness of 6 mm and a cutting length of 2080 mm. It operates with a stroke rate of 18 strokes per minute and is powered by an 11 kW motor. If you are looking to get high-quality shearing capabilities, consider the HERA TS 2000x6 machine we have for sale. Contact us for further details.

Press brake manufactured in 2018. This IBETAMAC 3200 100T features a pressing force of 100 t and a bending length of 3,200 mm. It includes controlled axes for X and Y, along with safety equipment such as additional side safety lasers. The machine is practically unused, fully functional, and available for testing. If you are looking to get high-quality bending capabilities, consider the IBETAMAC 3200 100T machine we have for sale. Contact us for further details.

Press brake manufactured in 1997. This IMAL E3A 100/33 features a press force of 100 tonnes and a bending length of 3,300 mm. With a motor power of 11 kW and a machine weight of 9,700 kg, it is designed for robust performance. If you are looking to get high-quality bending capabilities, consider the IMAL E3A 100/33 machine we have for sale. Contact us for further details.

Press brake manufactured in 2001. This IMAL SMALL 835/25 features a press force of 25 tonnes and a bending length of 835 mm. It is equipped with Delem DM51 CNC control for enhanced precision. If you are looking to get high-quality bending capabilities, consider the IMAL SMALL 835/25 machine we have for sale. Contact us for further details.

Press brake manufactured in 2019. This Vimercati PHSY 30X1250 features a pressing force of 30 tons and a bending length of 1,250 mm. It includes an X-axis travel of 400 mm and an R-axis travel of 130 mm. If you are looking to get high-quality bending capabilities, consider the Vimercati PHSY 30X1250 machine we have for sale. Contact us for further details.

This 3-axis TRUMPF TruMatic 6000-1600 fiber was manufactured in 2022. It features a maximum laser power of 3,000 W and a punching force of 180 kN, with a maximum punching frequency of 917 strokes/min. The machine has a large working area, allowing for combined punching and laser processing. If you are looking to get high-quality punching and laser cutting capabilities, consider the TRUMPF TruMatic 6000-1600 fiber machine we have for sale. Contact us for further details.

Key data: 2 mm

Machine Type: Force Former Manufacturer: Eckold Type: KF324 Year of Make: 2010 Condition: used / very good, is still on the delivery pallet and was used for less than 10 hours Offer will only be sent if a complete imprint is provided! Price VB Location Warstein , Germany Reference number M-ECK-0826 DESCRIPTION We offer you a force former from the manufacturer Eckold including 3 tool sets Sheet steel: Up to 2.0 mm thickness Aluminum: Up to 2.5mm thickness RVS (stainless steel): Up to 1.5 mm thickness Projection: 340 mm horizontally and 245 mm vertically Strokes: Approx. 400 strokes per minute Weight 505kg Tools FWA60S FWR60S PFW80S Availability: immediately Our offer is aimed at tradespeople who are registered in the sense of the Trade Regulation Act according to §14 GewO. The offer is subject to change, subject to prior sale. Please provide  ...

Offer 26220 Technical data: - Cutting length 3050 mm - Cutting thickness at 400 N/mm² strength 16 mm - Cutting thickness at 400 N/mm², strength up to 1000 mm, length 18 mm - Cutting angle 0.5 - 3 ° - Number of sheet hold-downs 18 pcs - Stroke rate 10 - 23 min - Mot. Back gauge up to 1000 mm - Rear area protection with light barrier - Front angle stop 1000 mm - HSLX version: - CNC control HACO SC 5 controller when entering the sheet thickness in mm - Autom. Cutting angle adjustment according to sheet thickness - Cutting length limitation - Autom. Positioning of the backgauge (8 programs – 80 sets) with - Digital display and autom. Backgauge retraction - Drive 400 V / 22 kW - E - Footswitch - Space requirement without support arms approx. W 4500 x H 2250 x D 2200 mm - Weight approx. 14500 kg

Auction-ID: A1-49382-14

PRODUCT (PROFILE, TUBE)  external diameter min.: 25 mm  external diameter max.: 76 mm  wall thickness min.: 0.7 mm  wall thickness max.: 3.25 mmLINE CHARACTERISTICS  welding process: HF inductive   sawing process: travelling   speed max.: 100 m/minELECTRICAL SPECIFICATIONS  mains power supply: 680 kVATechnical data & highlights:System length: approx. 130 mStaff requirements: 6 employees for operationWelding process: High-frequency welding up to 400 kHzInduction welding process: Power up to 250 kWAdvantages:Robust and reliable design – suitable for continuous industrial operationPrecise welding quality thanks to state-of-the-art high-frequency technologyIdeal for manufacturing pipes in various dimensions-Pipe welding machine: Abbey Etna-Strip processing + saw VAi Seuthe-Rolling mill Carl Wetzel-Induction welding system: Rittal SK3215.100, built in 2015- Forming: Pass 1  ...

FEEDSTOCK TUBE  external diameter max.: 90 mm  lenght max.: 14000 mmCHARACTERISTICS DRAWING MACHINE  force: 250 kN  number of parallel trains / strands max.: 3 For Sale: High-Performance Triple Drawing Bench GKZ 250 / 3-19R – Precision, Power & ReliabilityOffered for sale is a Triple Drawing Bench, type GKZ 250 / 3-19R, manufactured by Bültmann Maschinenbau GmbH & Co. KG, a renowned German company known for high-quality tube drawing technology.This system stands out for its robust design, impressive pulling force, and flexible adaptability for a wide range of tube dimensions and materials.Technical DataYear of Manufacture: 1987Manufacturer: Bültmann Maschinenbau GmbH & Co. KGLocation: Hall 7 / 8Floor Space: 6 x 35.5 m = 213 m²Installed Power: 355 kWOperating Personnel: 1 personPerformance SpecificationsNumber of Tubes per Draw: 1, 2 or 3Input Tube Outer Diameter: 8 – 90 mm ...

Capacity: 12mm at 3010mm sheet width, cutting length: 3050mm, max. pressure: 200bar, min./max. cutting angle: 0.5°-3°, number of hold-downs: 18, max. stroke rate: 21strokes/min, squaring arm length: 1000mm, back gauge: 1000mm, working height: 900mm. Dimensions X/Y/Z: approx. 3800mm/1850mm/2030mm, weight: approx. 9000kg. Documentation available. Inspection possible by appointment.
